AR35.10-P-0040-03V Remove/Install Rear Rubber Bushing In Rear Axle Mount

AR35.10-P-0040-03V Remove/install rear rubber bushing in rear axle mount

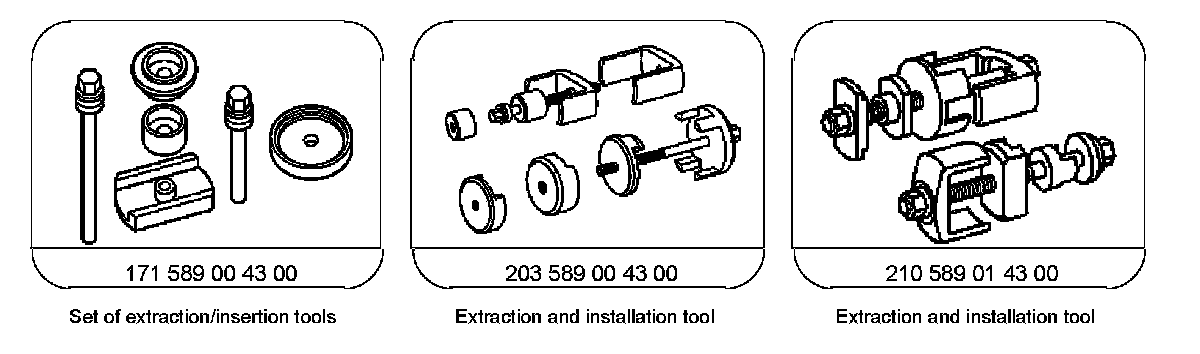

Special Tools:

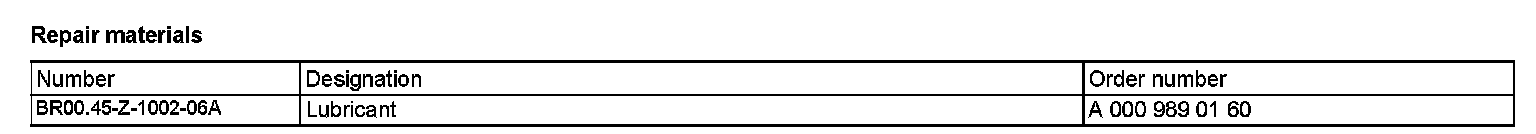

Repair Materials:

Component Identification:

Remove

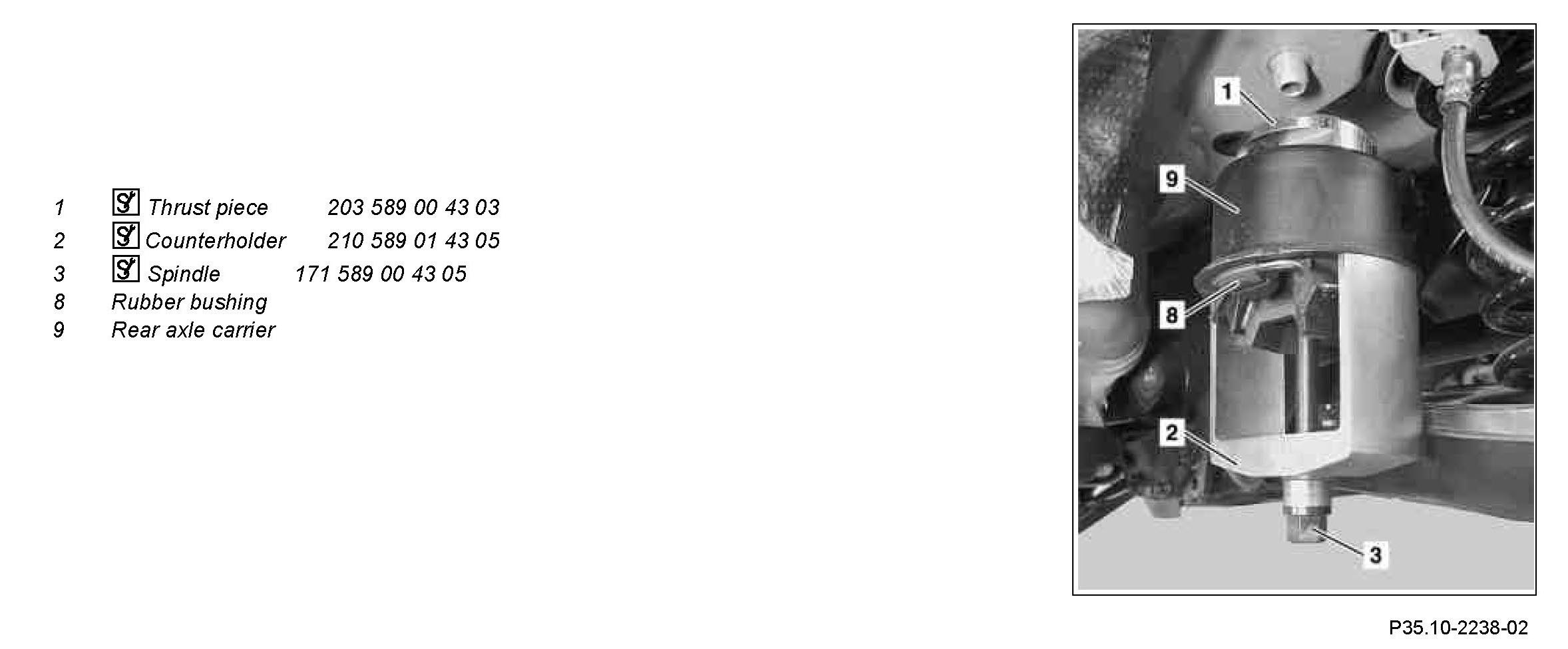

1 Using thrust piece (1), counterholder (2) and spindle (3), press rubber mount out of rear axle carrier (9).

Component Identification:

Install
2 Rub the circumference of the new rubber mount (8) with lubricant.

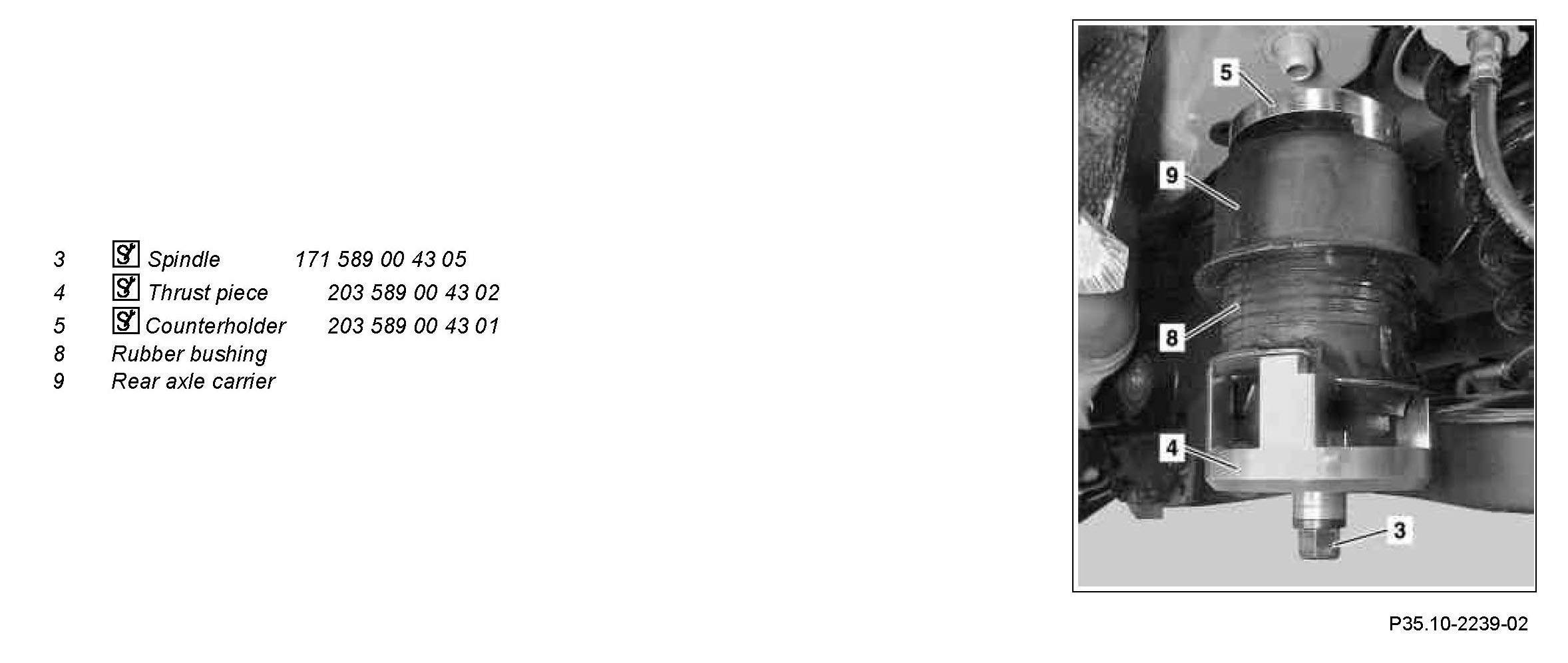

3 Using Thrust piece (4), counterholder (5) and spindle (3), draw the rubber mount (8) into the rear axle carrier (9).
