Procedures

AR33.10-P-0100-03V Prop Front Axle Carrier With Inspection Pit Lift Or Assembly Lift





1 Mount transmission plate for cars (01) onto transmission jack.
Transmission jack
gotis://H_00.10_01.0
Car transmission plate
gotis://A_25/35/49_02.0

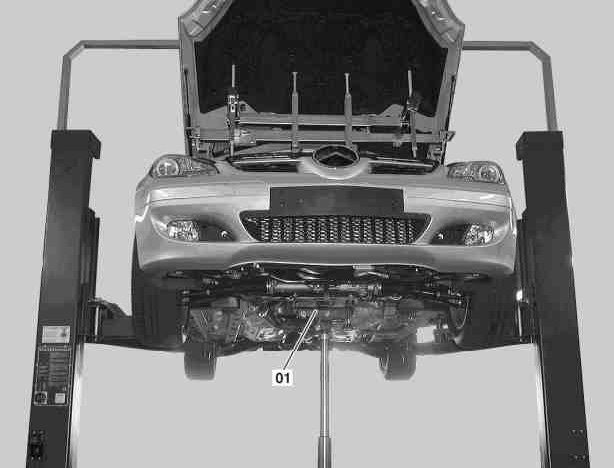

2 Position car transmission plate (01) using transmission lifter under front axle carrier.
3 Secure front axle with tensioning strap to prevent it from falling down.

Illustrated on model 171
