AR32.20-P-0315V Remove/Install Torsion Bar on Rear Axle

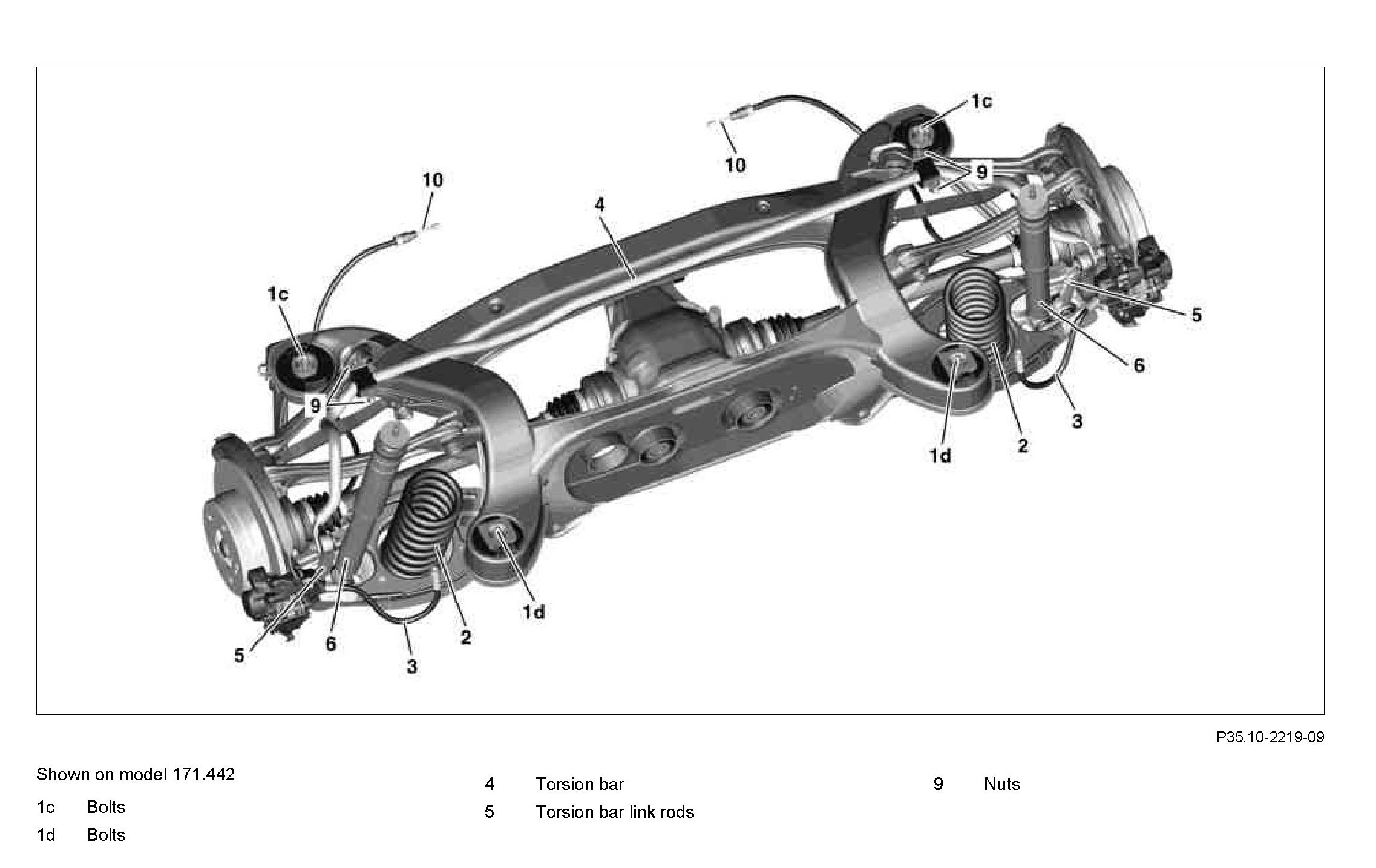

Component Identification:

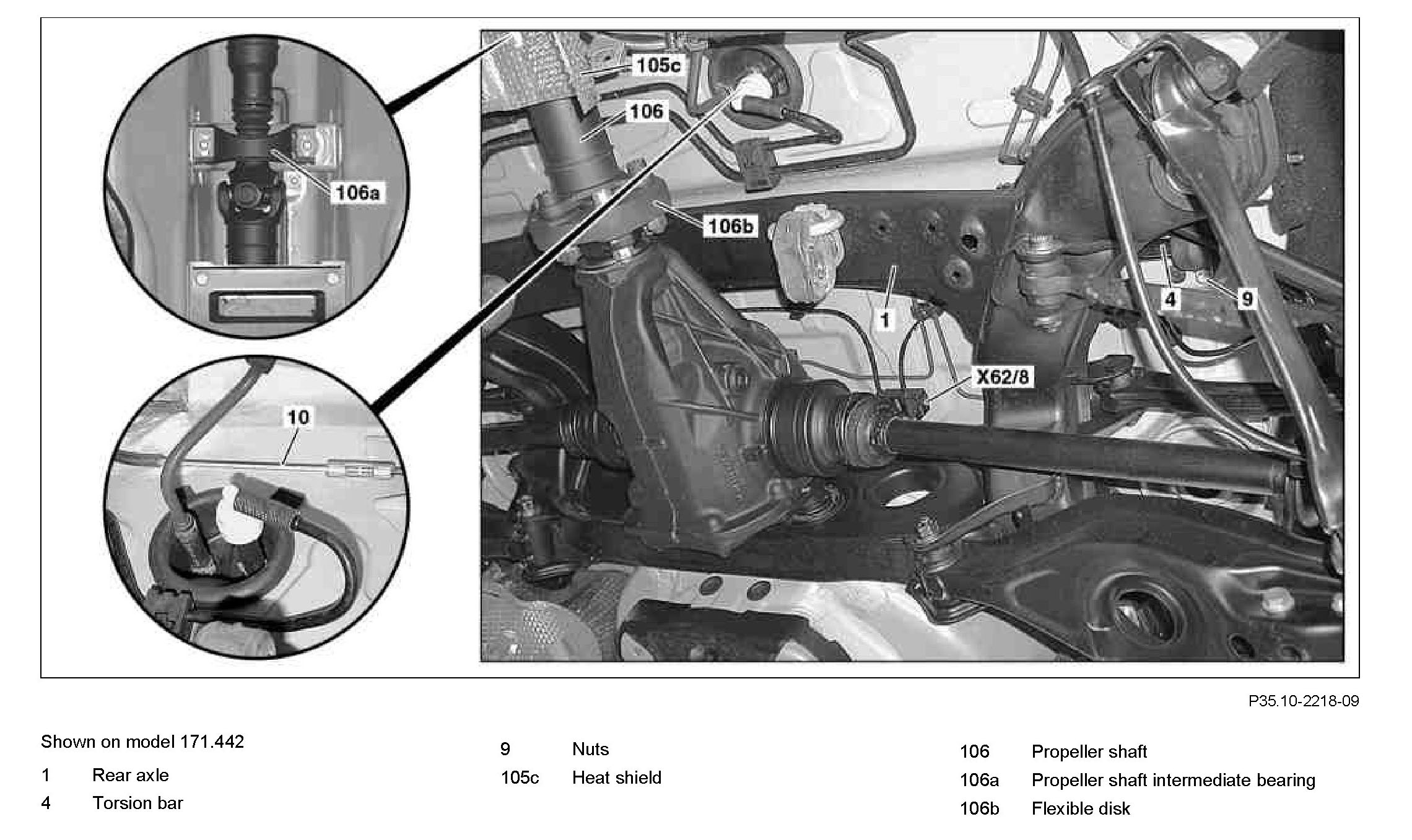

Component Identification:

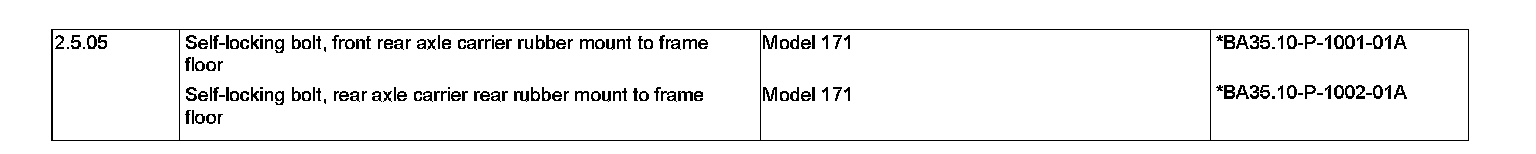

Modification Notes:

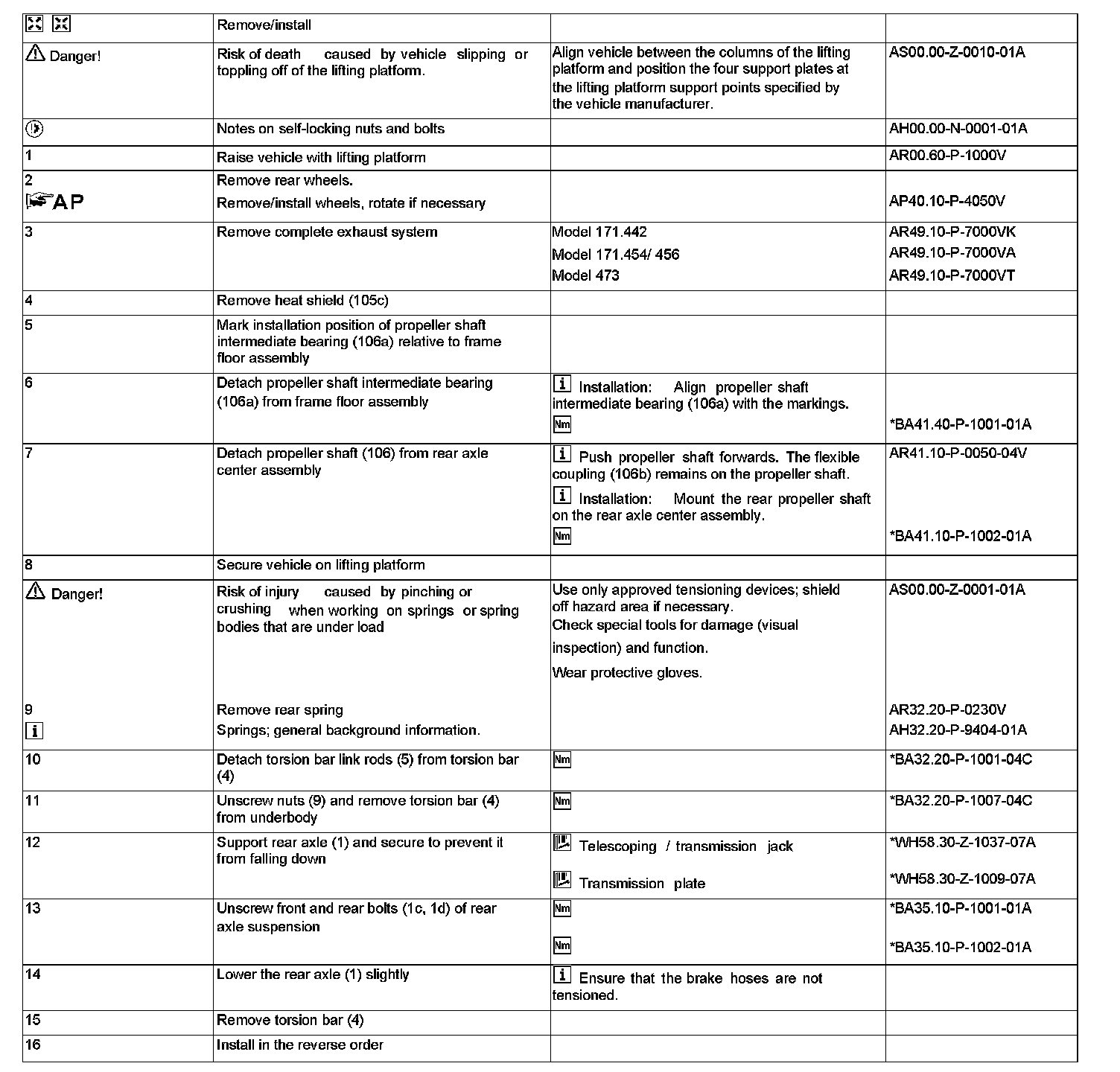

Steps 1 - 16:

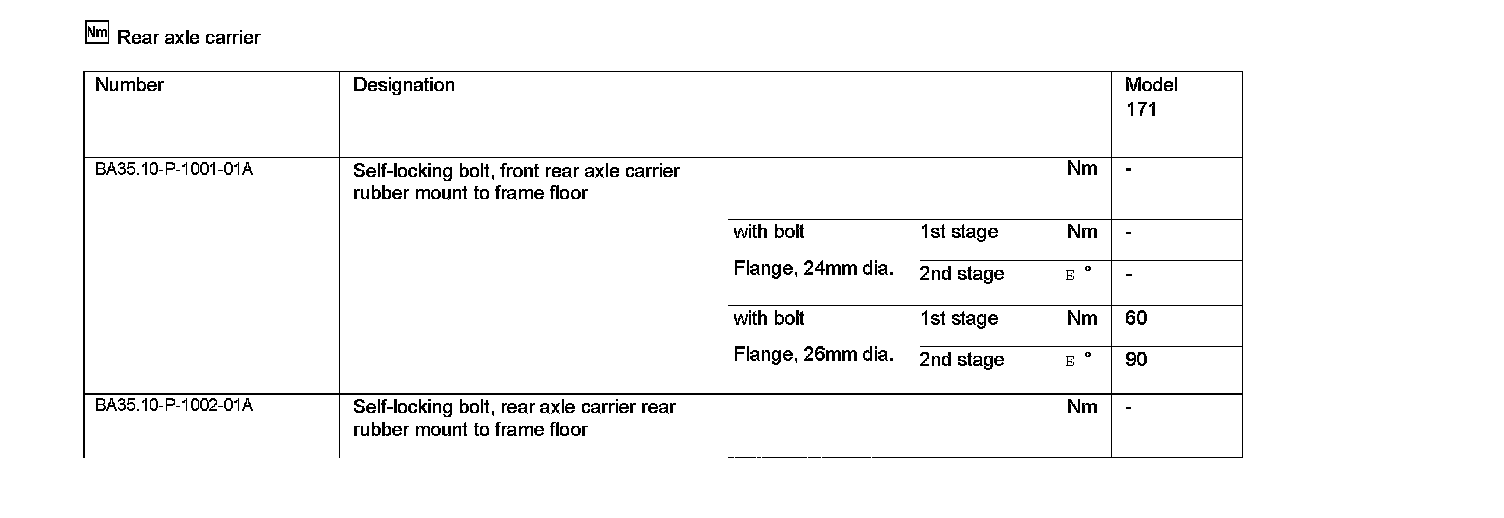

Rear Axle Carrier:

Rear Axle Carrier:

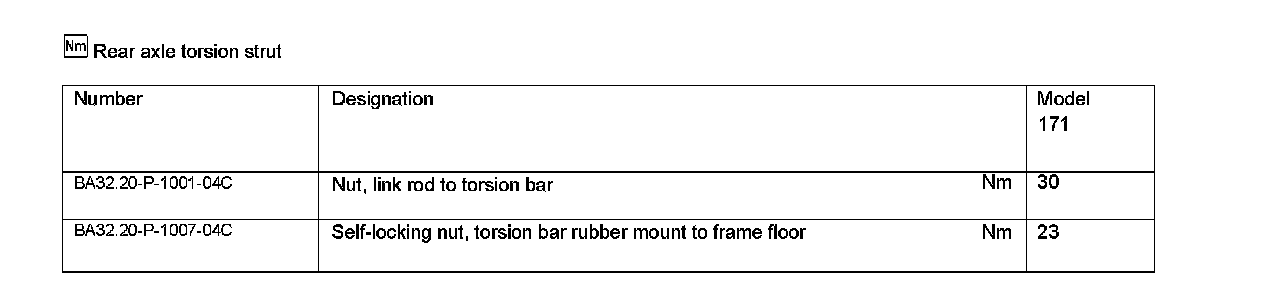

Rear Axle Torsion:

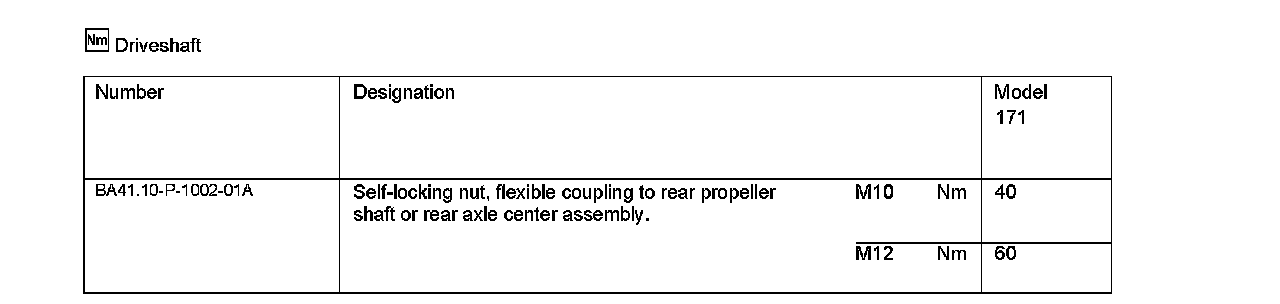

Driveshaft:

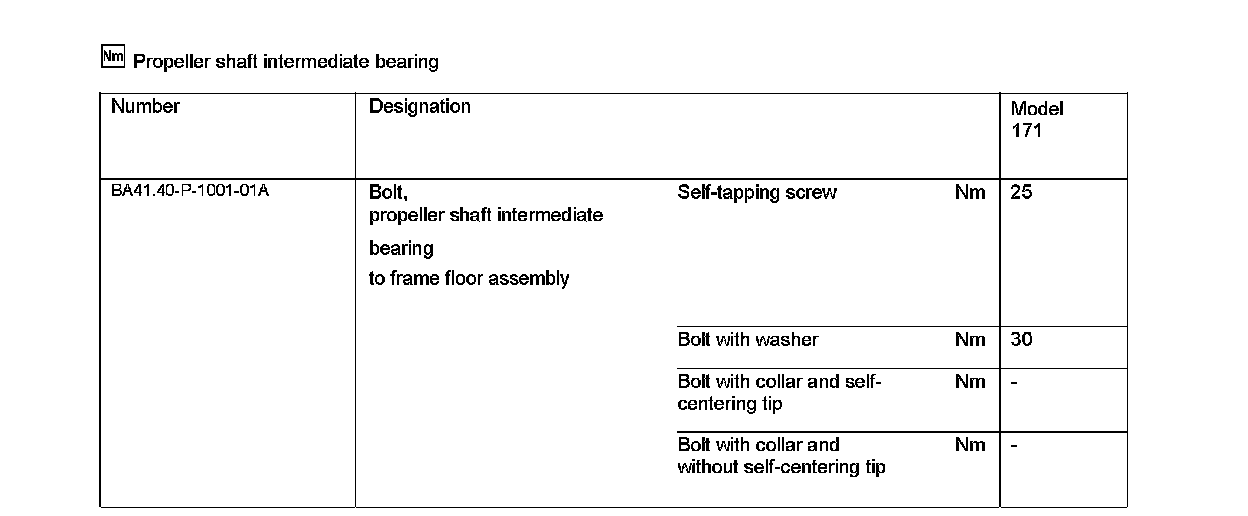

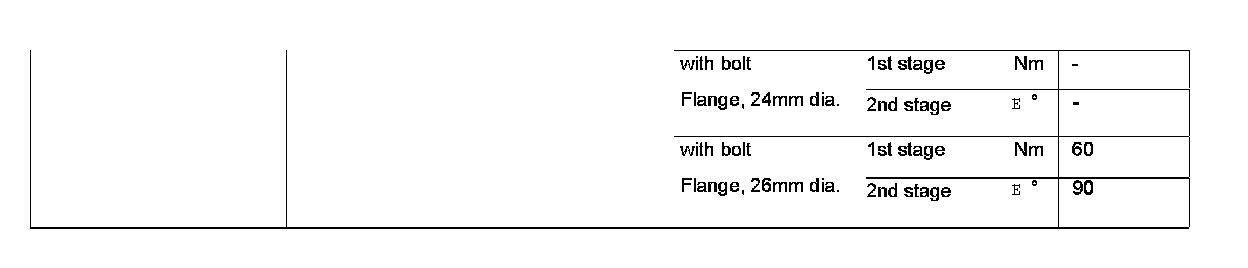

Propeller Shaft Intermediate Bearing:

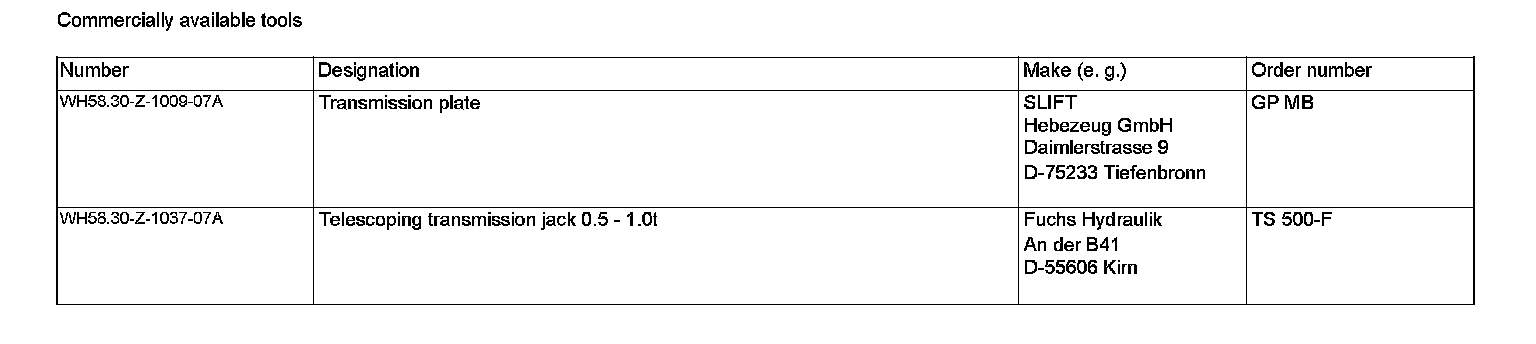

Commercially Available Tools:
