AR32.20-P-0315V Remove/Install Stabilizer Bar on Rear Axle



AR32.20-P-0315V Remove/install stabilizer bar on rear axle

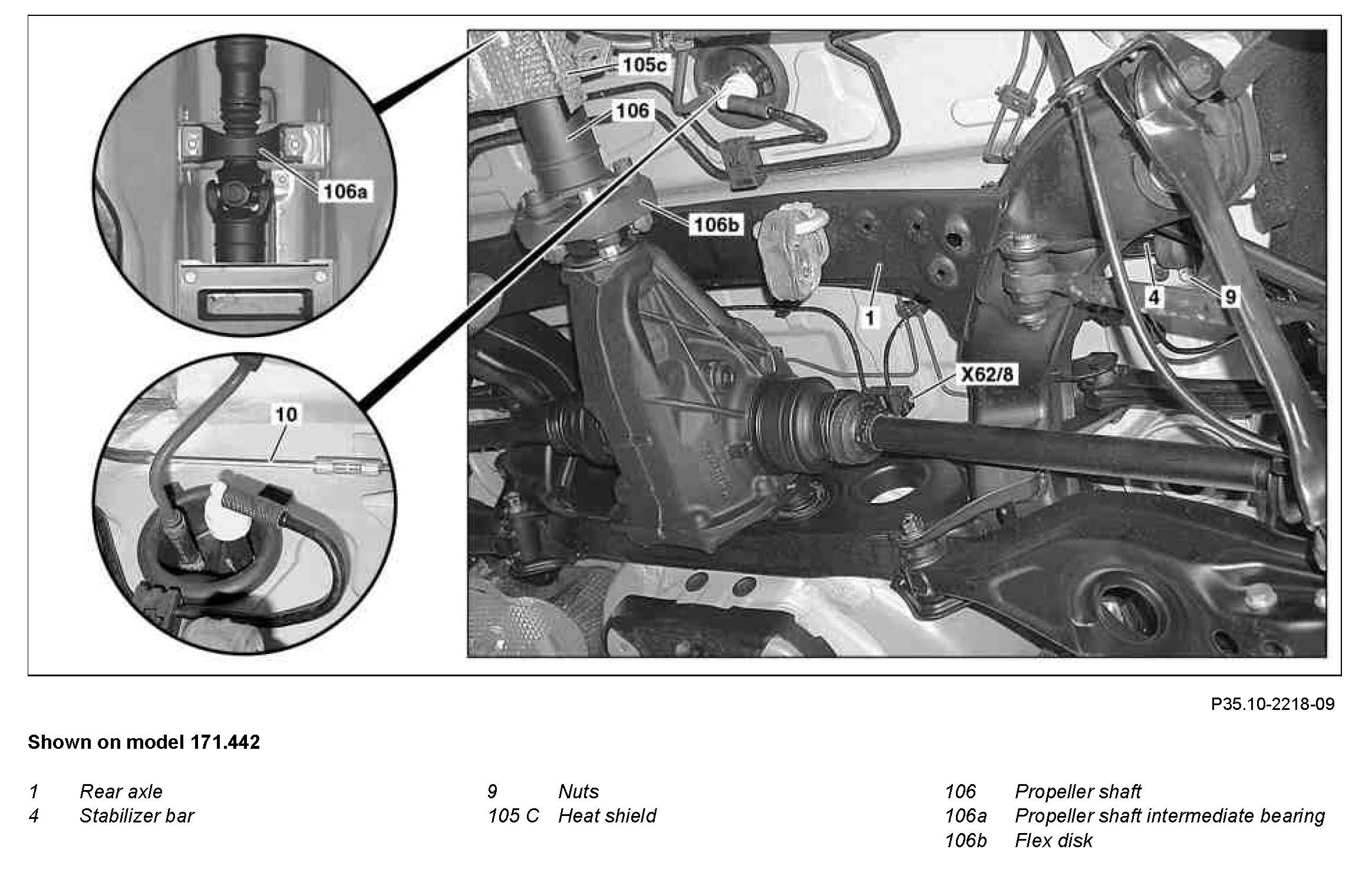

Component Identification:

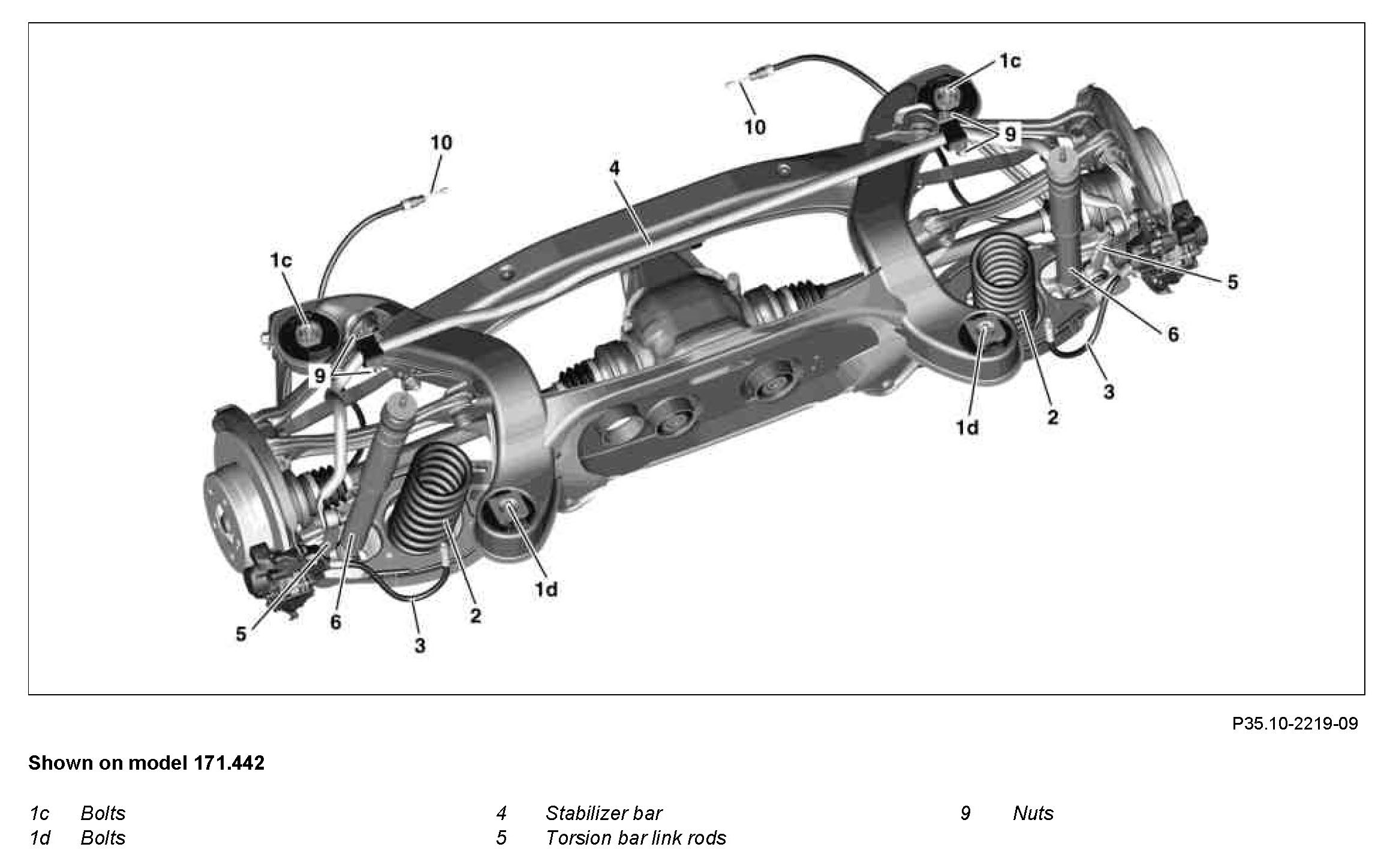

Component Identification:

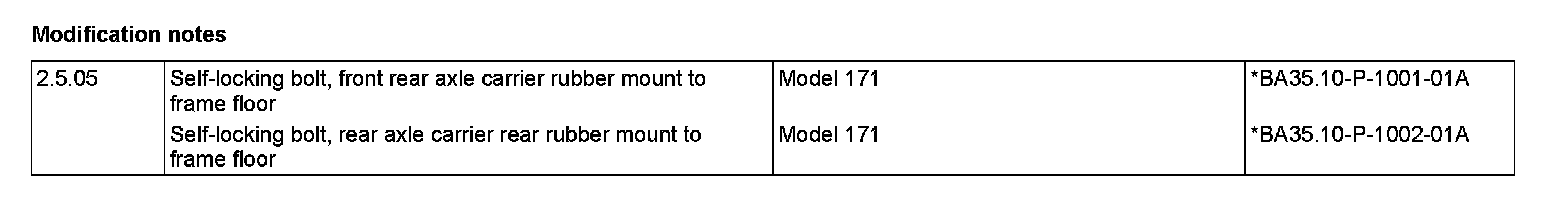

Modification Notes:

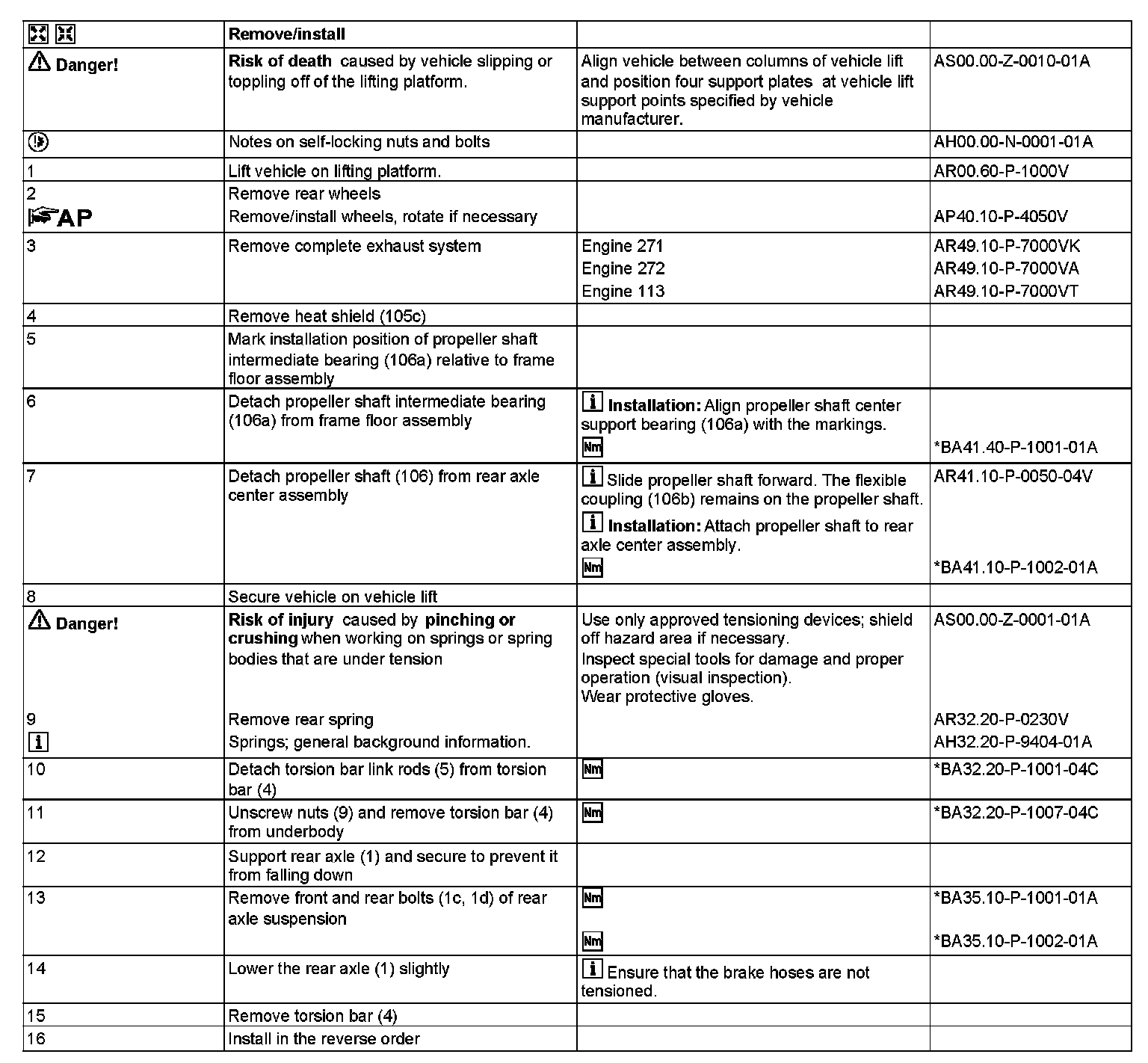

Steps 1-16:

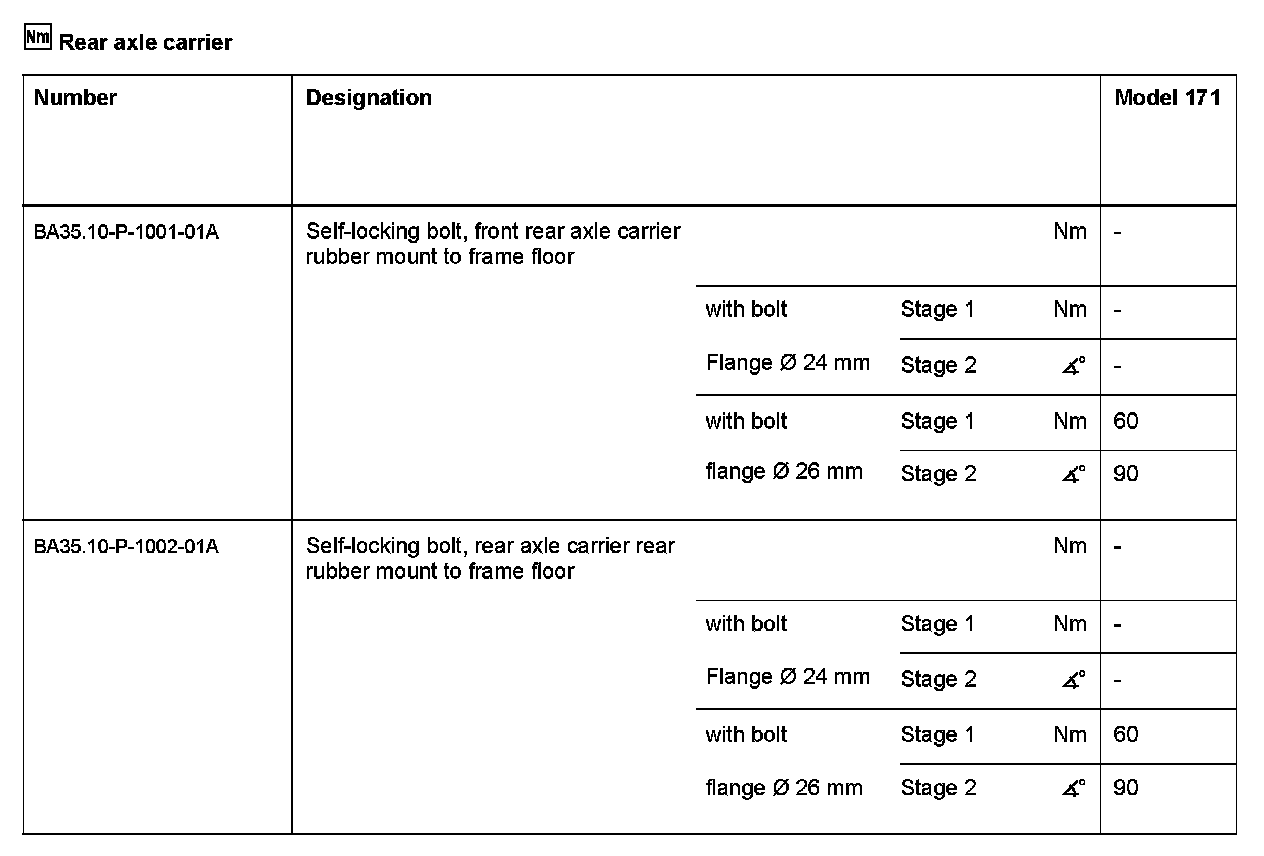

Rear Axle Carrier:

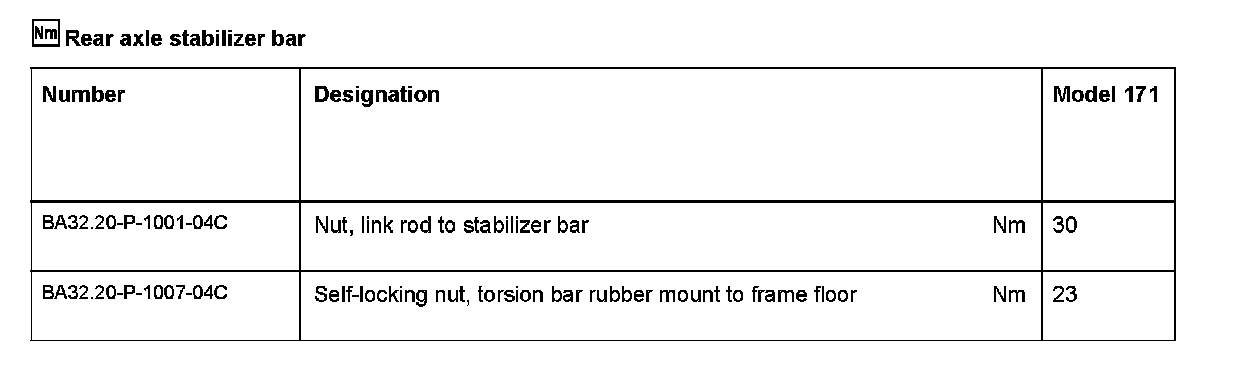

Rear Axle Stabilizer Bar:

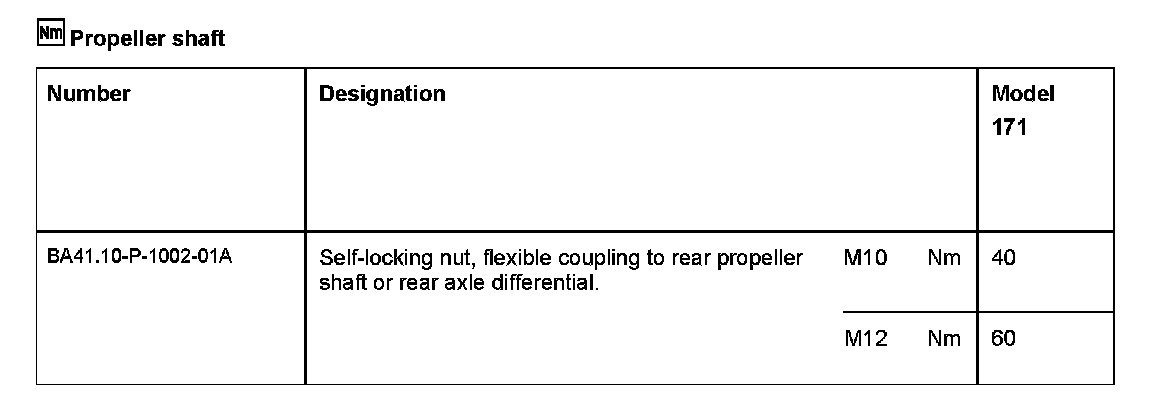

Propeller Shaft:

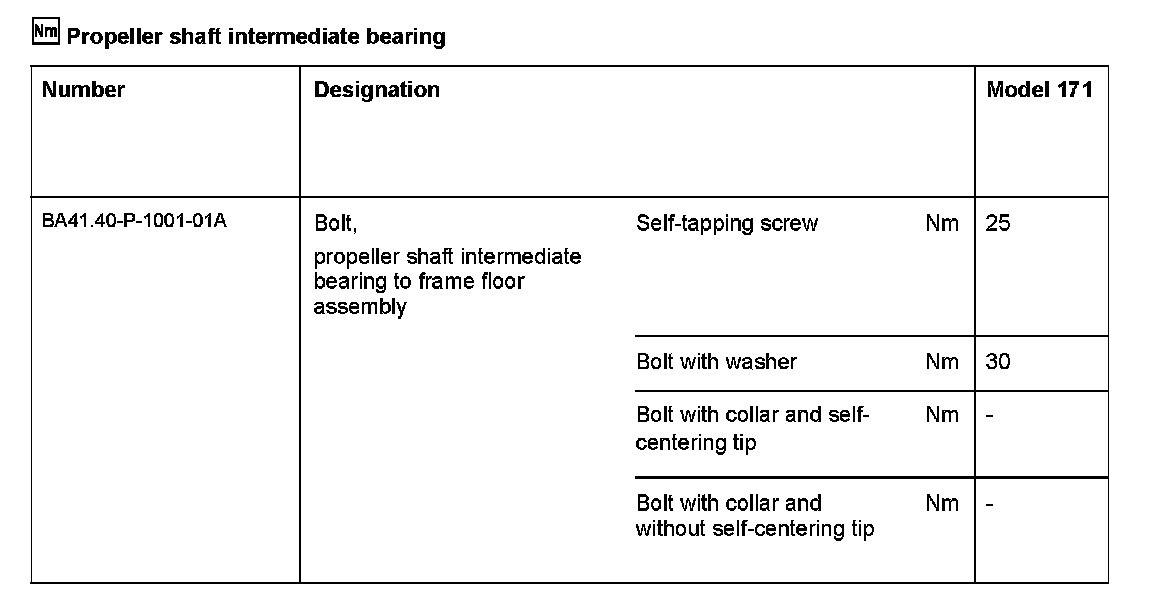

Propeller Shaft Intermediate Bearing:
