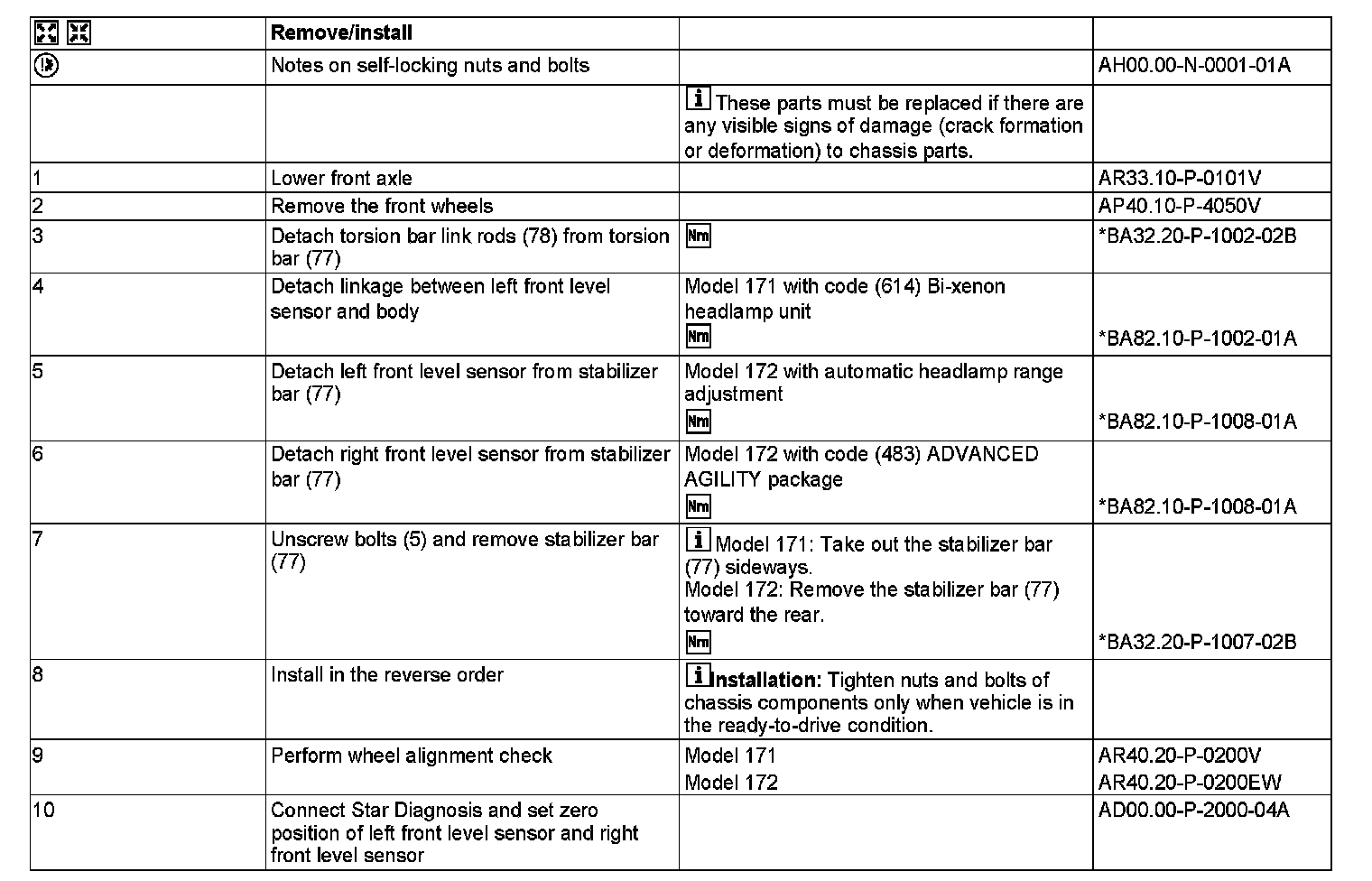

AR32.20-P-0300V Remove/Install Stabilizer Bar on Front Axle
AR32.20-P-0300V Remove/Install Stabilizer Bar on Front Axle
AR32.20-P-0300V Remove/Install
Stabilizer Bar
On Front Axle
MODEL 171
MODEL 172 with ENGINE 152, 271, 276
Shown on model 171.442
5 Bolts
77
Stabilizer bar
78 Stabilizer bar link rods
