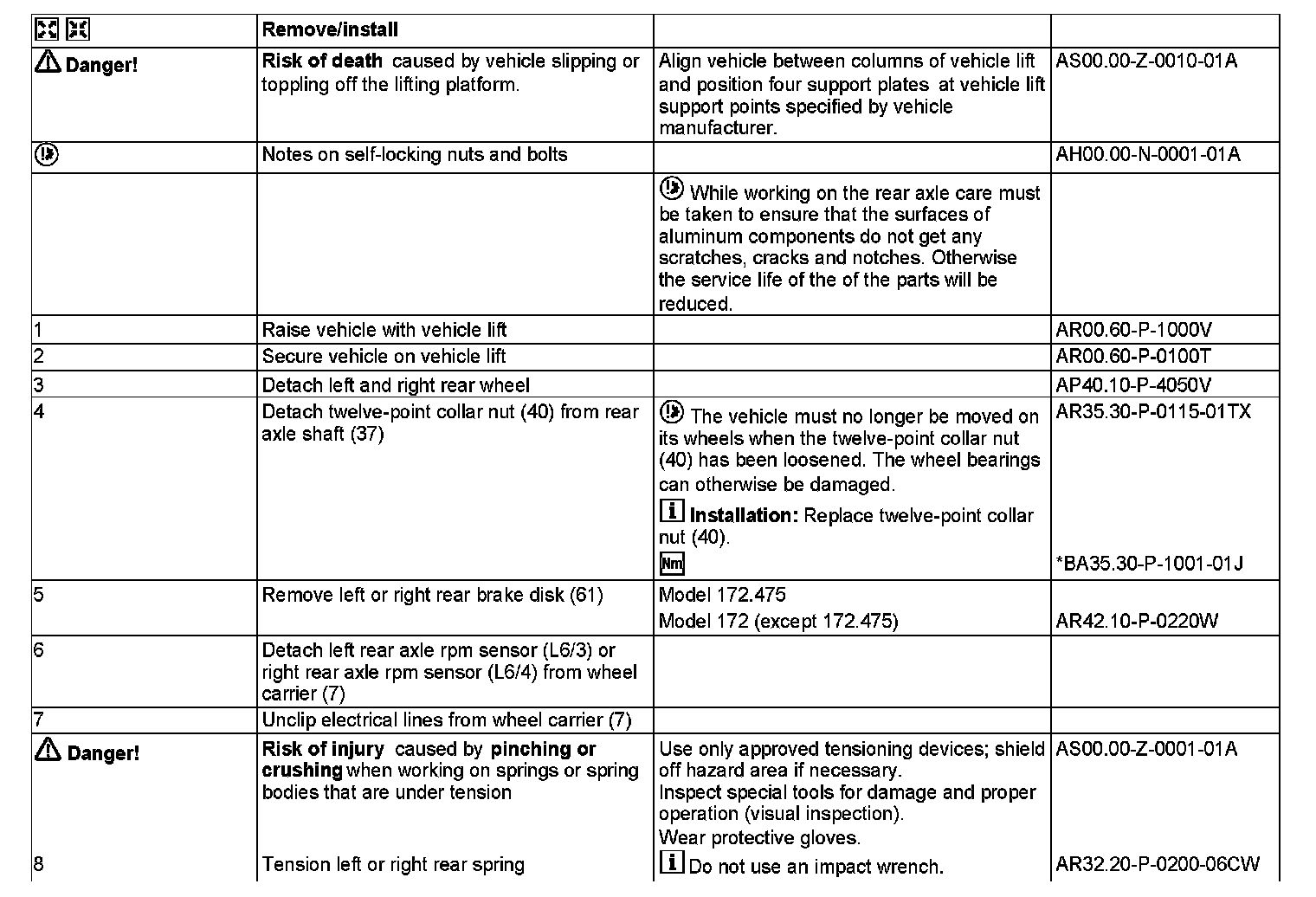

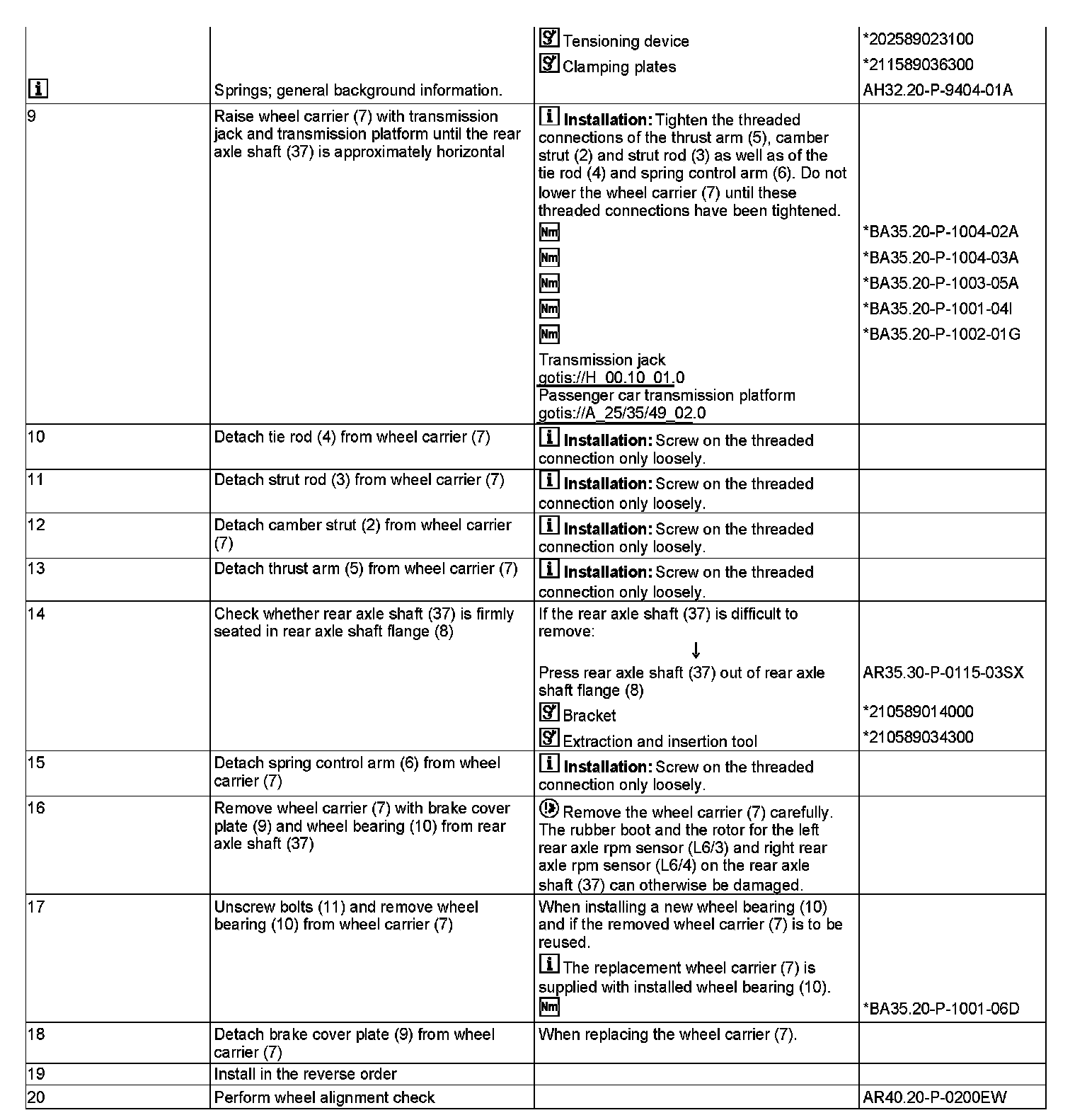

AR35.20-P-0115W Remove/Install Wheel Carrier

AR35.20-P-0115W Remove/Install Wheel Carrier
MODEL 172

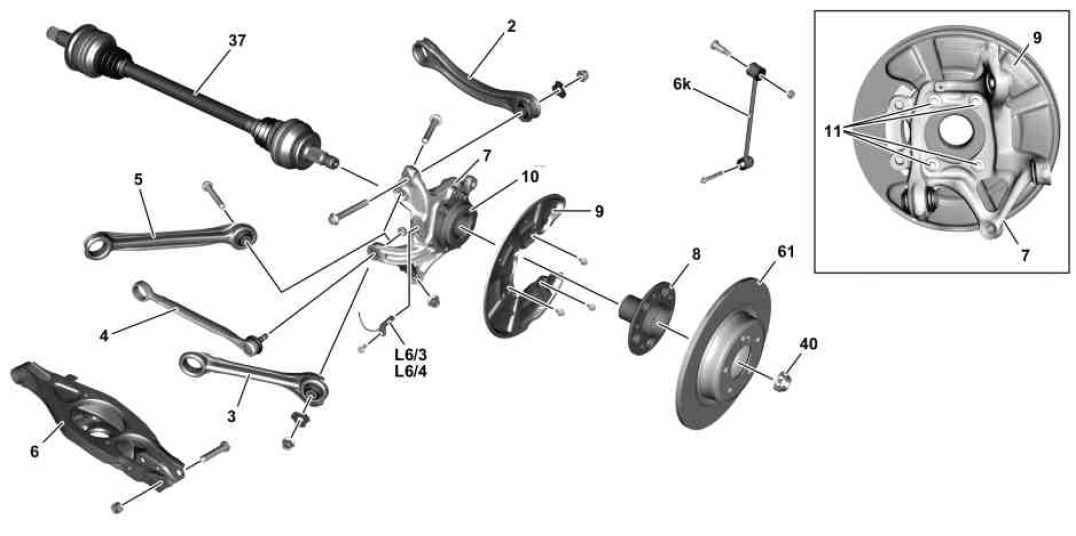

Shown on left side of vehicle

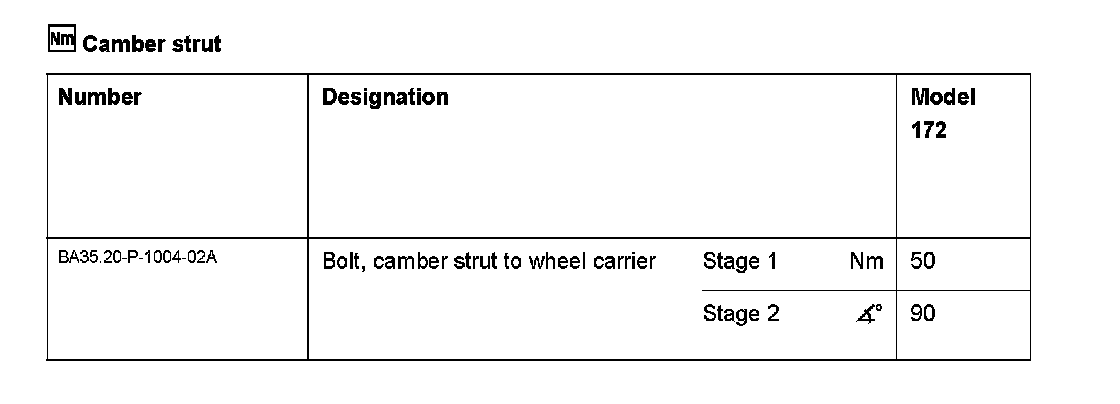

2 Camber strut

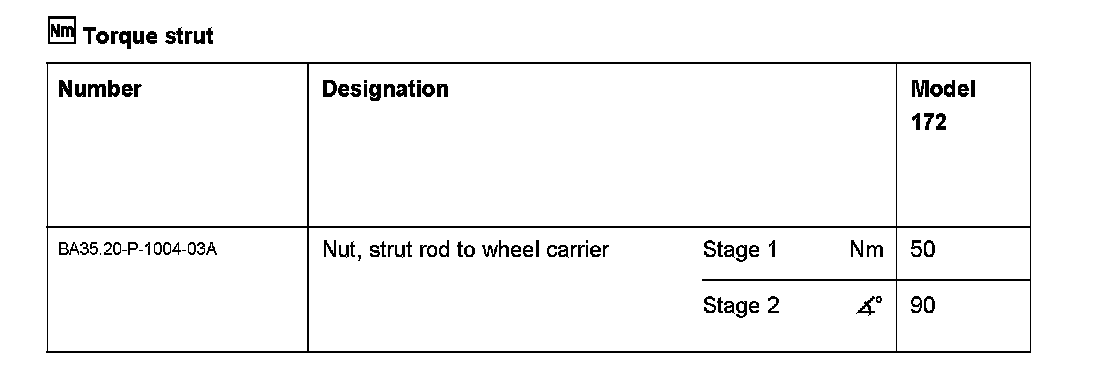

3 Torque strut

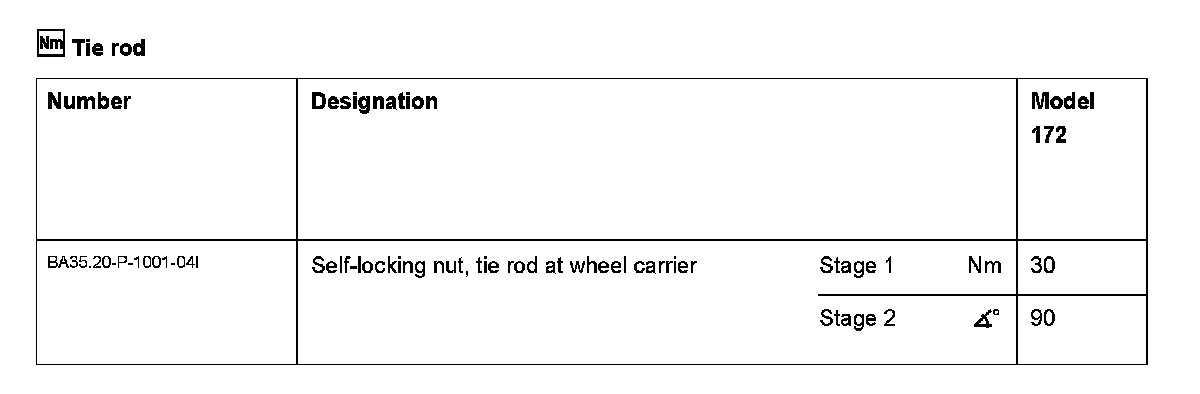

4 Tie rod
5 Thrust arm

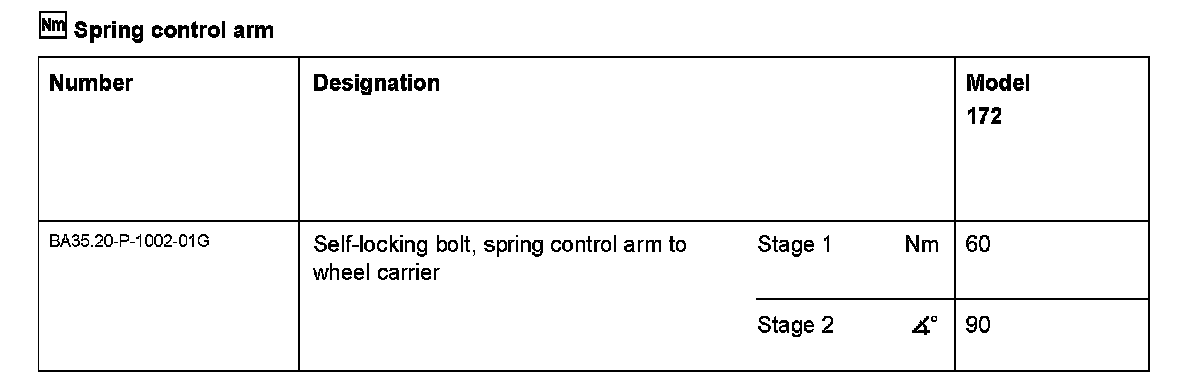

6 Spring control arm
7 Wheel carrier
8 Rear axle shaft flange
9 Brake caliper dust shield

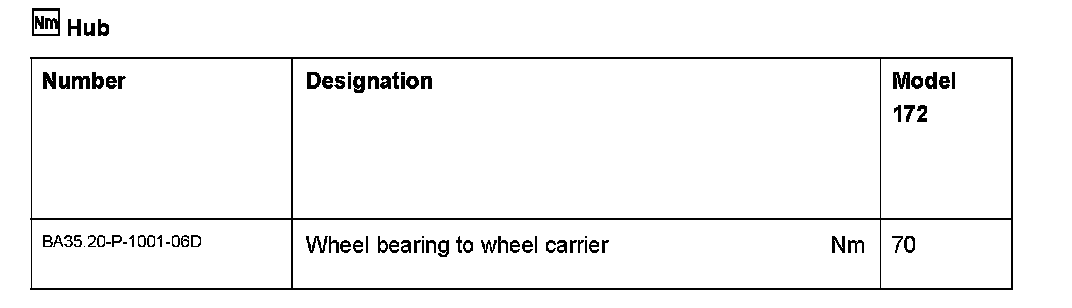

10 Wheel bearing
11 Bolts

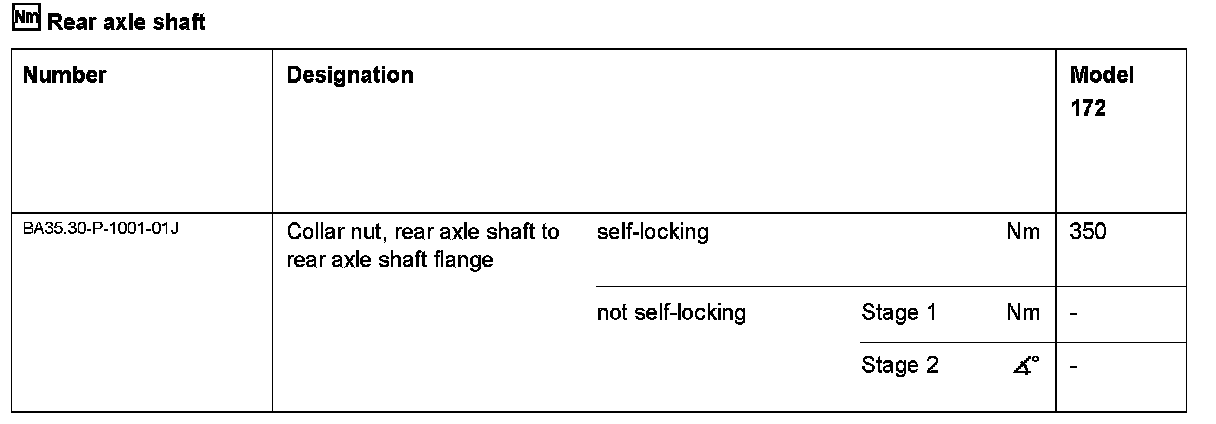

37 Rear axle shaft
40 Twelve-point collar nut
61 Brake disk

L6/3 Left rear axle speed sensor
L6/4 Right rear axle speed sensor
































202 589 02 31 00
Tensioning device





210 589 01 40 00
Bracket





210 589 03 43 00
Extraction and insertion tool





211 589 03 63 00
Clamping plates
