Radius Arm: Service and Repair

AR35.20-P-0111W Remove/Install Radius Rod
MODEL 172

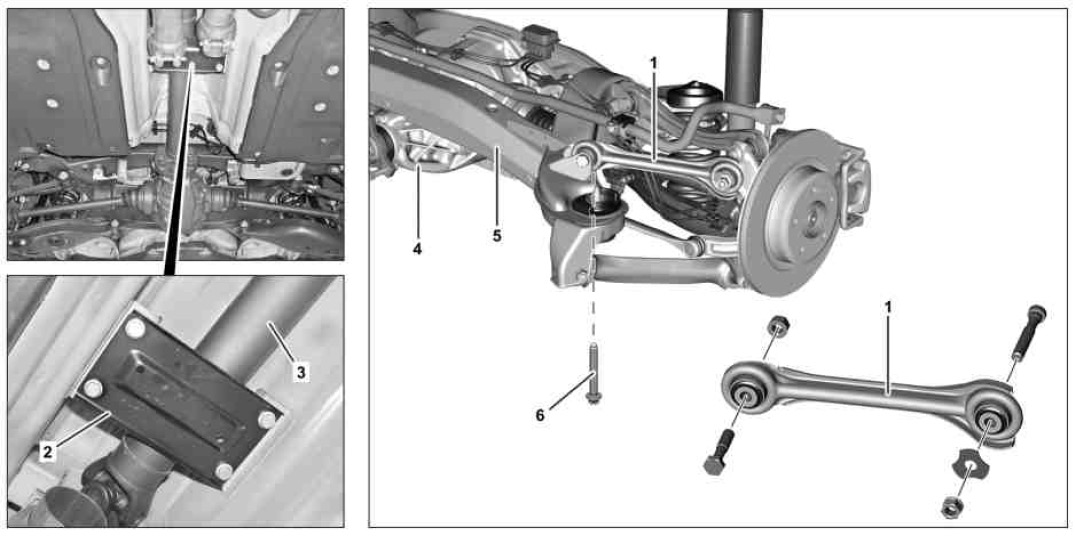

1 Torque strut
2 Rear cross brace
3 Propeller shaft
4 Differential
5 Rear axle carrier
6 Screw











129 589 01 03 00
Ring wrench





202 589 00 10 00
Retainer wrench
