Front Steering Knuckle: Service and Repair

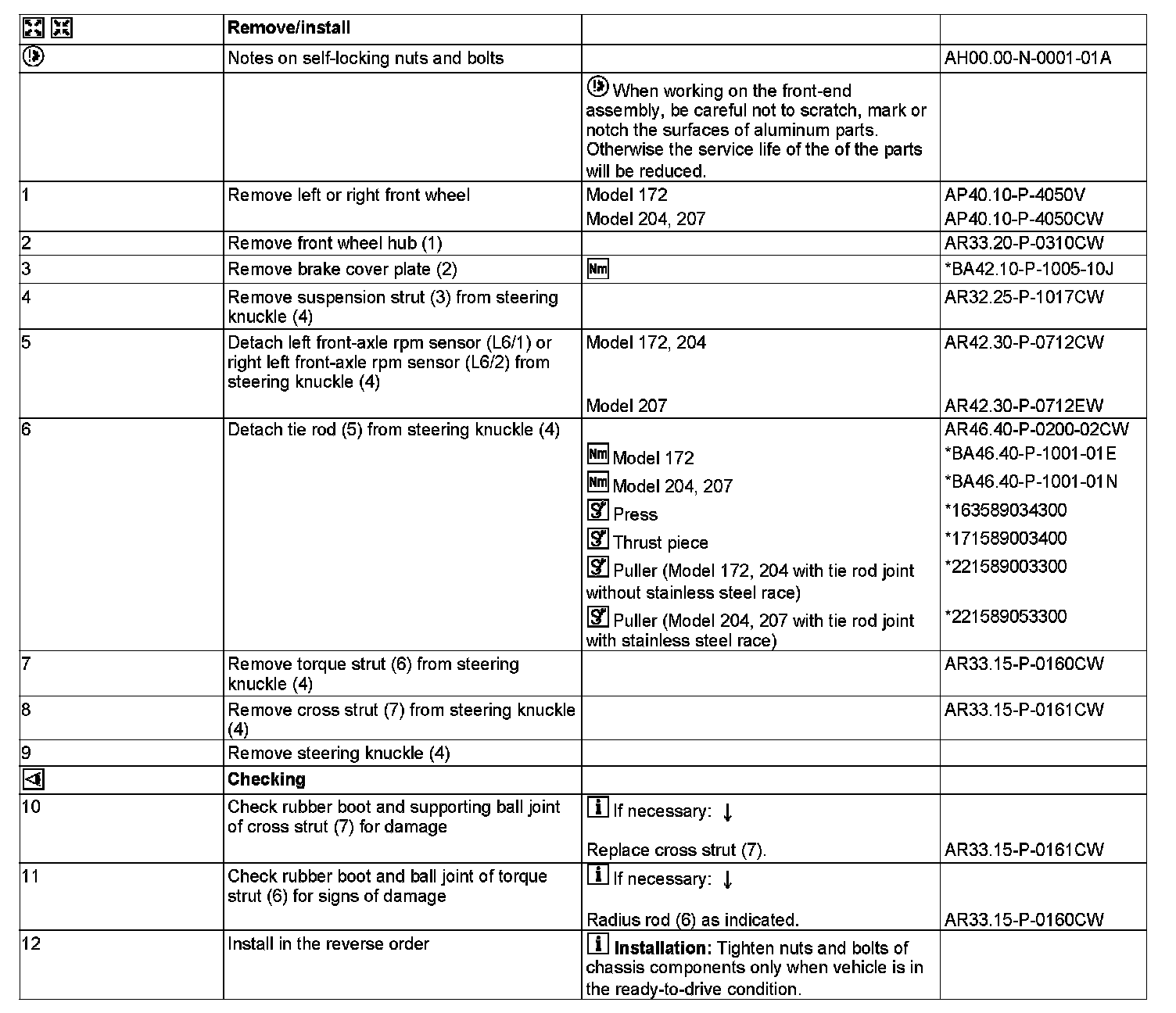

AR33.25-P-0400CW Remove/Install Steering Knuckle
MODEL 172
MODEL 204 (except 204.077 /277 /377 /9)
without 4MATIC
MODEL 207
Without 4MATIC

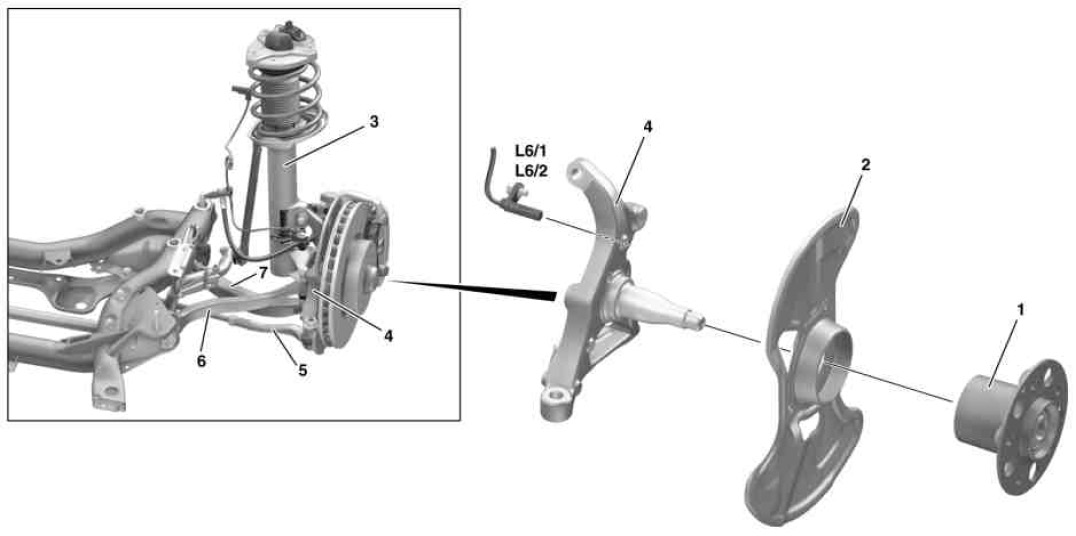

1 Front wheel hub
2 Brake caliper dust shield
3 Suspension strut
4 Steering knuckle

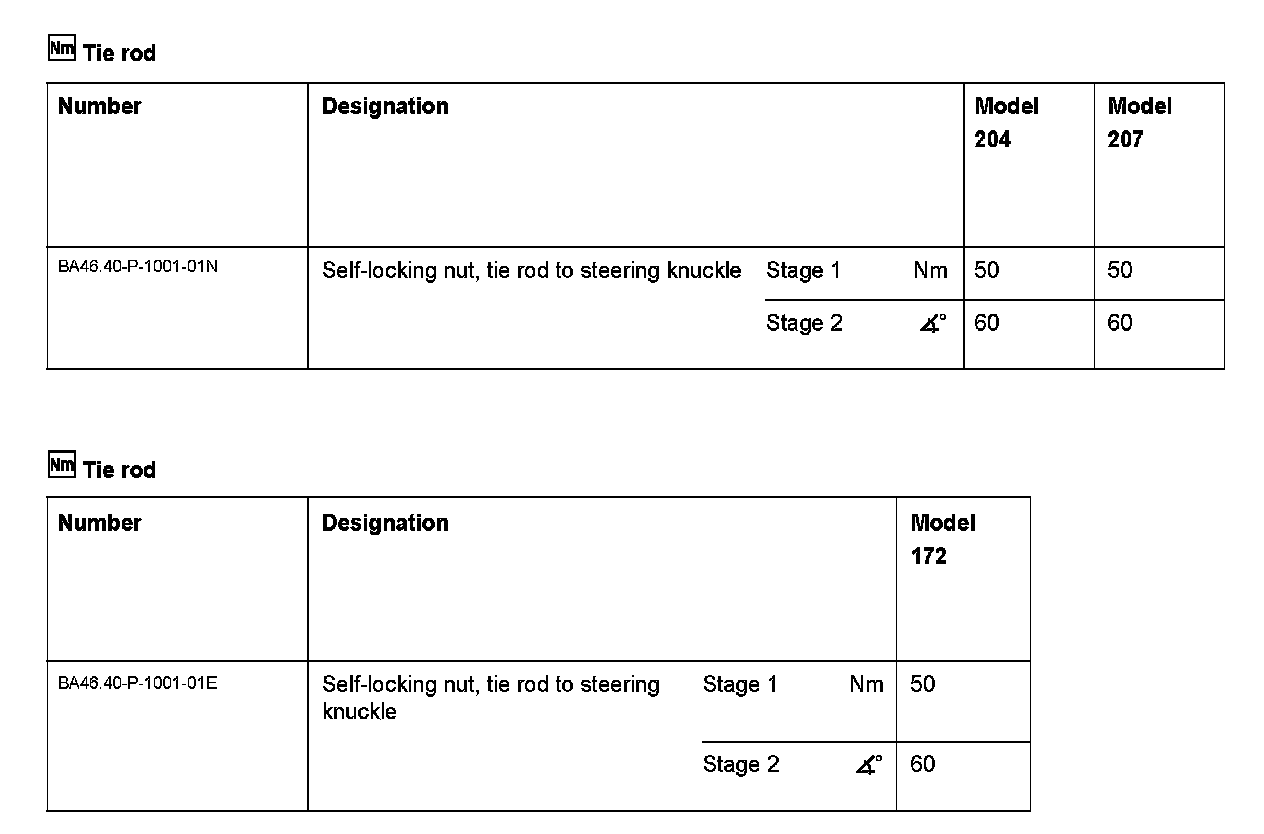

5 Tie rod
6 Torque strut
7 Cross strut
L6/1 Left front axle speed sensor
L6/2 Right front axle speed sensor














163 589 03 43 00
Press





221 589 00 33 00
Puller





171 589 00 34 00
Thrust piece





221 589 05 33 00
Puller
