AR35.20-P-0116W Remove/Install Supporting Joint at Wheel Carrier (Wheel Carrier Installed)

AR35.20-P-0116W Remove/Install Supporting Joint At Wheel Carrier (Wheel Carrier Installed)
MODEL 172

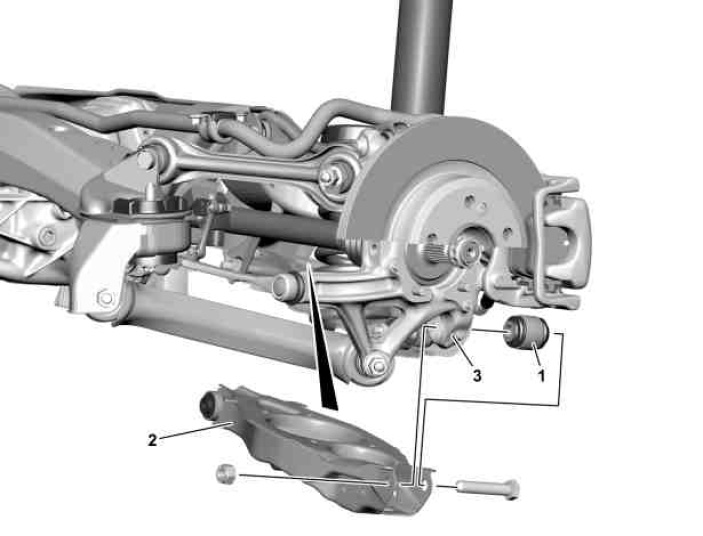

1 Supporting joint

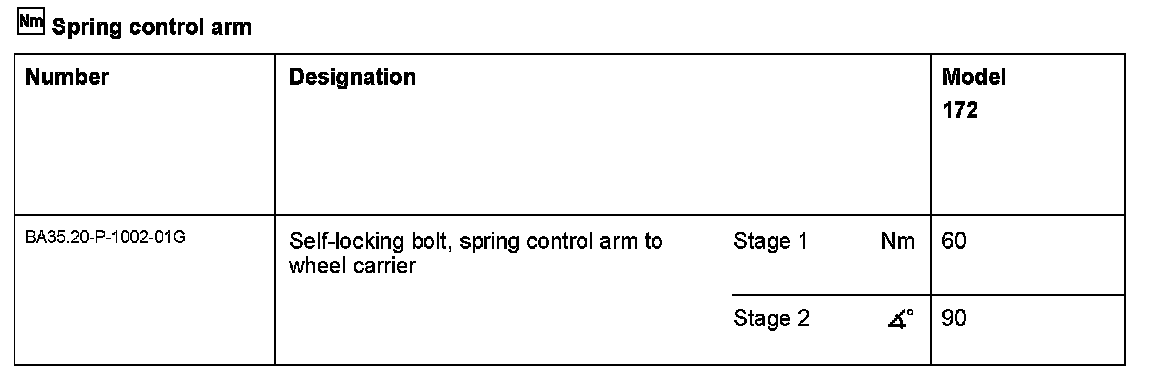

2 Spring control arm
3 Wheel carrier











202 589 00 43 00
Extraction and insertion tool





202 589 02 31 00
Tensioning device





211 589 03 63 00
Clamping plates
