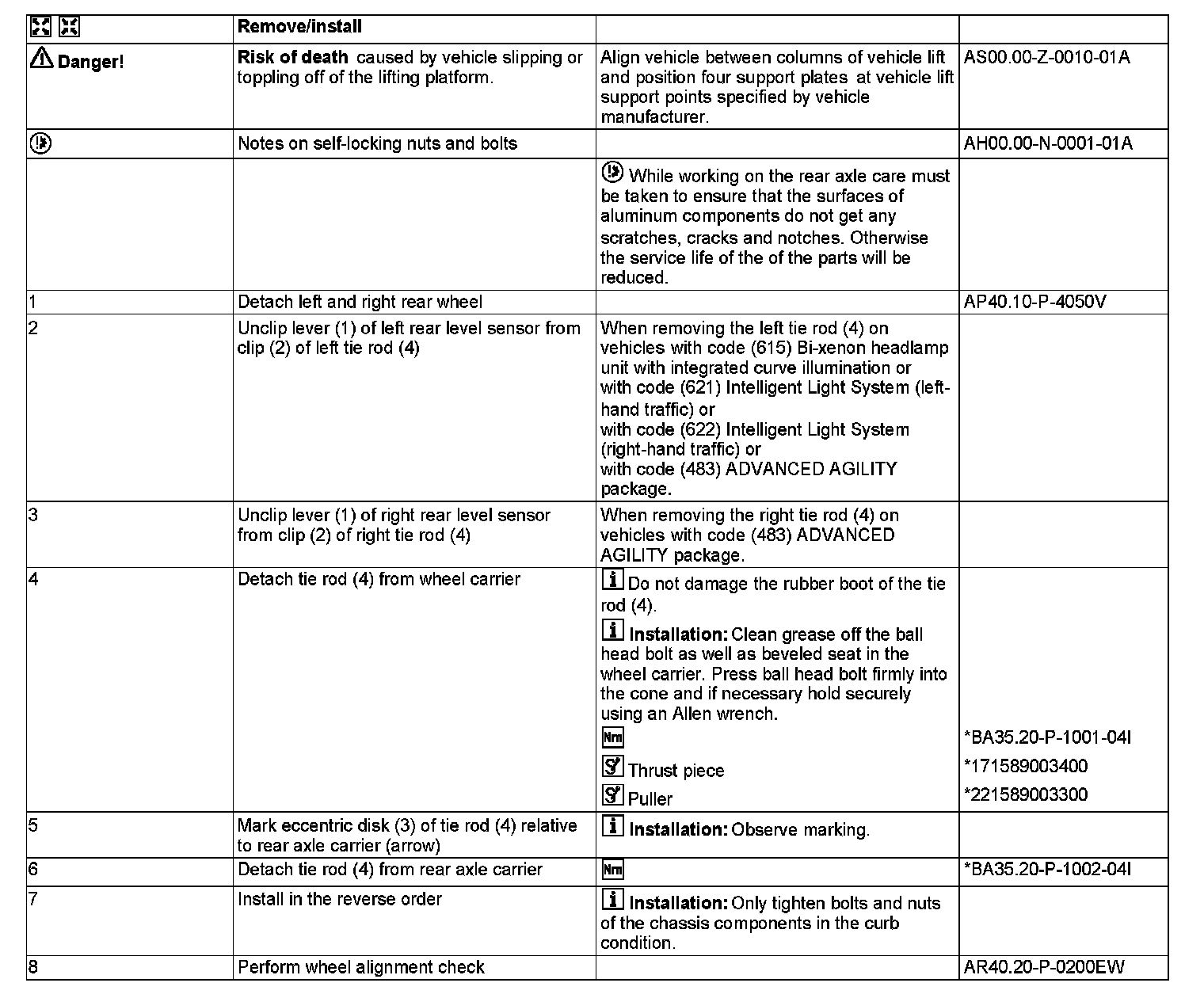

AR35.20-P-0109W Remove/Install Track Rod

AR35.20-P-0109W Remove/Install Track Rod

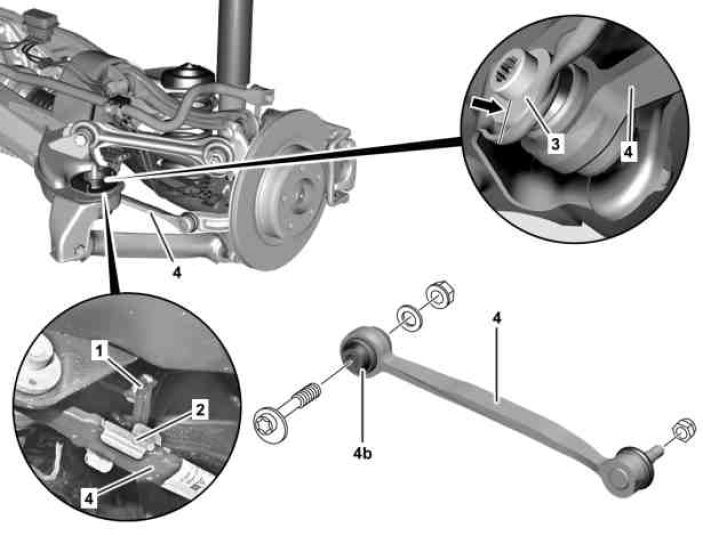

MODEL 172





1 Lever (with code (615) Bi-xenon headlamp unit with integrated curve illumination or code (621) Intelligent Light System (left-hand traffic) or code (622) Intelligent Light System (right-hand traffic) or code (483) ADVANCED AGILITY package)
2 Clip (with code (615) Bi-xenon headlamp unit with integrated curve illumination or code (621) Intelligent Light System (left-hand traffic) or code (622) Intelligent Light System (right-hand traffic) or code (483) ADVANCED AGILITY package)
3 Eccentric disk
4 Tie rod
4b Rubber bushing











171 589 00 34 00
Thrust piece





221 589 00 33 00
Puller
