Ball Joint: Testing and Inspection



Check front-axle joints for play, check rubber boots

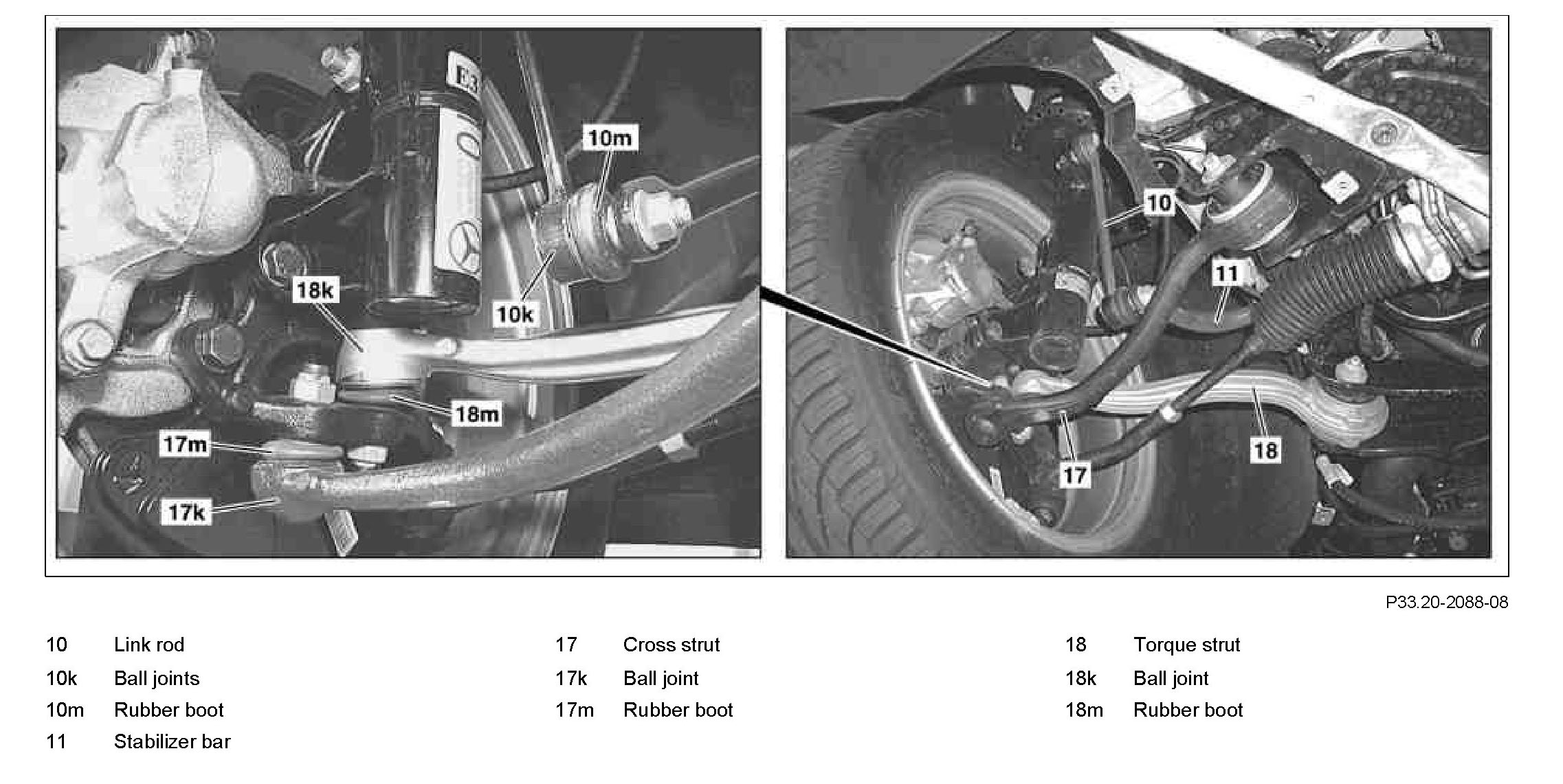

Component Identification:

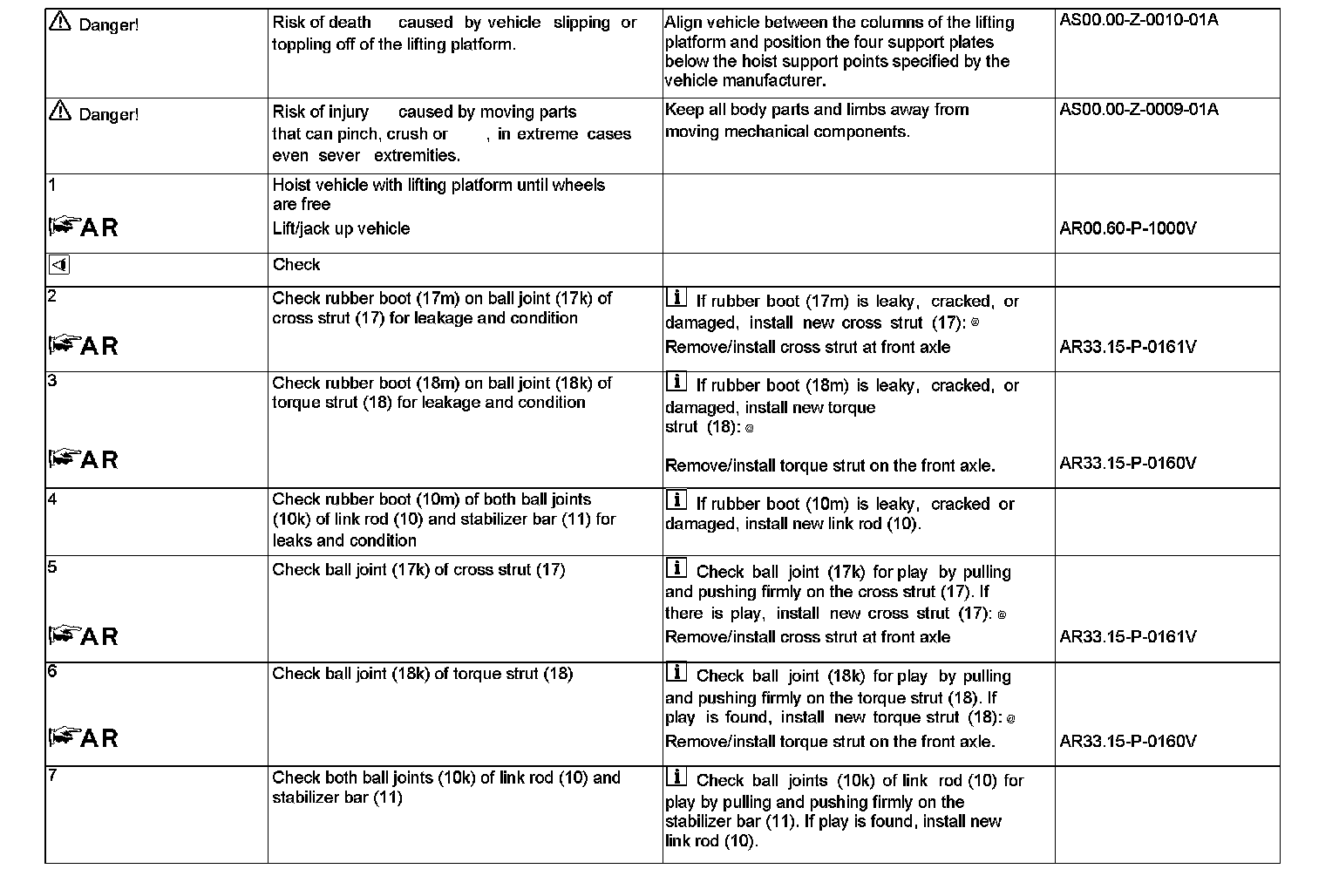

Steps 1 - 7:
