AR46.40-P-7200-01EW Fastening bellows with clamps

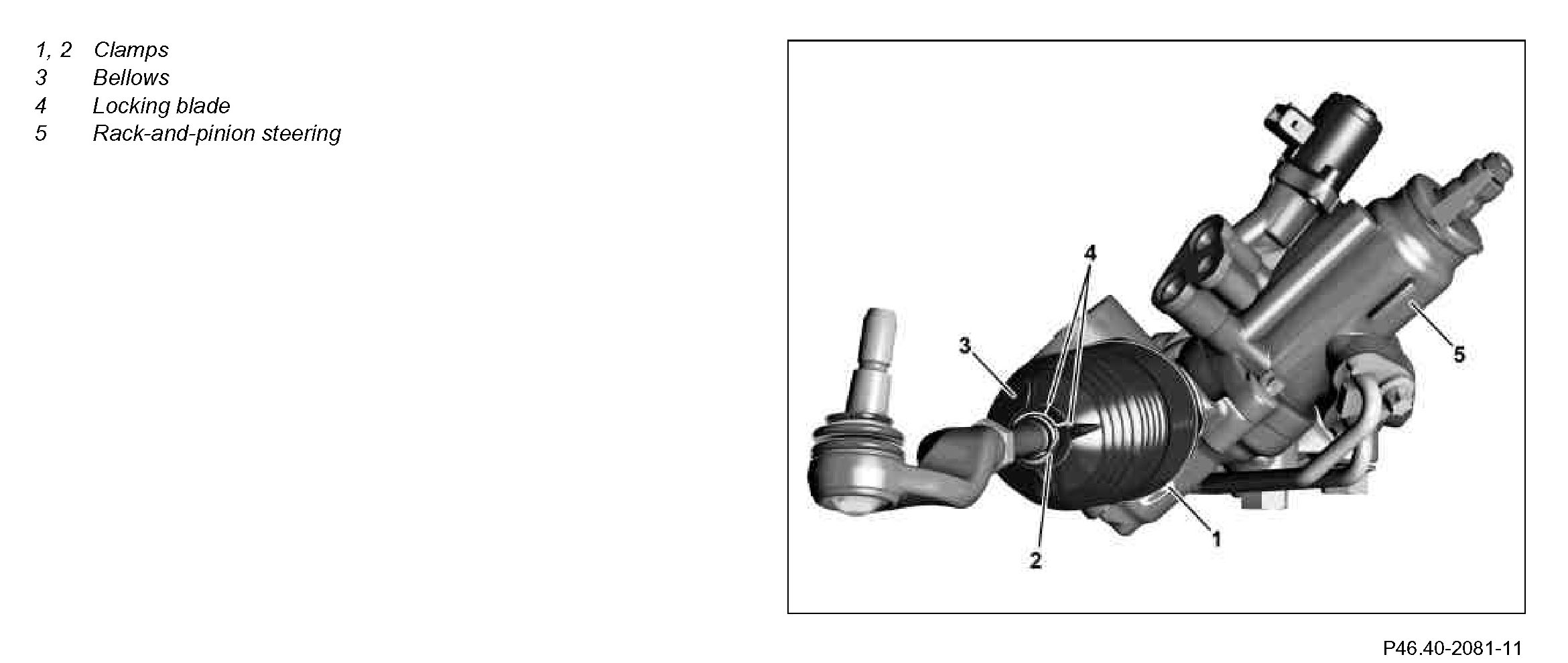

Component Identification:

Attaching
1 Position clamps (1, 2).
The clamps (1, 2) for boot (3) must be positioned as shown in the picture otherwise on extreme steering angle the clamp (2) with the locking blades (4) will be pressed against boot (3) and thus damaged. Otherwise in the case of clamp (1) a constriction with the front axle carrier occurs.
2 Fasten clamps (1, 2).
3 Check clamps (1, 2) for correct and tight seating.
