Steering Shaft Coupler: Service and Repair

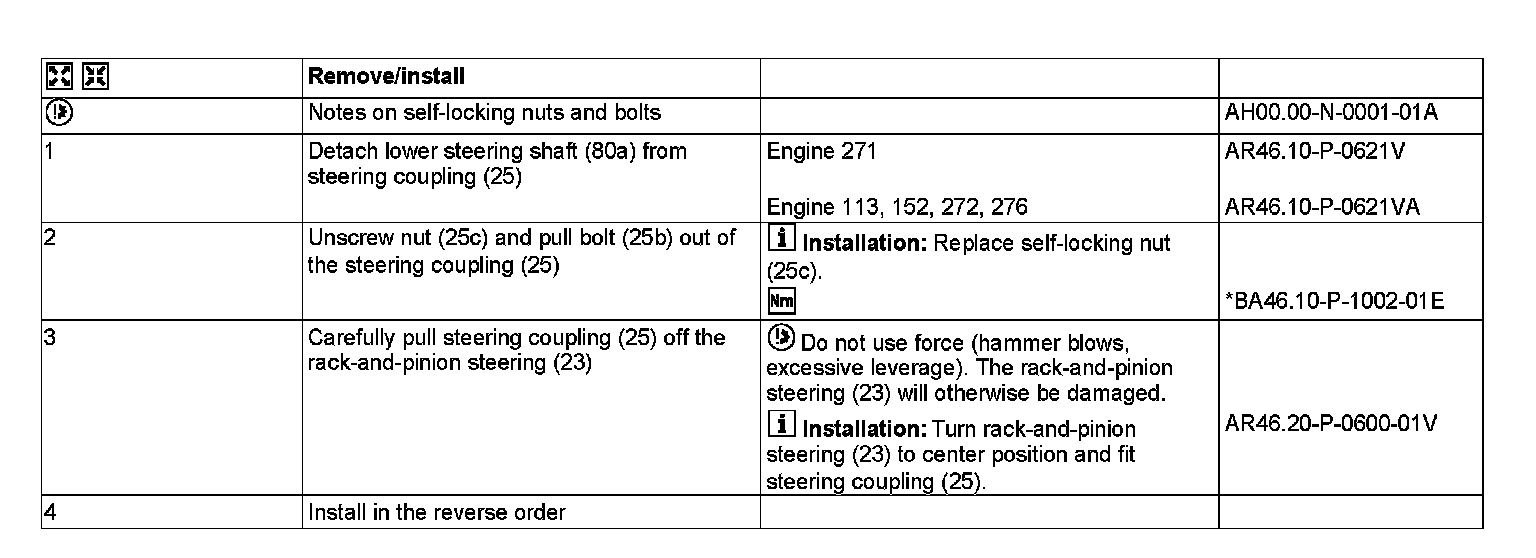

AR46.10-P-8000V Remove/Install Steering Coupling
MODEL 171, 172

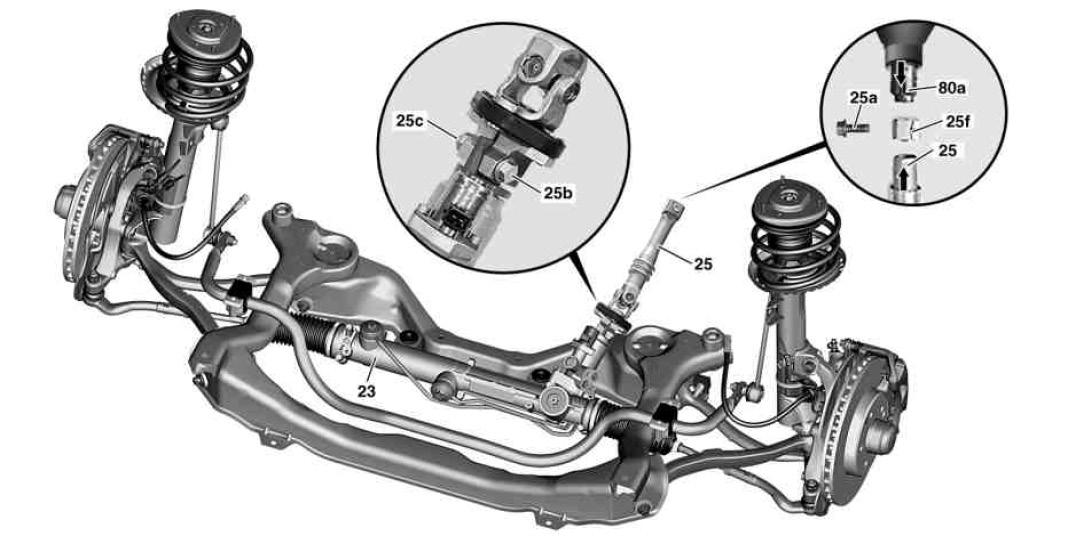

Shown on model 171

23 Rack-and-pinion steering
25 Steering coupling
25a Screw
25b Screw
25c Nut
25f Locking plate
80a Lower steering shaft
