Removal and Replacement

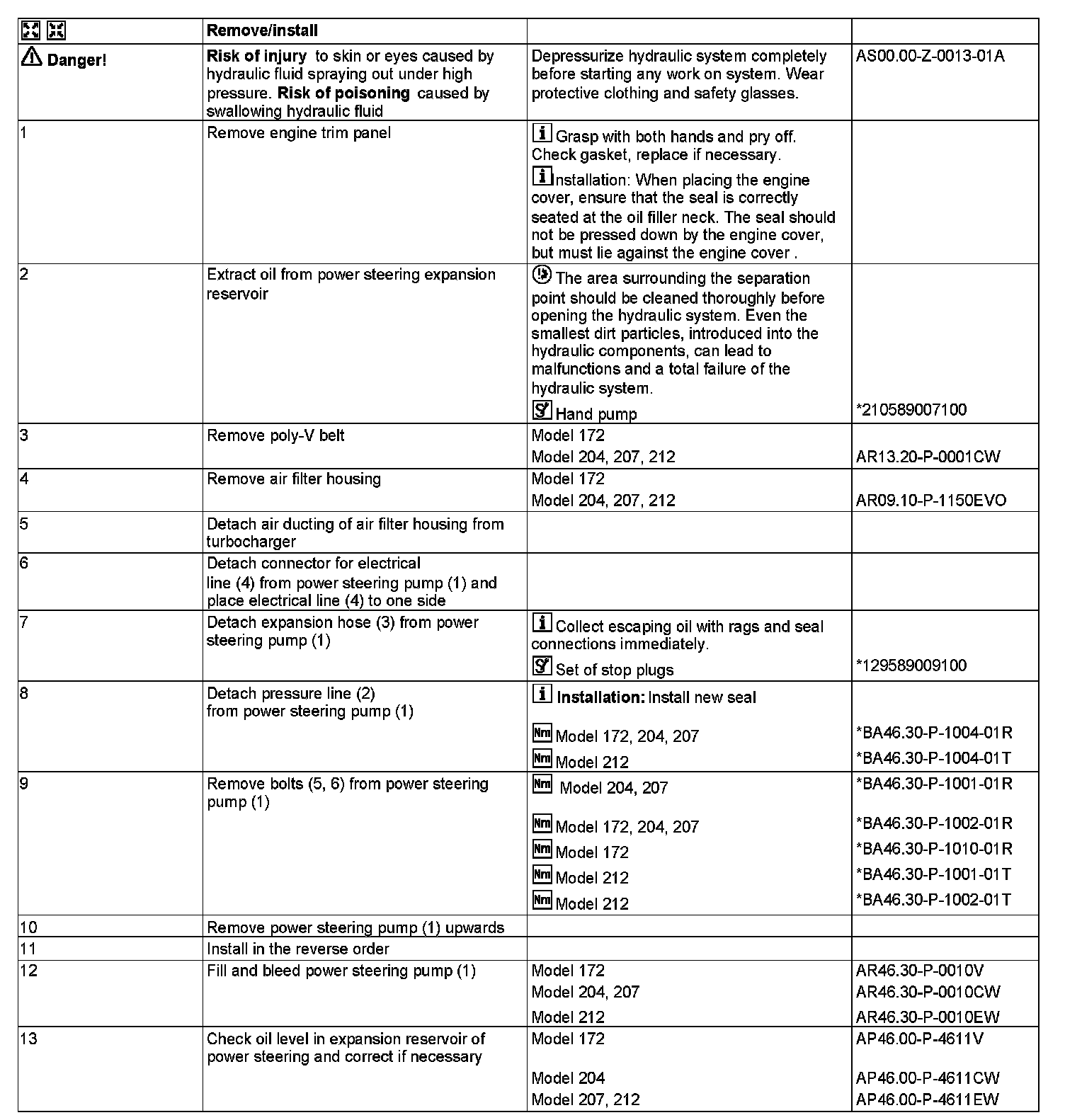

AR46.30-P-0500EVO Remove/Install Power Steering Pump
MODEL 172, 204, 207, 212 with ENGINE 271.8

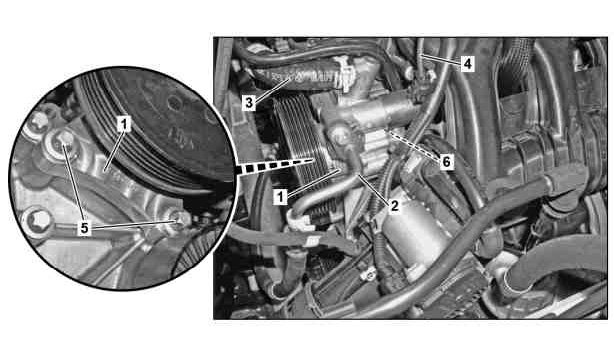

1 Power steering pump
2 Pressure line
3 Expansion hose
4 Electrical line
5 Bolts
6 Screw











210 589 00 71 00
Hand pump





129 589 00 91 00
Set of stop plugs
