Procedures

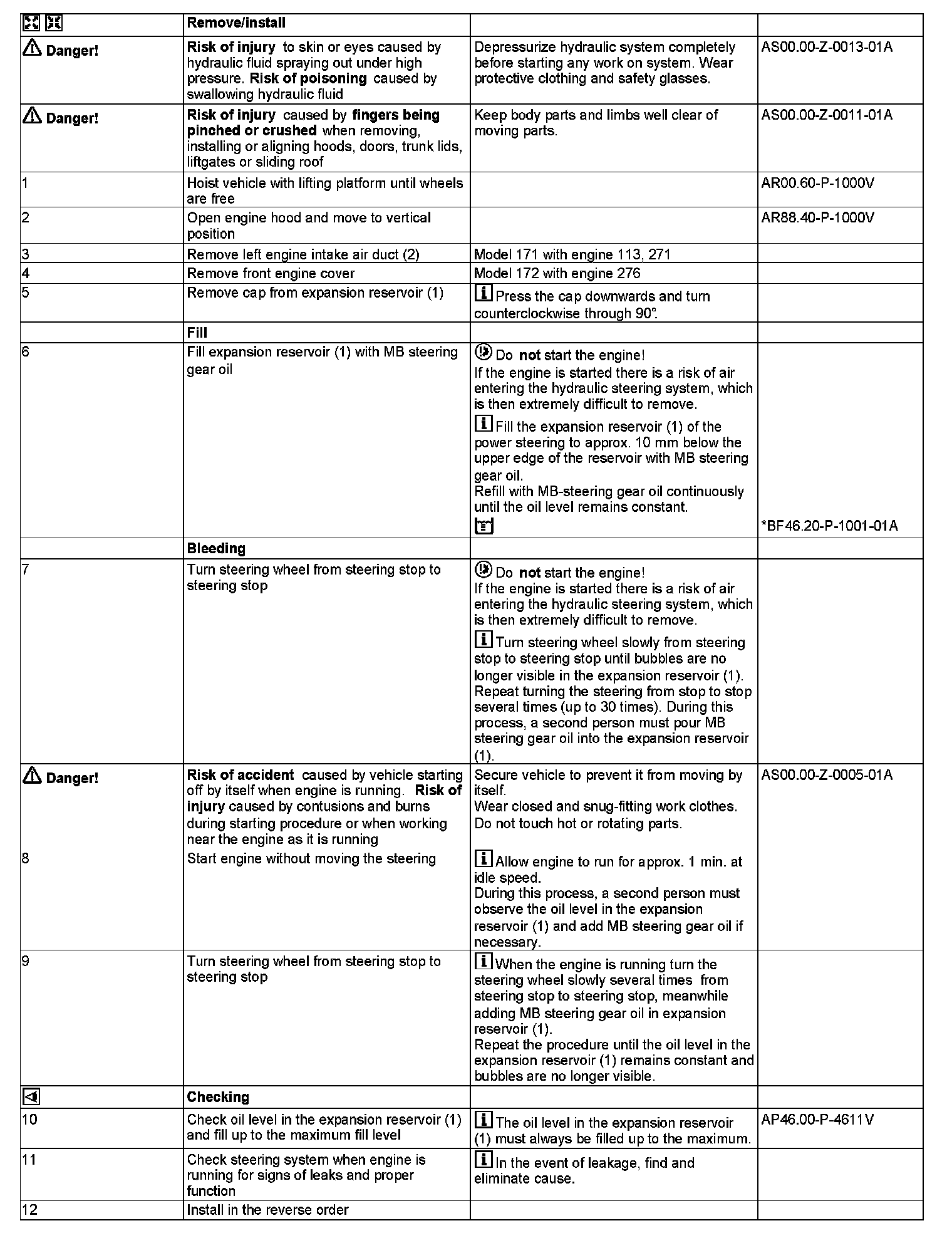

AR46.30-P-0010V Fill Power Steering Pump And Bleed
MODEL 171 with ENGINE 113, 271, 272
MODEL 172 with ENGINE 152, 271, 276

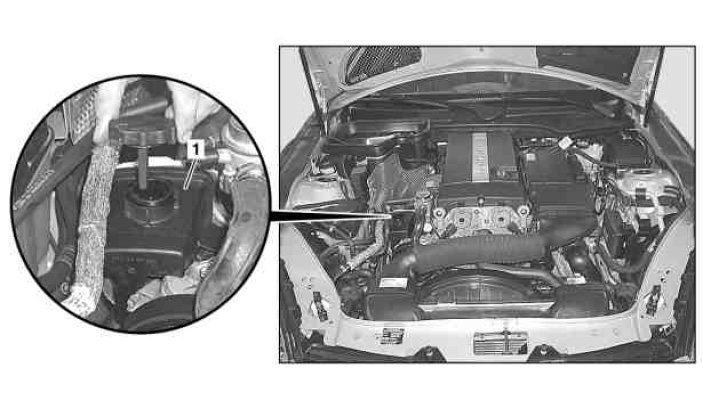

Illustrated on model 171.442

1 Power steering (expansion reservoir)

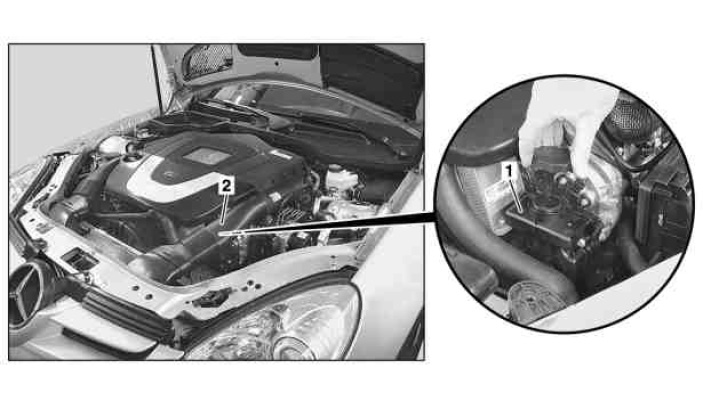

Illustrated on model 171.456

1 Power steering (expansion reservoir)
2 Left engine air intake duct
