Power Steering Fluid Cooler: Service and Repair

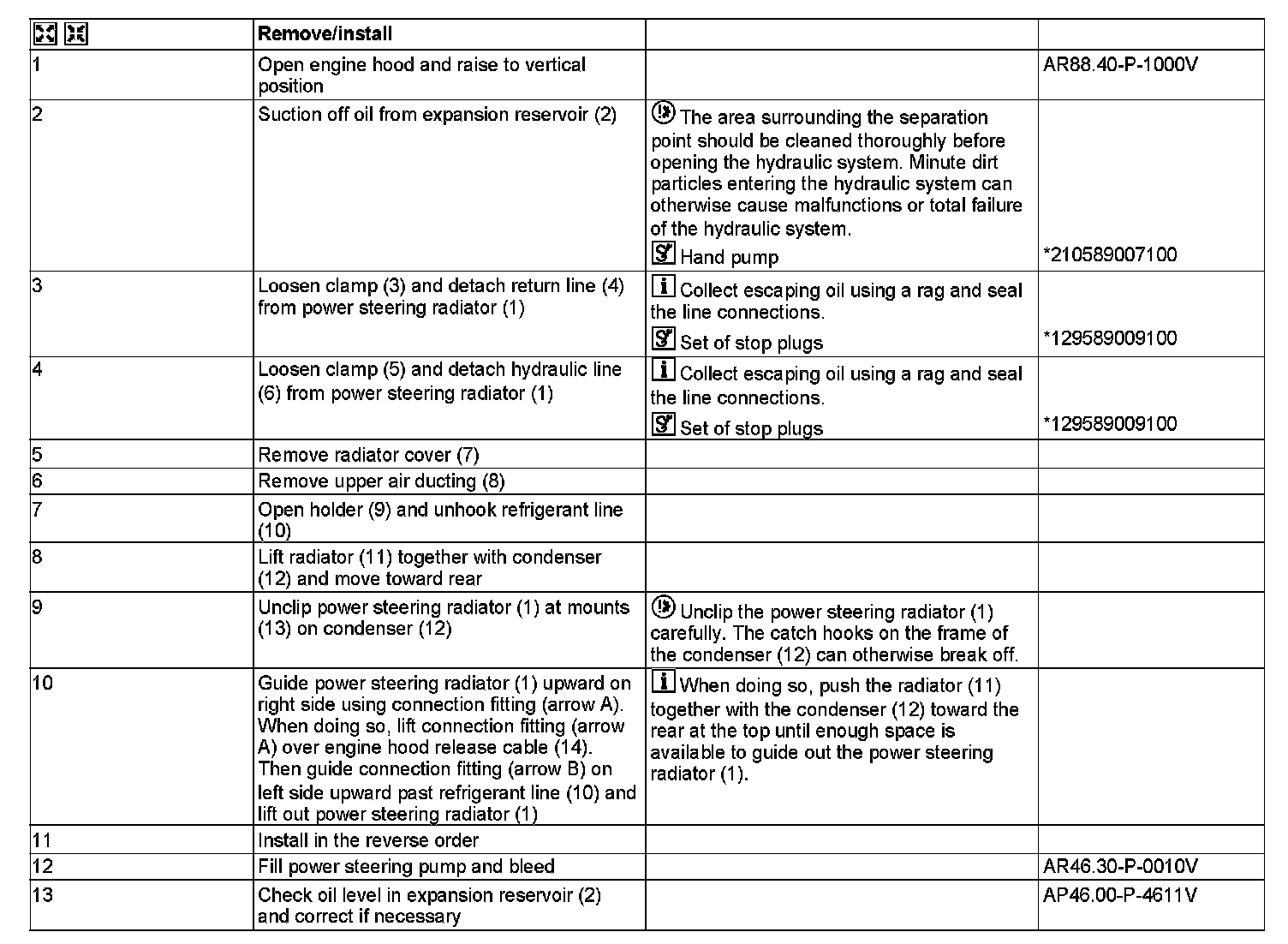

AR46.25-P-3020WA Remove/Install Power Steering Radiator
MODEL 172 with ENGINE 271

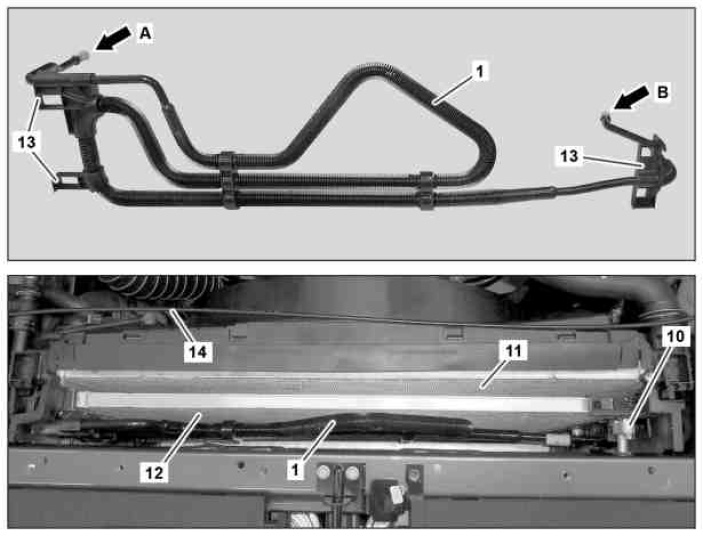

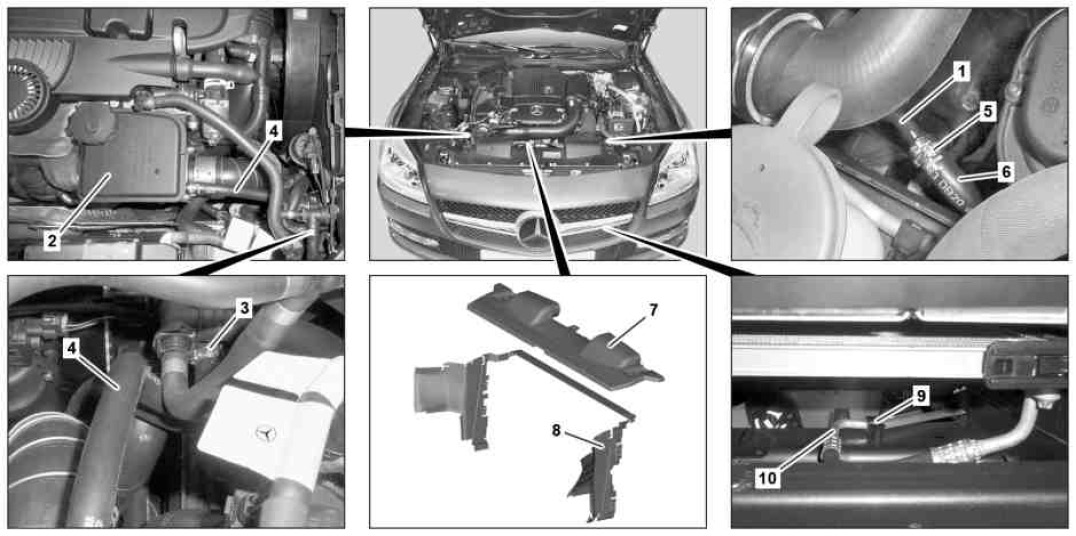

1 Power steering radiator
2 Expansion reservoir
3 Clip
4 Return flow pipe
5 Clip
6 Hydraulic line
7 Radiator cover
8 Upper air ducting
9 Bracket
10 Refrigerant line





1 Power steering radiator
10 Refrigerant line
11 Radiator
12 Capacitor
13 Supports
14 Engine hood release cable








129 589 00 91 00
Set of stop plugs





210 589 00 71 00
Hand pump
