AR54.10-P-1129V Checking Battery Condition
AR54.10-P-1129V Checking Battery Condition
AR54.10-P-1129V Checking Battery Condition

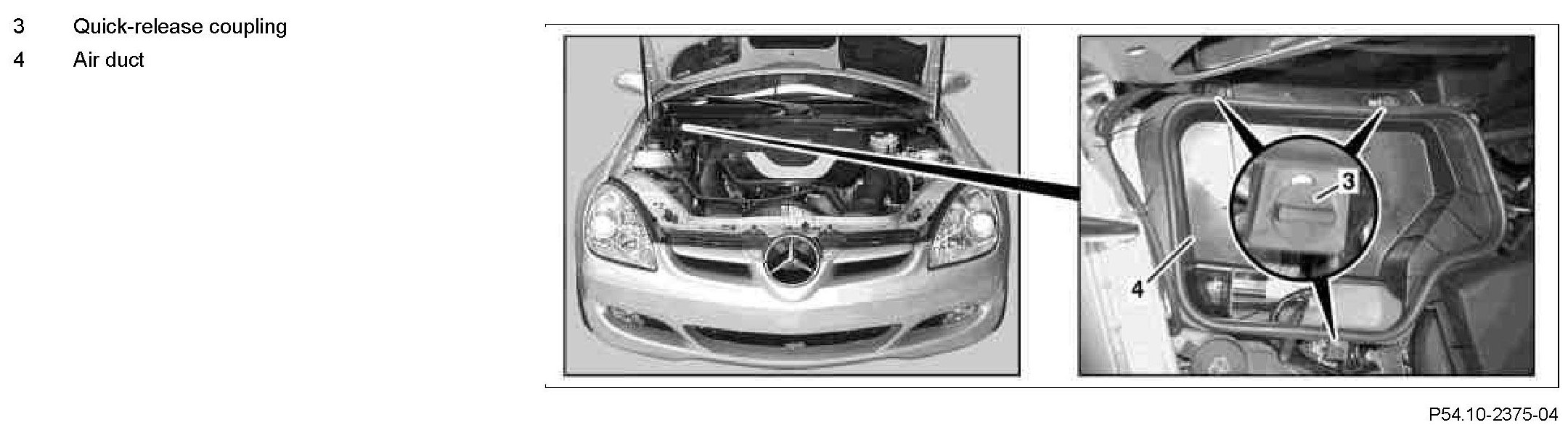

Component Identification:

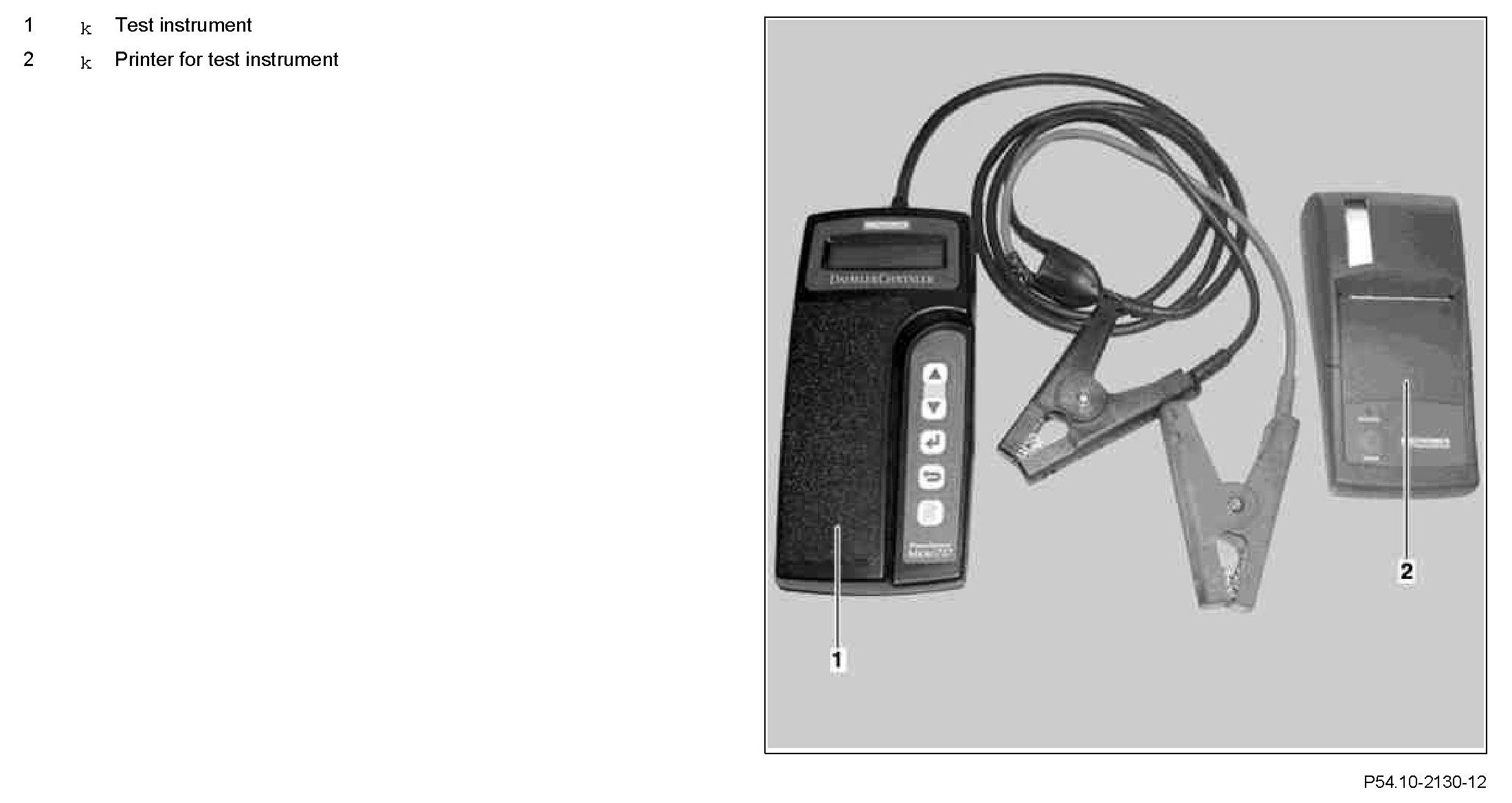

Component Identification:

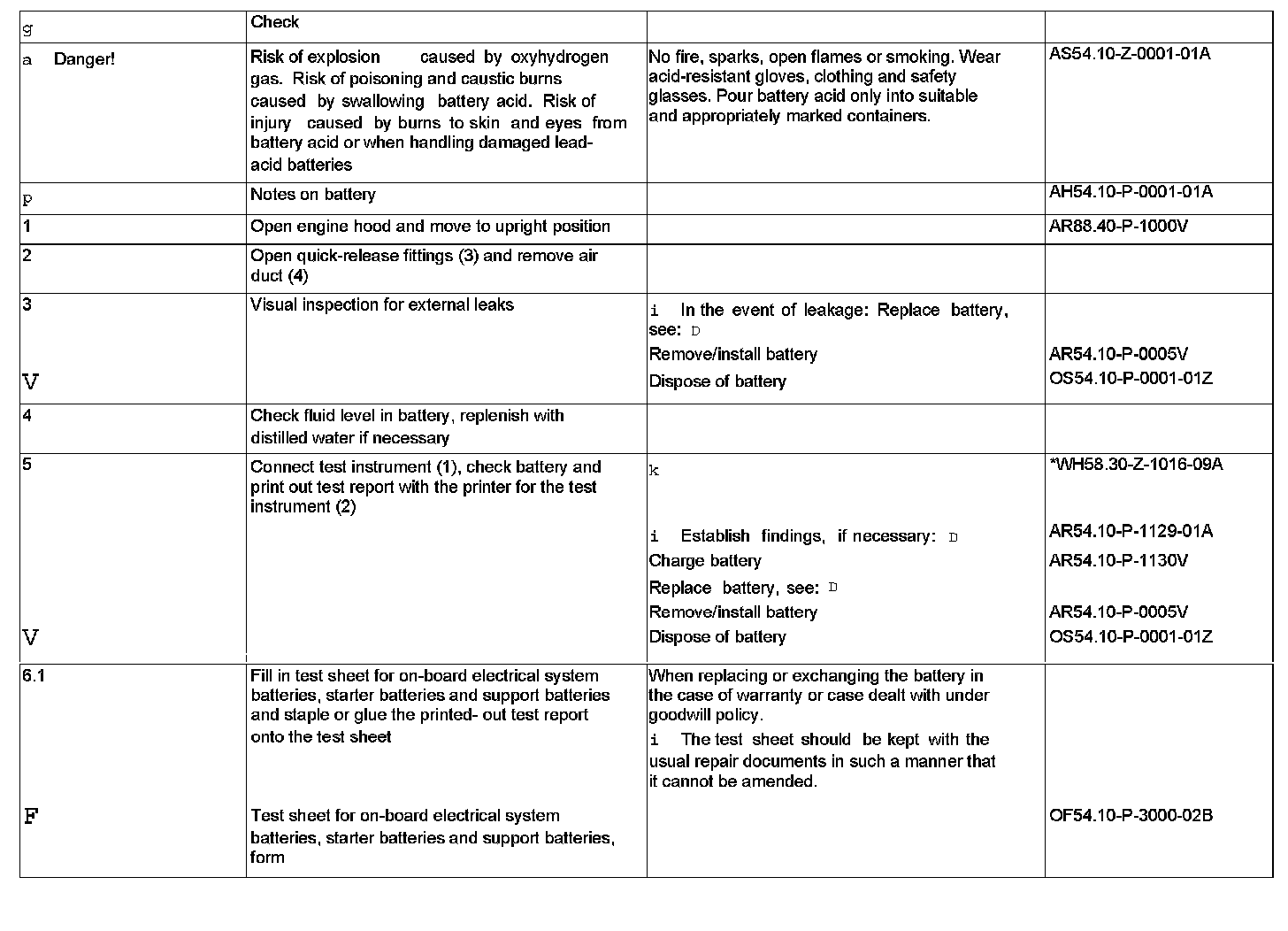

Steps 1 - 6.1:

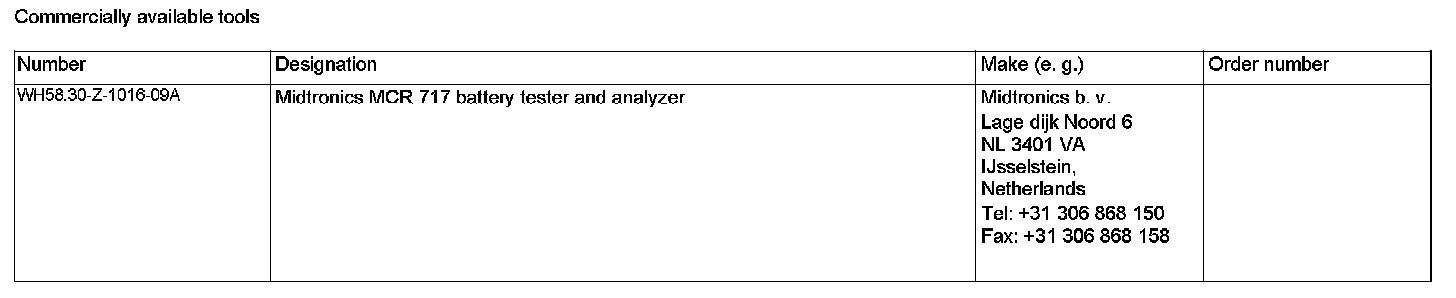

Commercially Available Tools:
