Home >> Mercedes Benz >> 2012 >> SLK 250 (172.477) L4-1.8L Turbo (271.861) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Suspension >> System Specifications >> BA35.20-P-1000-01G Spring Control Arm

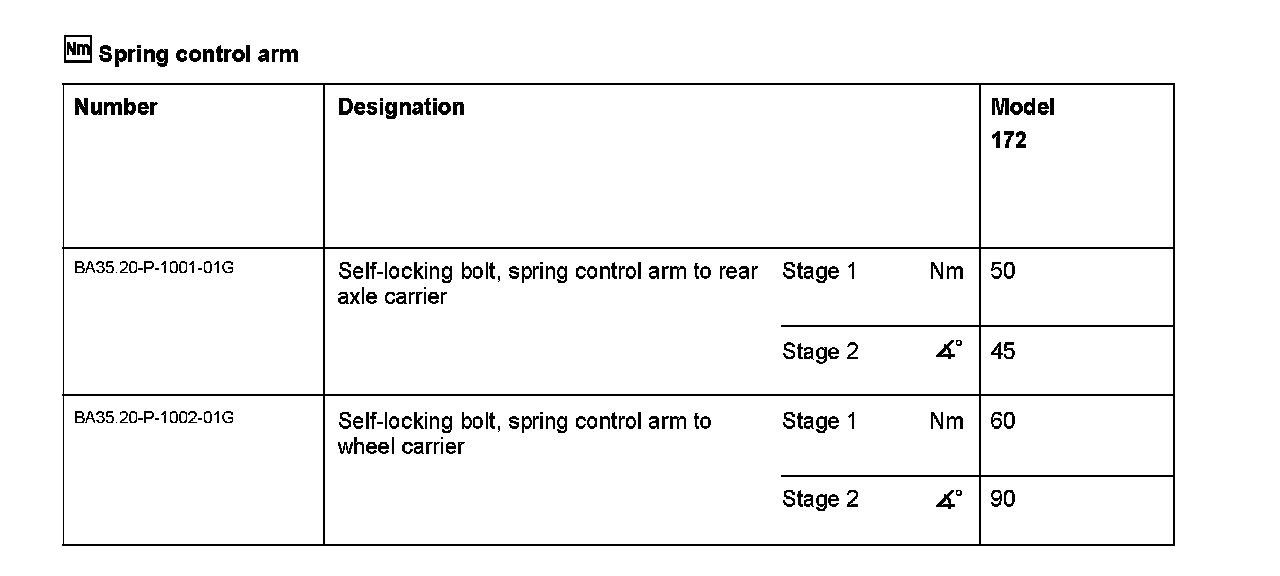

BA35.20-P-1000-01G Spring Control Arm



BA35.20-P-1000-01G Spring Control Arm
Model 172
