SLK 250 (172.477) L4-1.8L Turbo (271.861)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Headlamp Alignment Sensor
>>
BA82.10-P-1000-02E Rear Axle Level Sensor
BA82.10-P-1000-02E Rear Axle Level Sensor
BA82.10-P-1000-02E Rear Axle Level Sensor

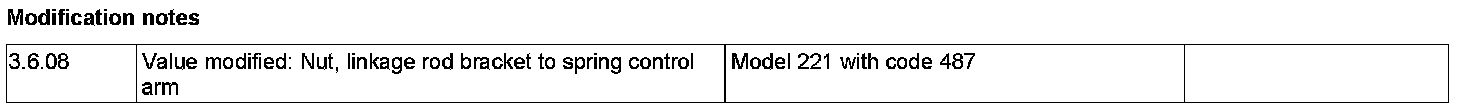

Modification Notes:

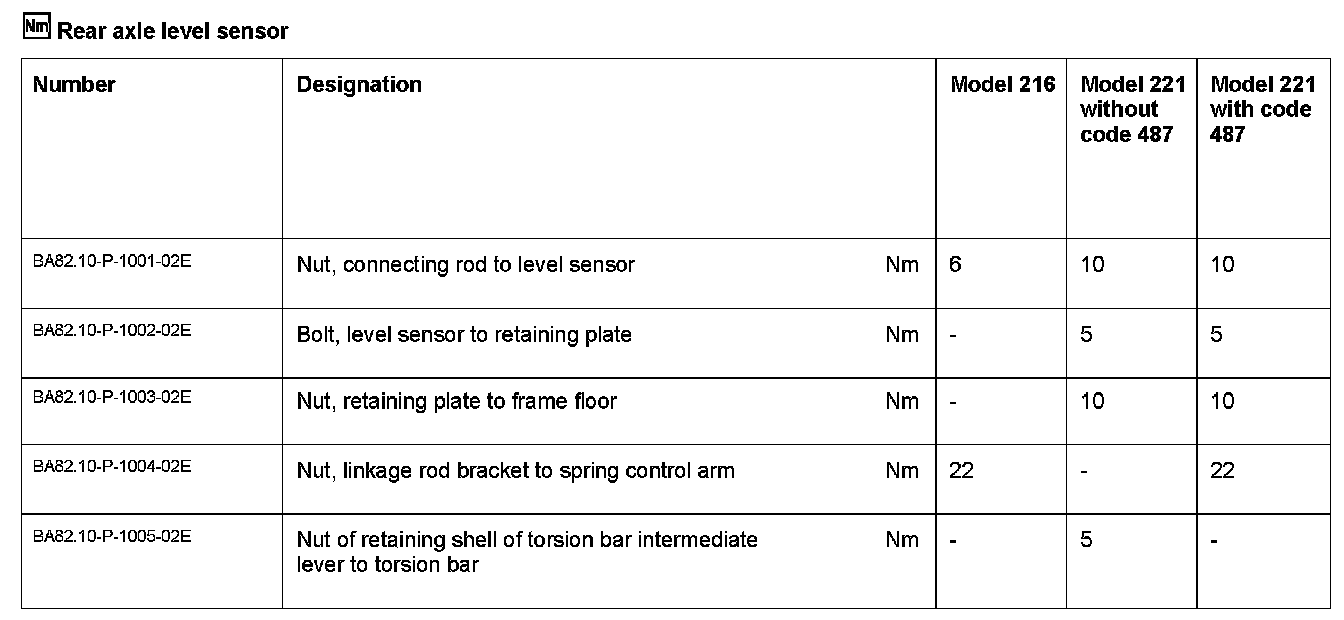

Rear Axle Level Sensor:
