Home
>>
Mercedes Benz
>>
2012
>>
SLK 250 (172.477) L4-1.8L Turbo (271.861)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Engine
>>
System Specifications
>>
BA03.30-P-1000-01I Flywheel, Driven Plate, Vibration Damper, Starter Ring Gear
BA03.30-P-1000-01I Flywheel, Driven Plate, Vibration Damper, Starter Ring Gear

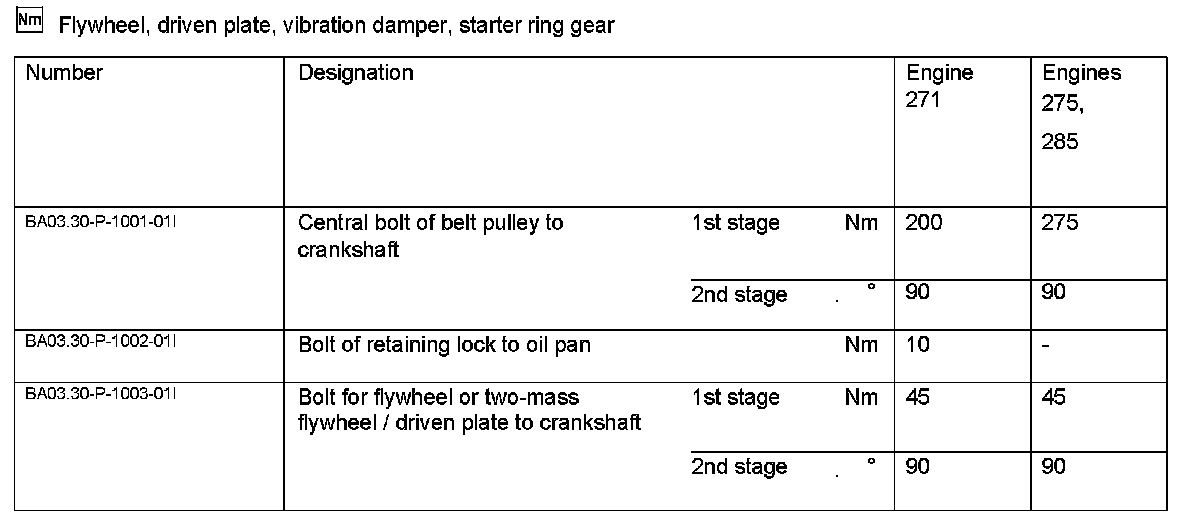

BA03.30-P-1000-01I Flywheel, driven plate, vibration damper, starter ring gear
