Home >> Mercedes Benz >> 2012 >> SLK 250 (172.477) L4-1.8L Turbo (271.861) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> BA03.20-P-1000-02C Balancing Shaft

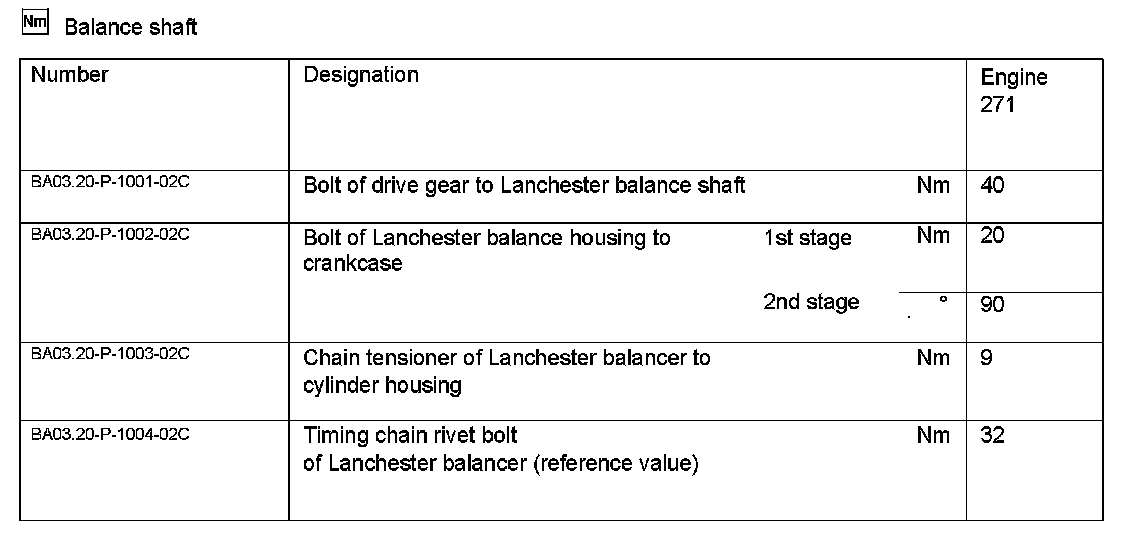

BA03.20-P-1000-02C Balancing Shaft



Balancing shaft
