Home >> Mercedes Benz >> 2012 >> SLK 250 (172.477) L4-1.8L Turbo (271.861) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Cooling System >> System Specifications

System Specifications

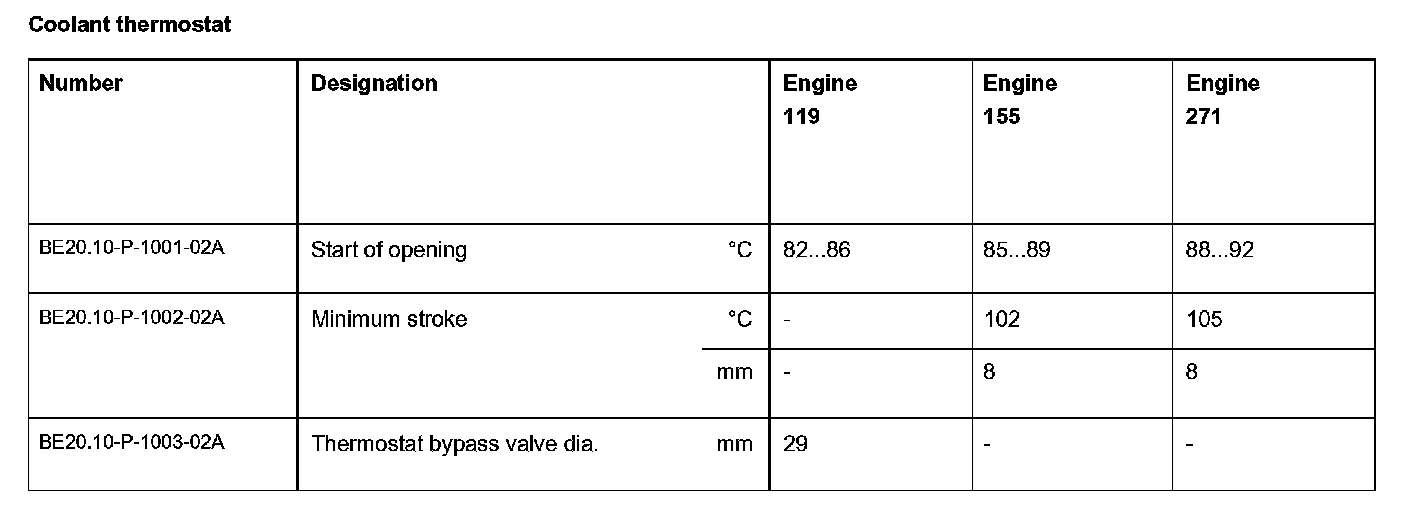

BE20.10-P-1000-02A Coolant thermostat

Coolant thermostat:




Coolant thermostat:
