Home >> Mercedes Benz >> 2012 >> SLK 250 (172.477) L4-1.8L Turbo (271.861) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Automatic Transmission/Transaxle >> Shifter A/T >> BA27.60-P-1000-02A Floor-Mounted Shift

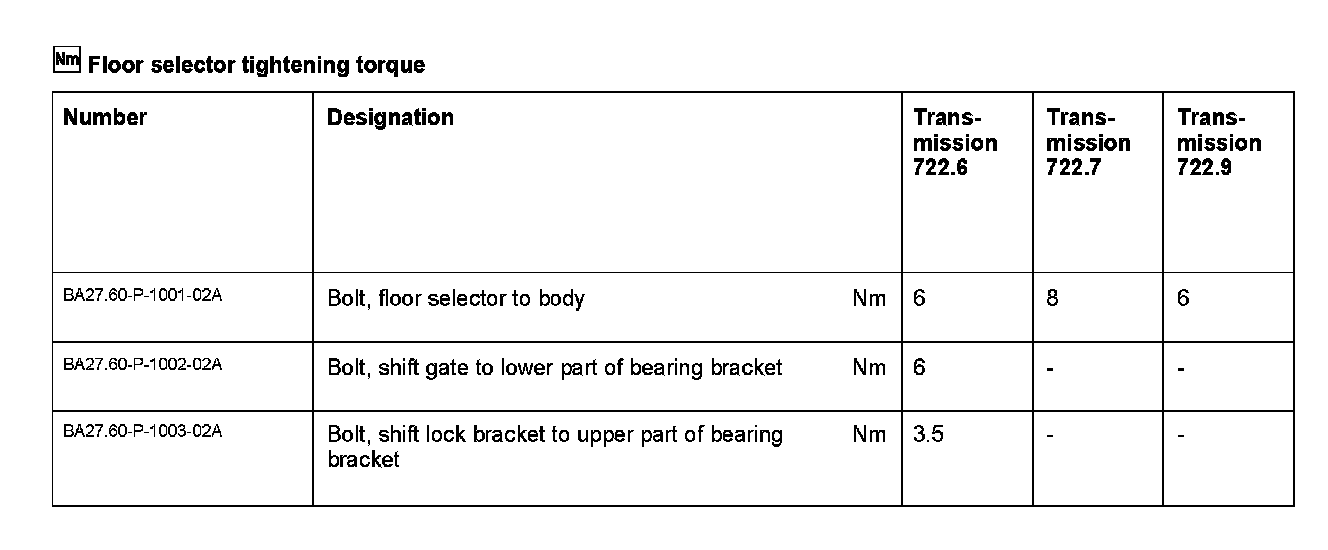

BA27.60-P-1000-02A Floor-Mounted Shift



BA27.60-P-1000-02A Floor-mounted Shift
Transmission 722
