AS77.00-Z-0001-01A Risk of Death Caused By Touching Parts Conducting High Voltages

AS77.00-Z-0001-01A Risk of Death Caused By Touching Parts Conducting High Voltages





MAGIC SKY CONTROL
Parts conducting high voltages have voltages > 120 volts

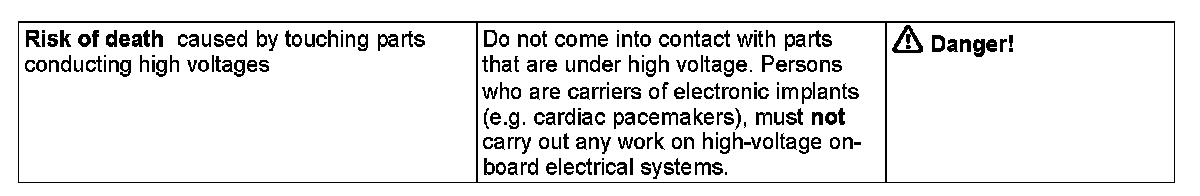

Risk of death caused by electric shock
Burns, fibrillation of the heart or cardiac arrest due to electric shock may occur upon touching components of the high-voltage system. The consequences of an electric shock may also only occur after a few minutes, therefore a doctor should be consulted in every case.

Safety instructions/precautions
Persons who are carriers of electronic implants (e.g. cardiac pacemakers), must not carry out any work on components conducting high voltages.
Open lines and components of the system conducting high voltages must not be touched under any circumstances
This is particularly true for accident vehicles before the MAGIC SKY CONTROL system is disconnected from power.
Do not come into contact with parts that are under high voltage.

When working on components of the MAGIC SKY CONTROL systems such as:
^ Connecting and disconnecting electrical components
^ Replacing parts
^ Connecting test equipment
The ground line must be disconnected from the on-board electrical system battery beforehand and the 12-V connection to the MAGIC SKY CONTROL control unit disconnected.
