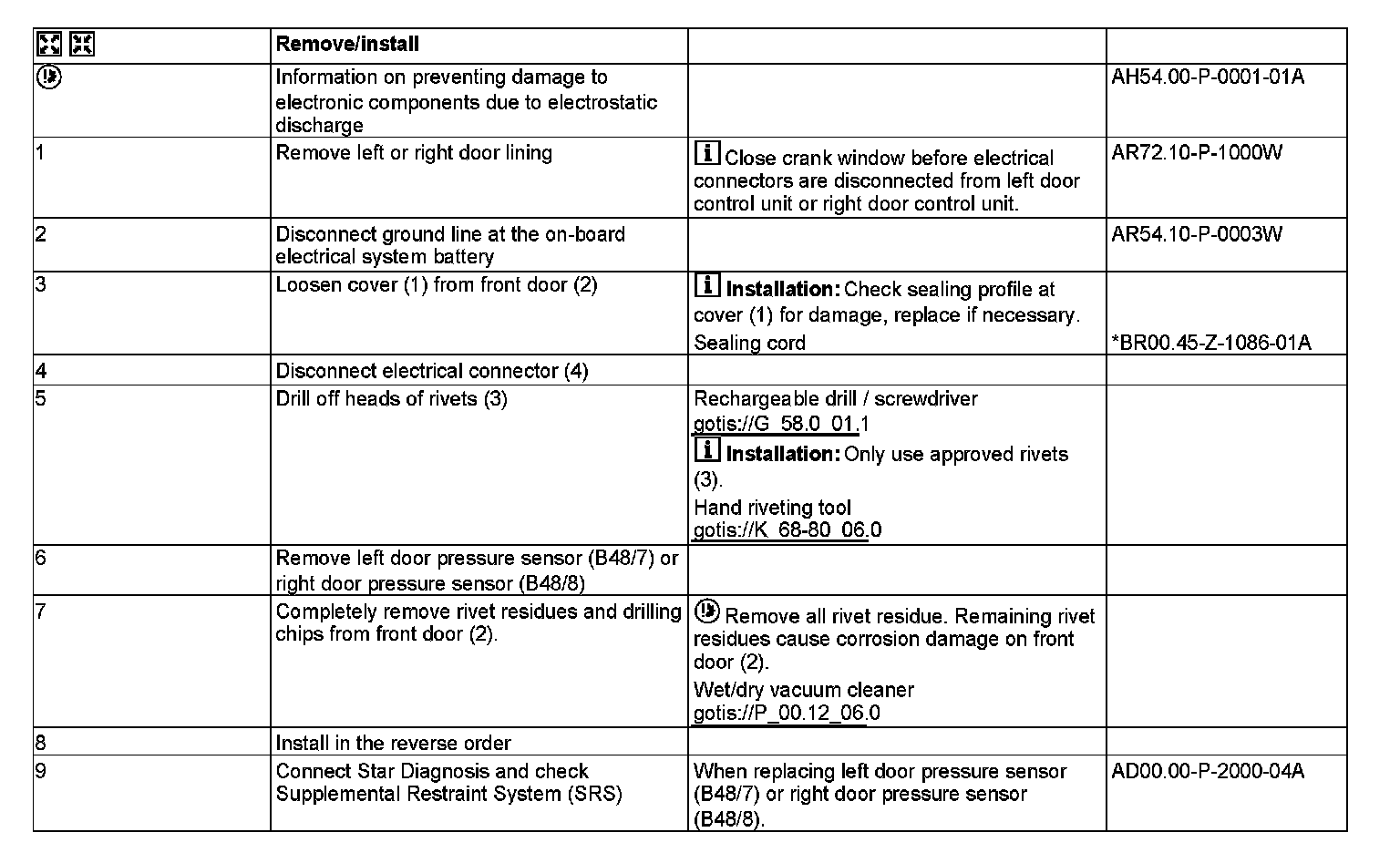

AR91.60-P-0760W Remove/Install Side Deployment Pressure Sensor




AR91.60-P-0760W Remove/Install Side Deployment Pressure Sensor
MODEL 172.4





Shown on left door

1 Cover
2 Door
3 Rivets
4 Electrical connector

B48/7 Left door pressure sensor
B48/8 Right door pressure sensor
