AR91.60-P-0710W Remove/Install Sidebag Sensor

AR91.60-P-0710W Remove/Install Sidebag Sensor
MODEL 172.4

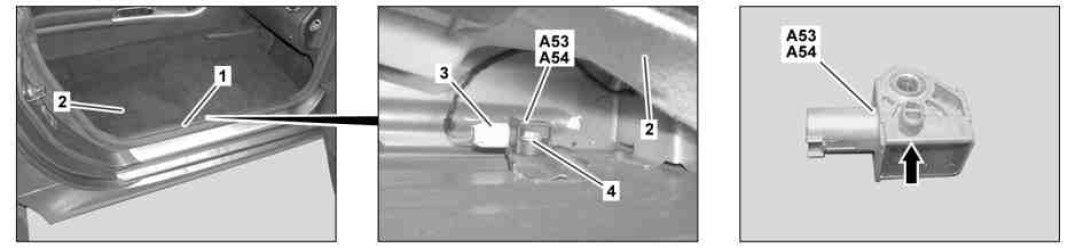

Shown on side of vehicle

1 Cover
2 Floor Covering
3 Electrical connector
4 Screw

A53 Left sidebag sensor
A54 Right sidebag sensor











110 589 03 59 00
Mounting wedge
