Solar Sensor: Service and Repair

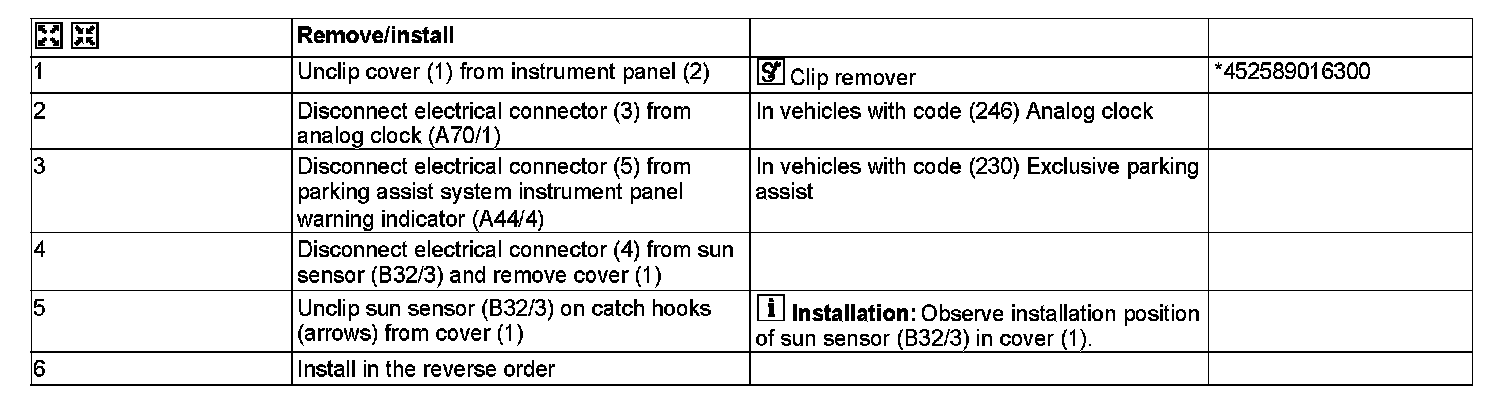

AR83.40-P-6720W Remove/Install Sun Sensor
MODEL 172.4
- with CODE (581) Comfort automatic air conditioning





Shown on code (230) Exclusive parking assist and code (246) Analog clock

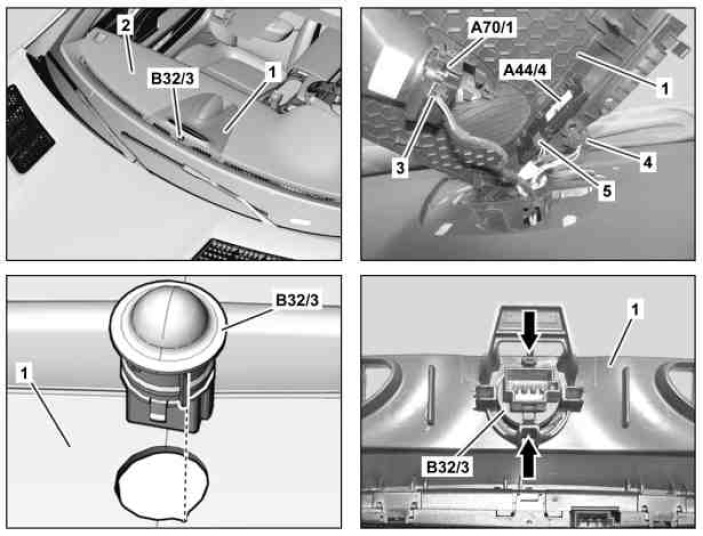

1 Cover
2 Instrument panel
3 Electrical connector (with code (246) Analog clock)
4 Electrical connector
5 Electrical connector (with code (230) Exclusive parking assist)
A44/4 Parking assist system instrument panel warning indicator (with code (230) Exclusive parking assist)
A70/1 Analog clock (with code (246) Analog clock)
B32/3 Sun sensor








452 589 01 63 00
Snap-release tool
