AR42.40-P-0820V Remove/Install Left or Right Rear Axle Speed Sensor



AR42.40-P-0820V Remove/install left or right rear axle speed sensor

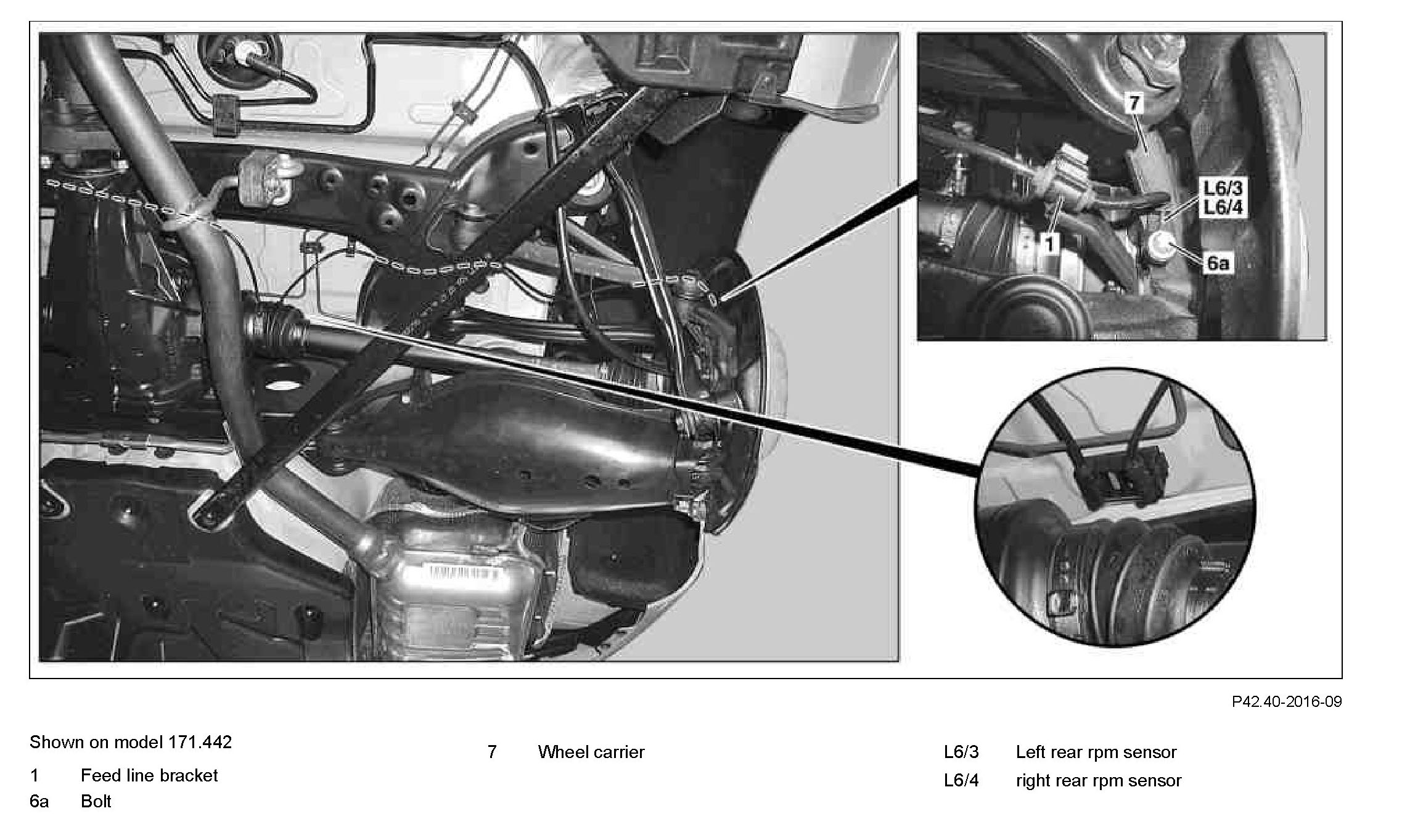

Component Identification:

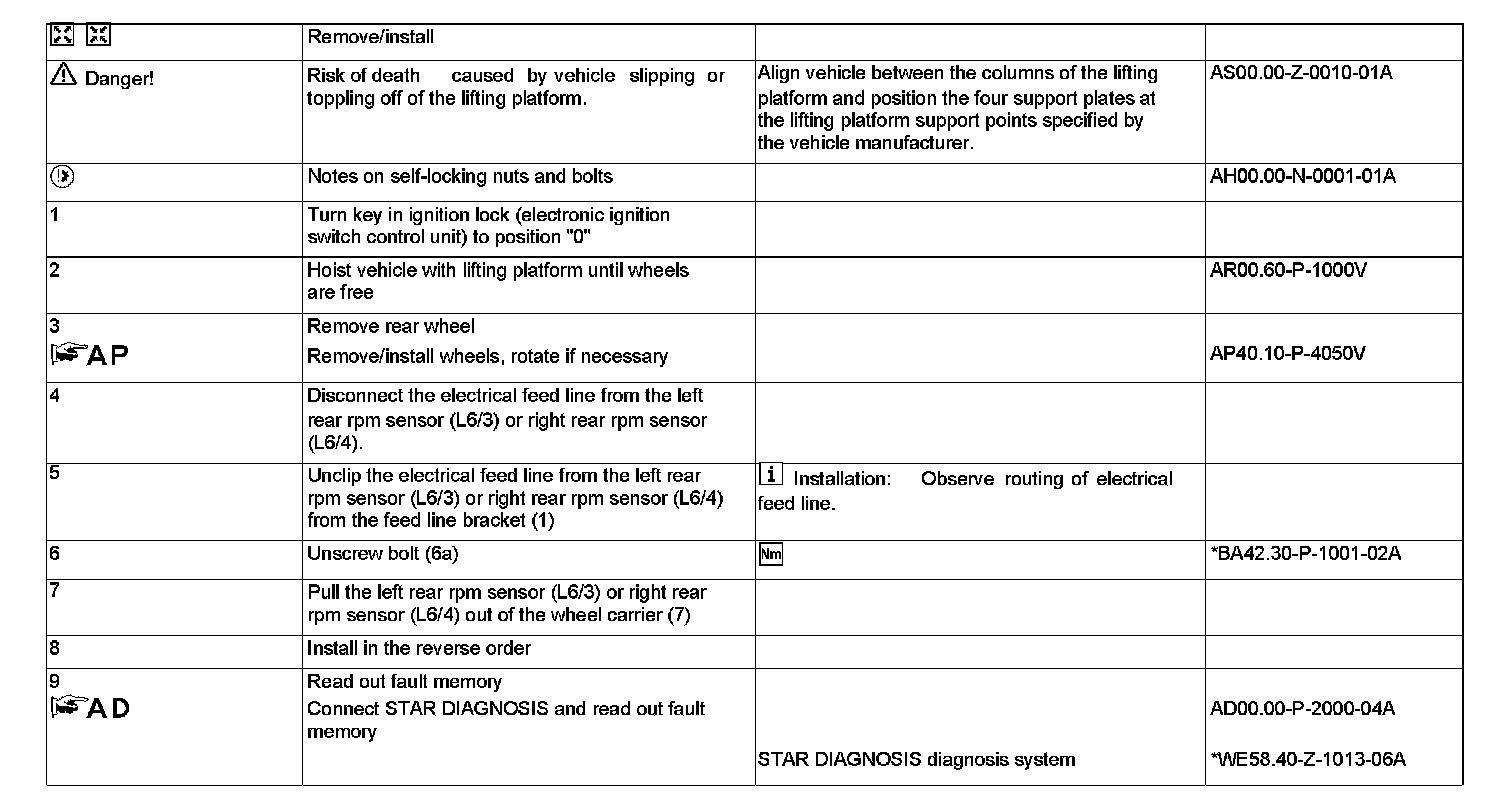

Steps 1-9:

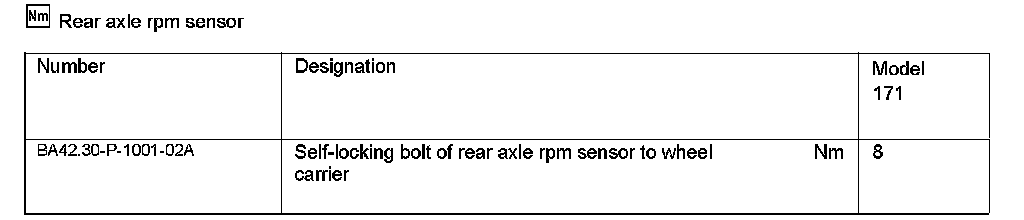

Rear Axle Rpm Sensor:

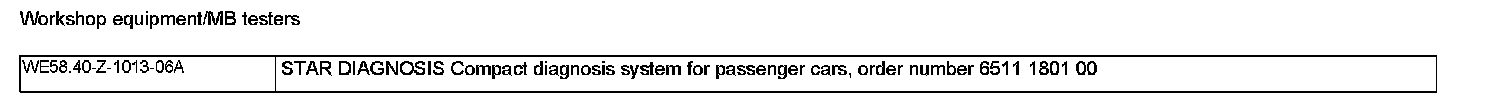

Workshop Equipment/MB Testers:
