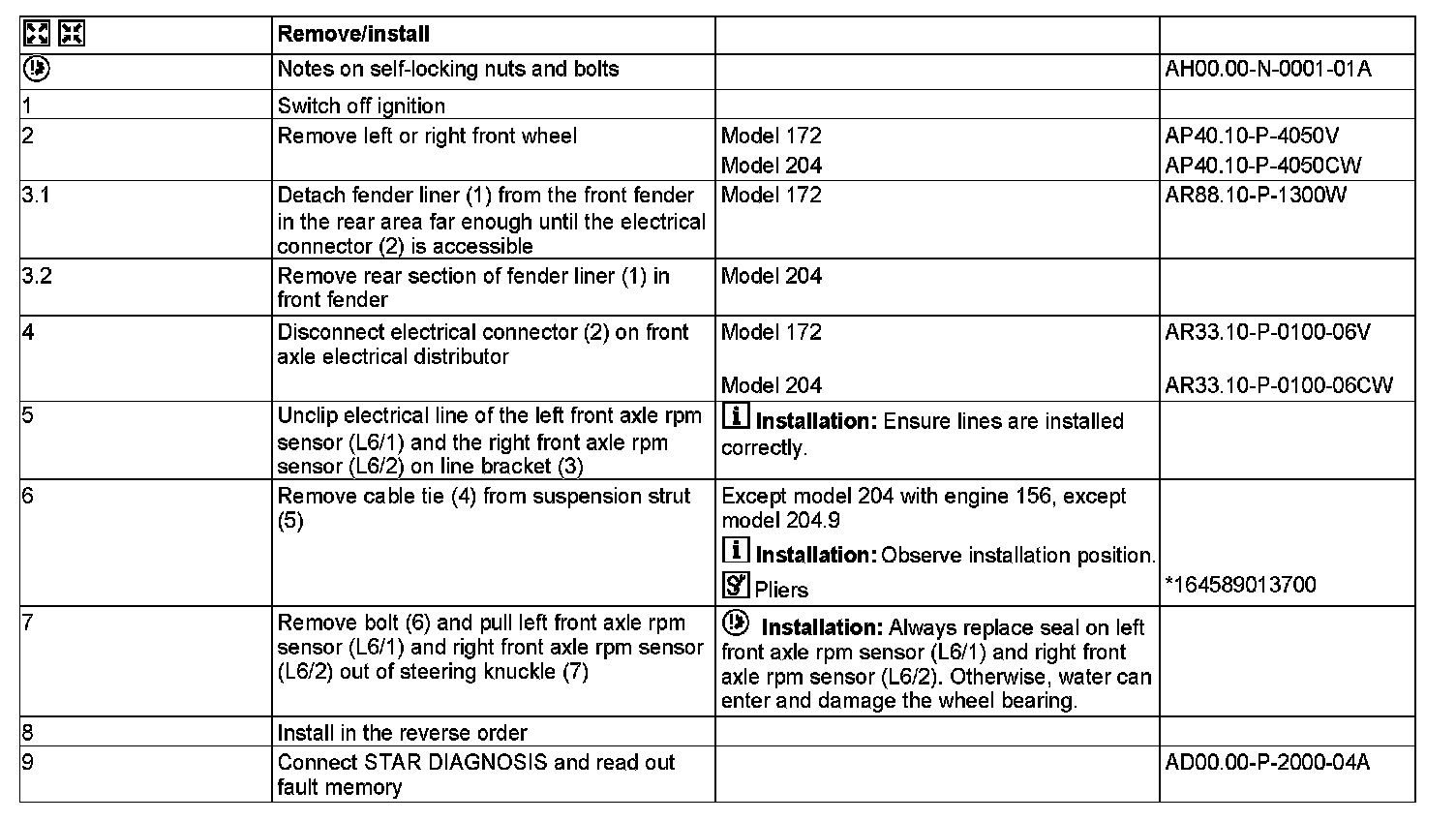

AR42.30-P-0712CW Remove/Install Left Front or Right RPM Sensor

AR42.30-P-0712CW Remove/Install Left Front Or Right Rpm Sensor
MODEL 172, 204

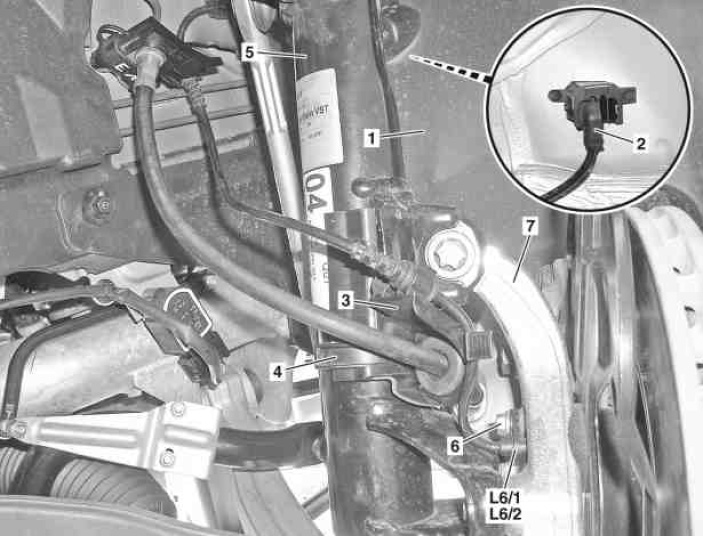

Shown on model 204

1 Fender liner
2 Electrical connector
3 Line bracket
4 Cable tie
5 Suspension strut
6 Screw
7 Steering knuckle

L6/1 Left front axle speed sensor
L6/2 Right front axle speed sensor











164 589 01 37 00
Pliers
