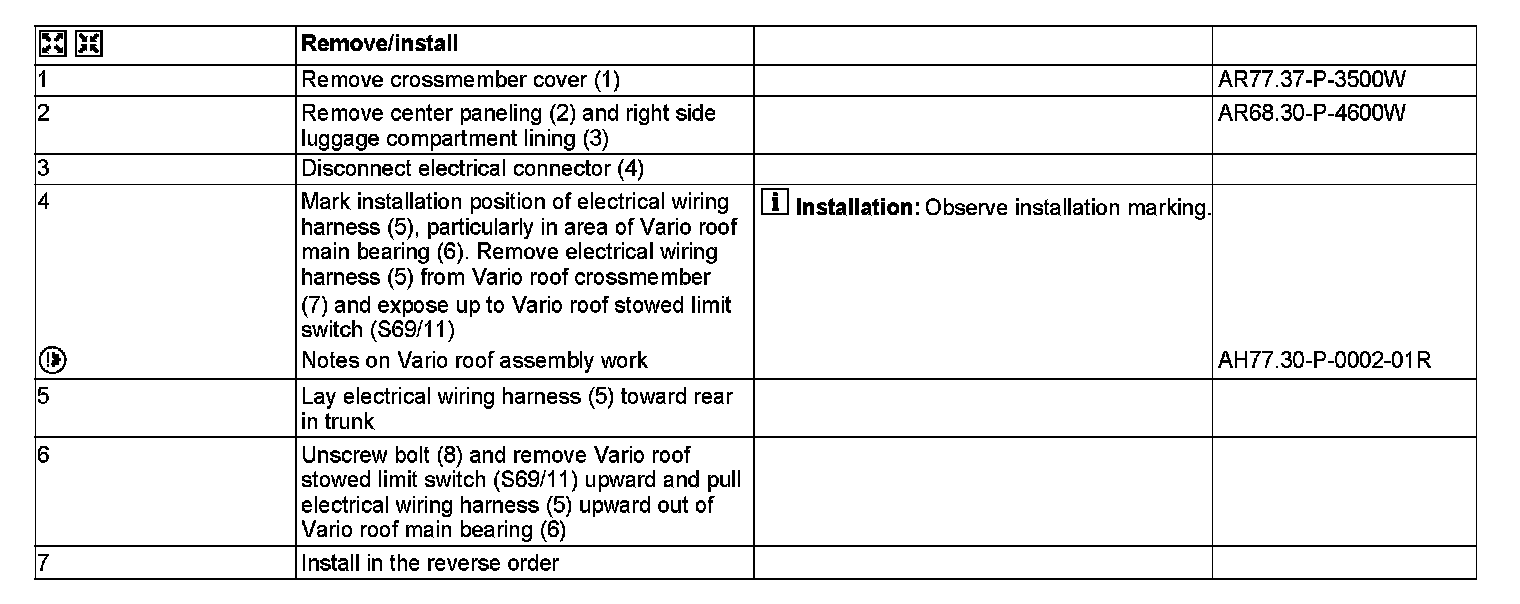

AR77.39-P-3694W Remove/Install Vario Roof Limit Switch (Stowed)

AR77.39-P-3694W Remove/Install Vario Roof Limit Switch (stowed)
MODEL 172.4

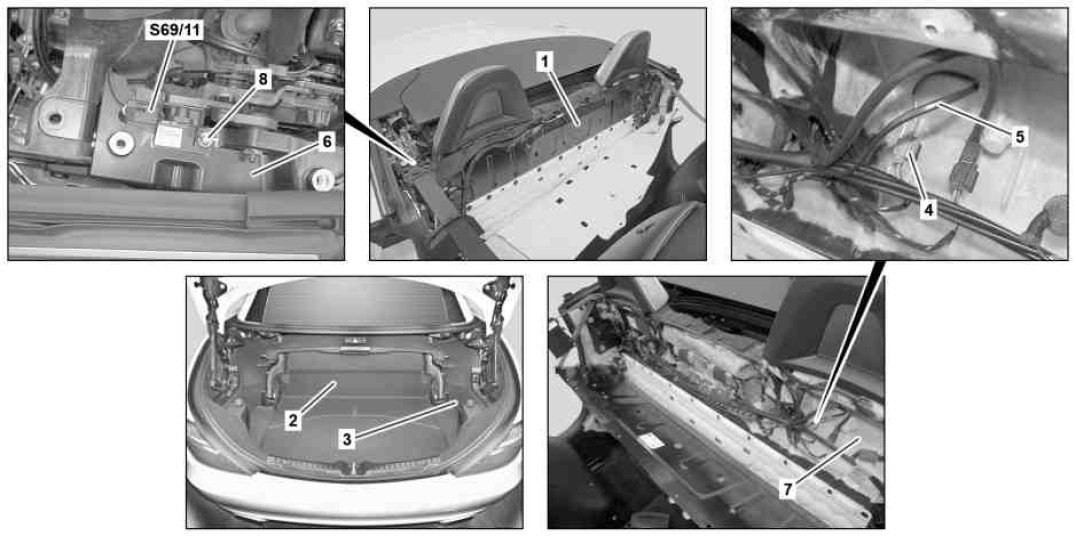

1 Crossmember cover
2 Center trim
3 Side luggage compartment lining
4 Electrical connector
5 Wiring harness
6 Vario roof main bearing
7 Vario roof crossmember
8 Screw

S69/11 Vario roof 'Stowed' limit switch
