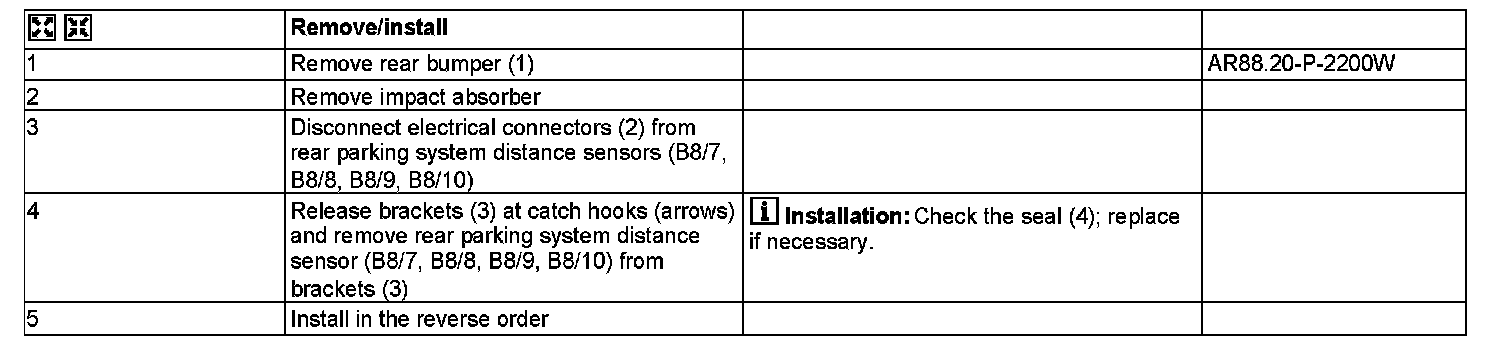

AR54.65-P-0002MMI Remove/Install Parktronic System (PTS) Sensors In Rear Bumper

AR54.65-P-0002MMI Remove/Install Parktronic System (PTS) Sensors In Rear Bumper
MODEL 172.4
- with CODE (230) Advanced Parking Guidance

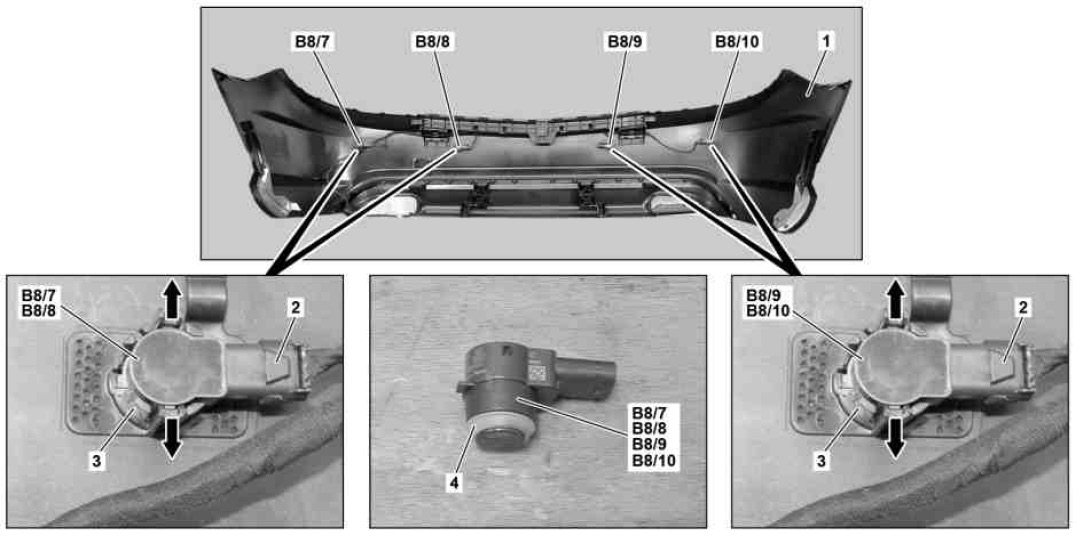

1 Bumper
2 Electrical connectors
3 Bracket
4 Seal
B8/7 Outer right rear parking system distance sensor
B8/8 Inner right rear parking system distance sensor
B8/9 Inner left rear parking system distance sensor
B8/10 Outer left rear parking system distance sensor
