Seat Belt: Service and Repair

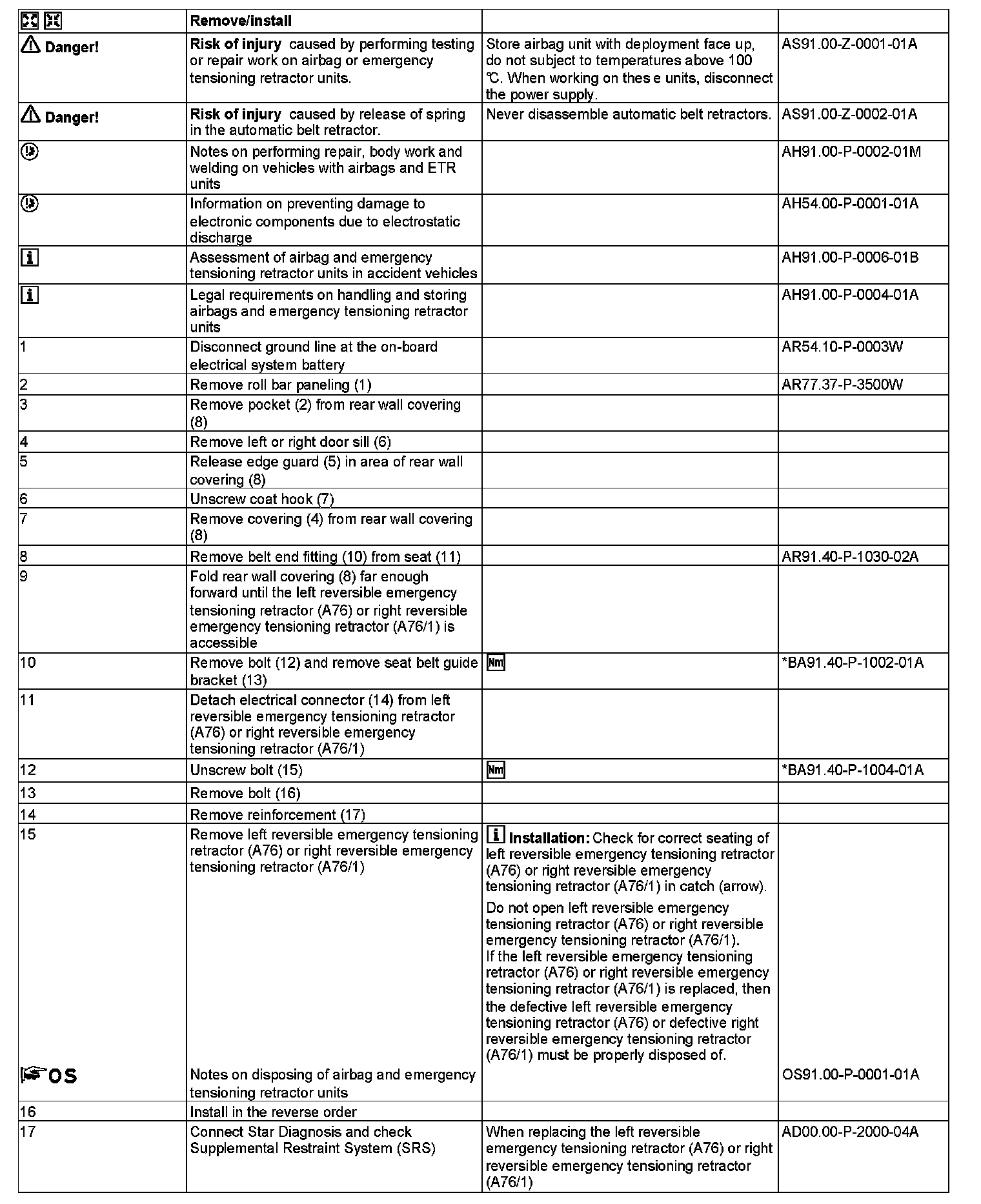

AR91.40-P-1030W Remove/Install Seat Belt
MODEL 172.4

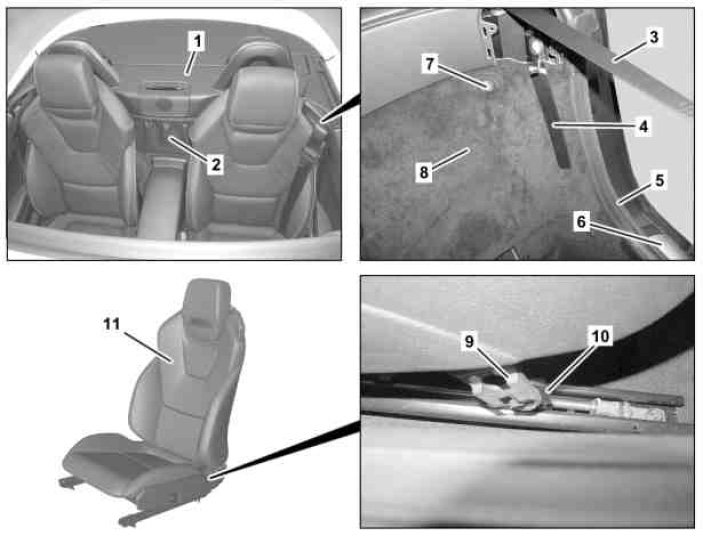

Shown on left side of vehicle

1 Roll bar paneling
2 Pocket
3 Seat belt
4 Cover
5 Edge guard
6 Door sill molding
7 Coat hanger hook
8 Rear wall cover
9 Securing clamp
10 Belt end fitting
11 Seat

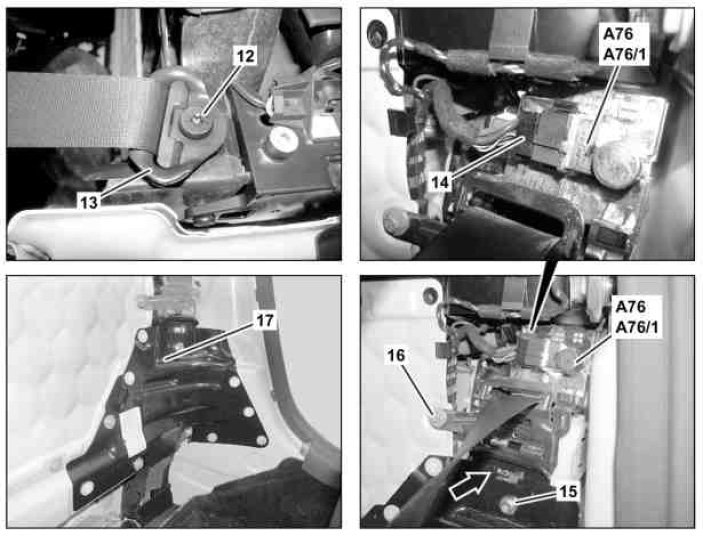

Shown on left side of vehicle

12 Screw
13 Seat belt guide bracket
14 Electrical connector
15 Screw
16 Screw
17 Reinforcement

A76 Left reversible emergency tensioning retractor
A76/1 Right reversible emergency tensioning retractor
