AR91.40-P-1515CW Remove/Install Seat Belt Buckle (Front Seat)

AR91.40-P-1515CW Remove/Install Seat Belt Buckle (Front Seat)
MODEL 204, 207, 212, 218
MODEL 463.222 /270 /271 /303 /340 /341
as of model year 2010
MODEL 463.306 /336
MODEL 463.202 /236 /237 up to model year 2013
as of model year 2010, /model refinement package 2012
MODEL 463.346 up to model year 2013 /model refinement package 2012

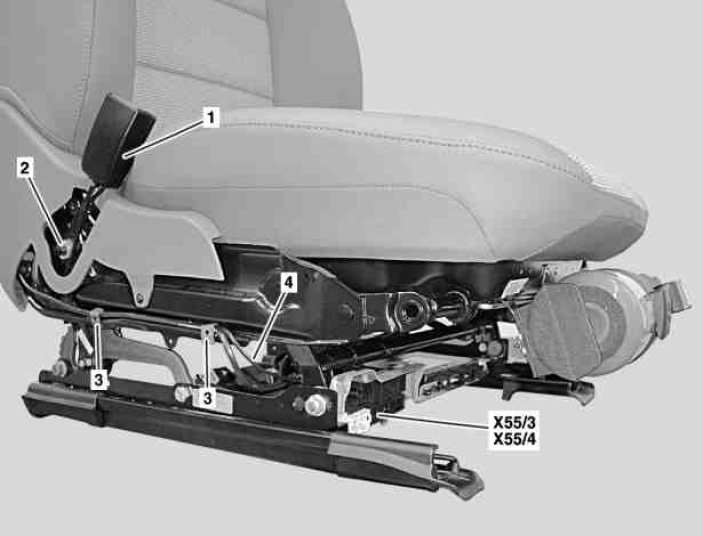

Shown on model 204.052, left front seat

1 Seat belt buckle
2 Nut
3 Clamp
4 Wiring harness

X55/3 Driver seat connector block
X55/4 Front passenger seat connector block
