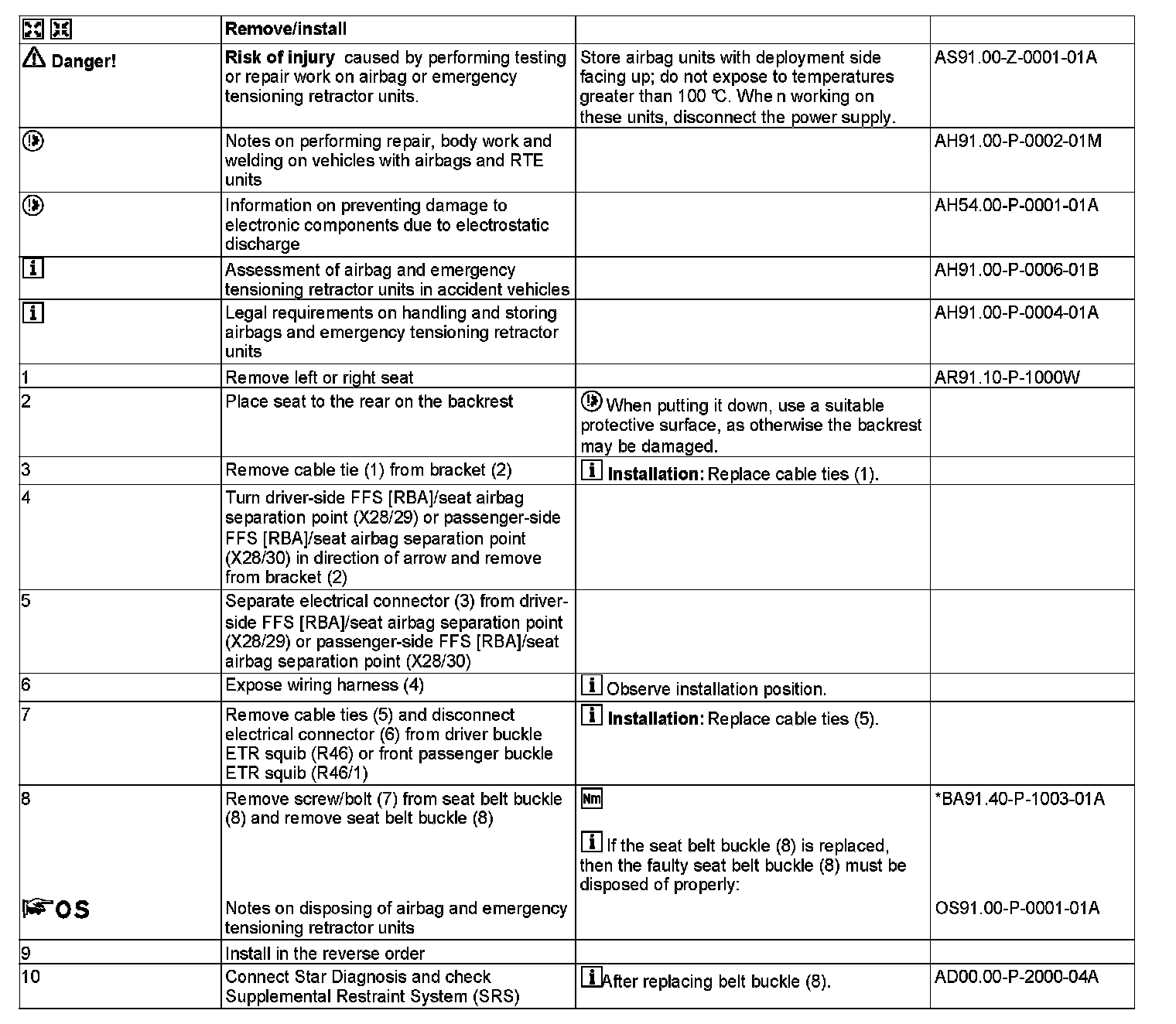

AR91.40-P-1510W Remove/Install Seat Belt Buckle for Front Seat

AR91.40-P-1510W Remove/Install Seat Belt Buckle For Front Seat
MODEL 172.4





Shown on right seat

1 Cable tie
2 Bracket
3 Electrical connector
4 Wiring harness
5 Cable tie
6 Electrical connector
7 Screw

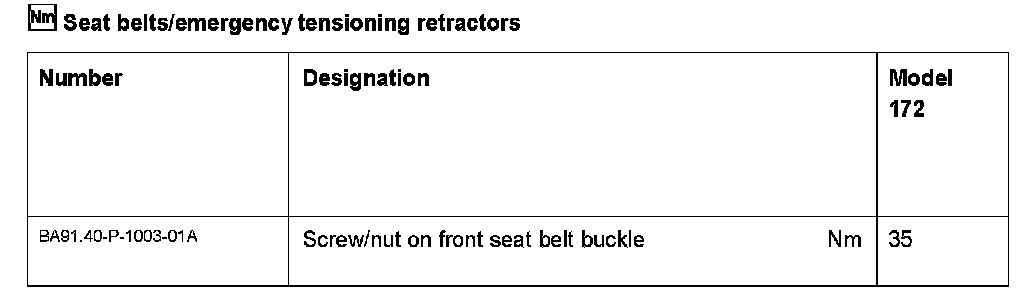

8 Seat belt buckle

R46 Driver buckle RTE squib
R46/1 Front passenger buckle RTE squib
X28/29 Driver seat/frame floor assembly airbag connecting point
X28/30 Front passenger seat/frame floor assembly airbag connecting point
