AR91.40-P-1030-02A Detach/Attach Belt End Fitting

AR91.40-P-1030-02A Detach/Attach Belt End Fitting

Removing

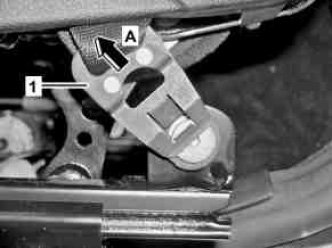

1 Pull belt end fitting (1) upward (arrow A).





Shown on model 172

2 Press spring (2) down slightly (approx. 2 mm) by hand (arrow B1). Press belt end fitting (1) down (arrow B2).





Shown on model 172

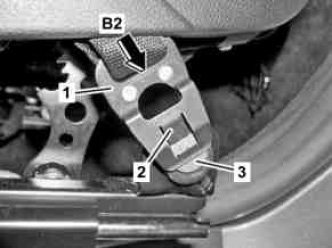

3 Spring (2) must make contact with belt screw/bolt (3). Press belt end fitting (1) down (arrow B2).





Shown on model 172

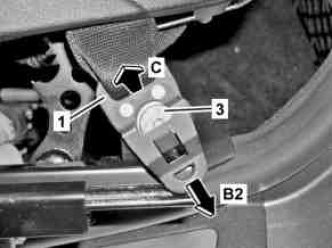

4 Press belt end fitting (1) down (arrow B2) until it makes contact with belt screw/bolt (3). Remove belt end fitting (1) upwards (arrow C) from belt screw/bolt (3).





Shown on model 172

Install

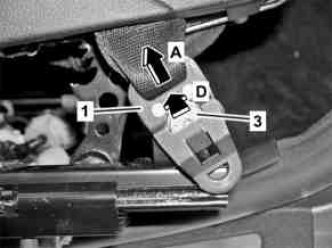

5 Position belt end fitting (1) on belt screw/bolt (3) (arrow D). Pull belt end fitting (1) upward (arrow A).





Shown on model 172

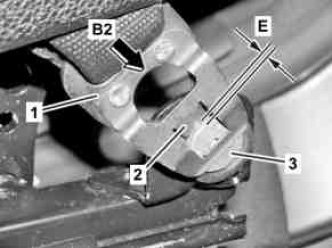

6 Press belt end fitting (1) down (arrow B2).Spring (2) must make contact at bolt head of belt screw/bolt (3). Dimension "E" must be at least 1.7 mm.
7 Have engagement checked by 2nd person.





Shown on model 172
