Seat Belt Control Module: Service and Repair

AR91.60-P-0623W Remove/Install Airbag, Sidebag and Emergency Tensioning Retractor Control Unit
MODEL 172.4

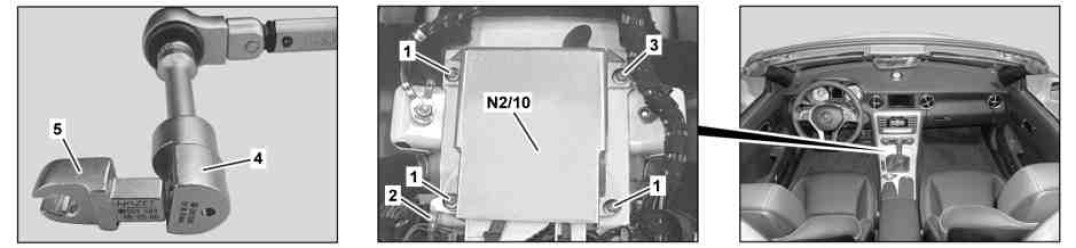

1 Screw
2 Ground cable
3 Screw
4 Angled piece
5 Box wrench bit

N2/10 Supplemental restraint system control unit











001 589 01 16 07
Angled piece





001 589 00 03 00
Box wrench bit
