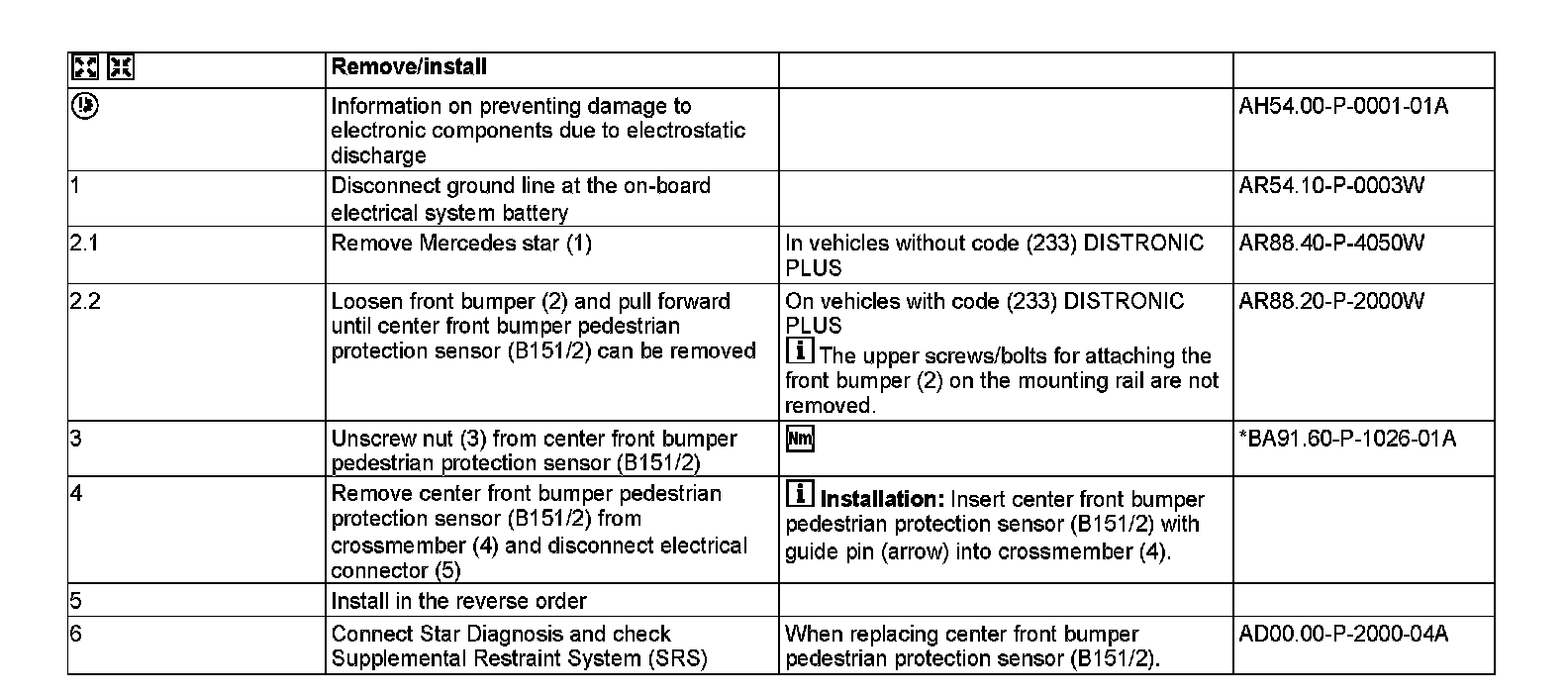

AR91.60-P-0950W Remove/Install Pedestrian Protection Sensor

AR91.60-P-0950W Remove/Install Pedestrian Protection Sensor
MODEL 172.4
- with CODE (U60) Pedestrian protection

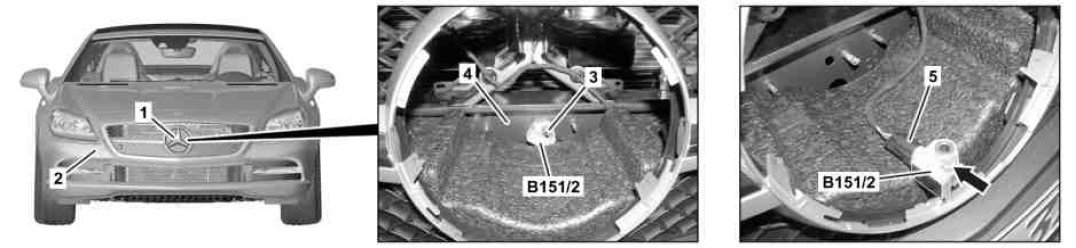

Sensor on crossmember





Shown on vehicles without code (233) DISTRONIC PLUS

1 Mercedes star
2 Front bumper
3 Nut
4 Crossmember
5 Electrical connector

B151/2 Center front bumper pedestrian protection sensor
