AR91.60-P-0750W Remove/Install Frontal Acceleration Sensor

AR91.60-P-0750W Remove/Install Frontal Acceleration Sensor

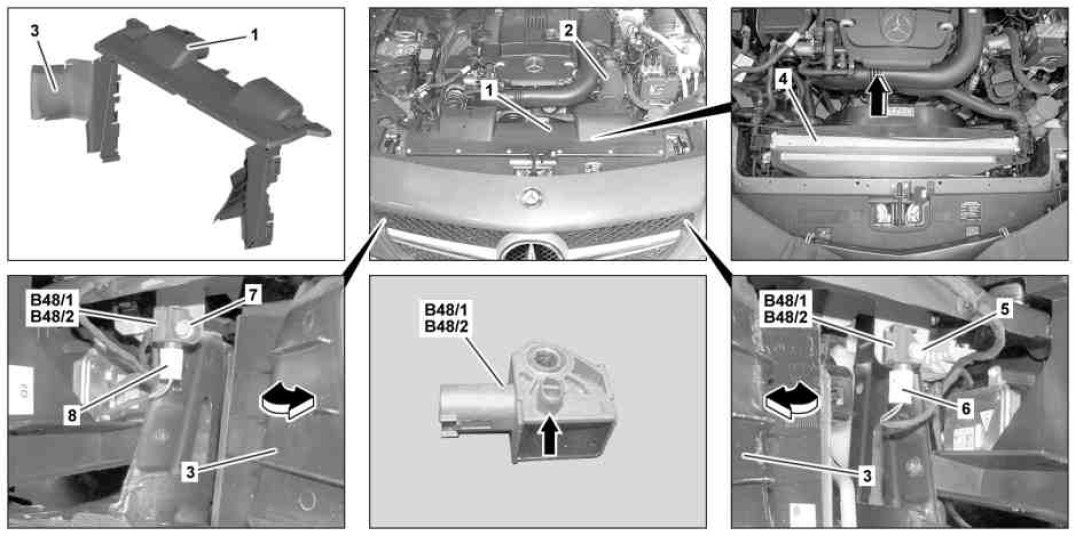

MODEL 172.4





Shown on vehicle with engine 271.861

1 Top radiator cover
2 Hose
3 Air deflector
4 Radiator
5 Screw
6 Electrical connector
7 Screw
8 Electrical connector

B48/1 Left frontal acceleration sensor
B48/2 Right frontal acceleration sensor
