AR91.60-P-0697W Remove/Install Headbag

AR91.60-P-0697W Remove/Install Headbag
MODEL 172.4

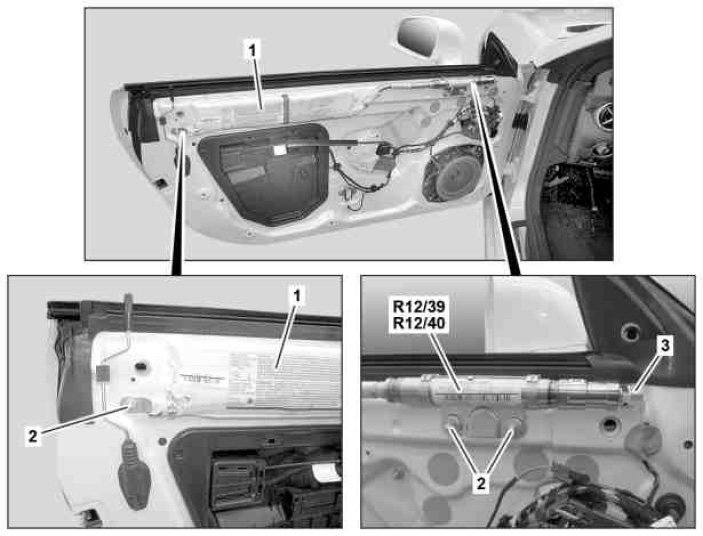

Shown on left front door

1 Headbag unit
2 Nuts
3 Electrical connector

R12/39 Left headbag squib
R12/40 Right headbag squib
