AR77.37-P-4205-01V Prepare Test Valve Block

AR77.37-P-4205-01V Prepare Test Valve Block

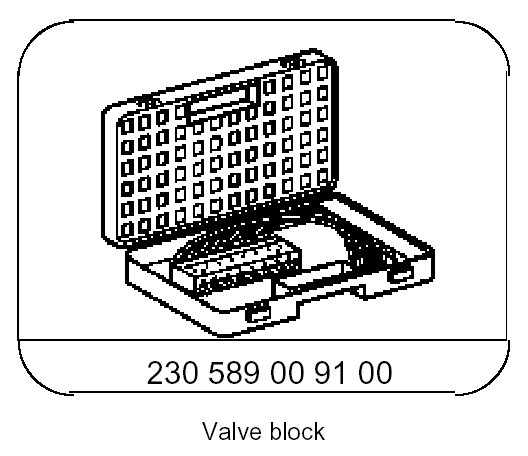

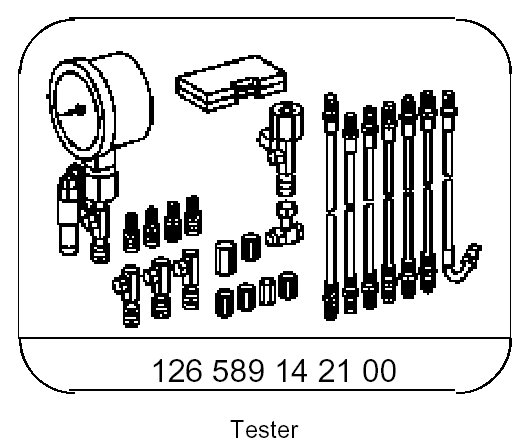

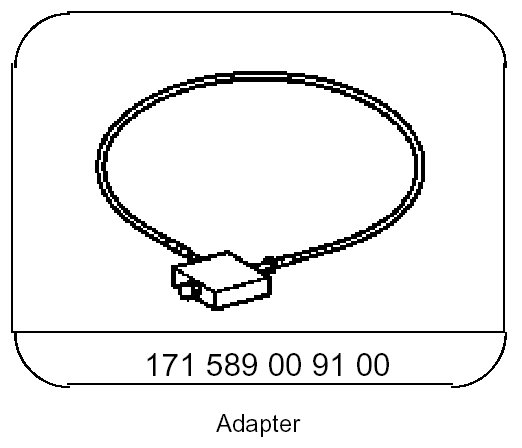

Special Tool:

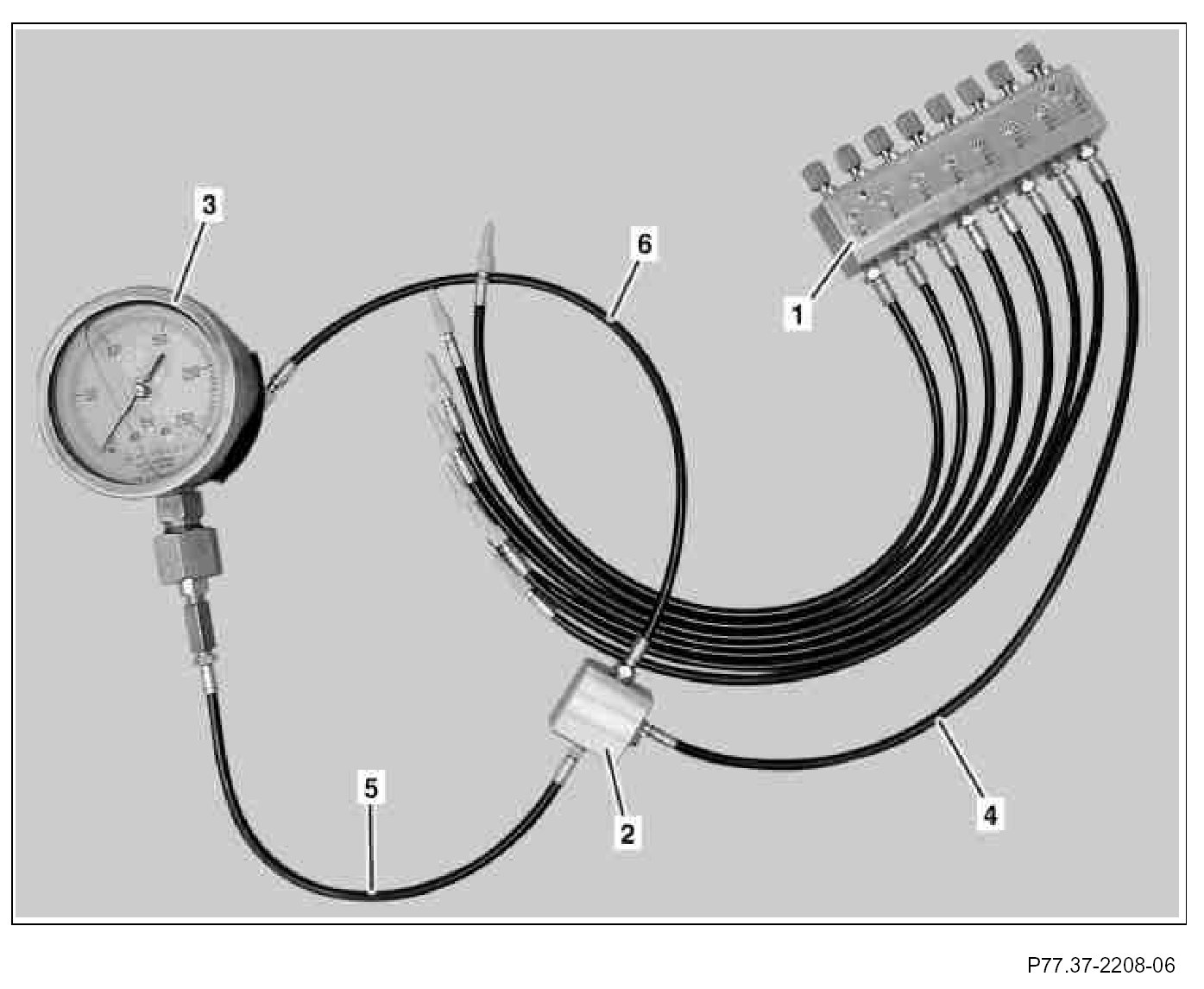

1. Connect right outer test line (4) of test valve block (1) to adapter (2).
2. Connect pressure gauge (3) to adapter (2) with line (5).
3. Connect adapter line (6) to adapter (2).
4. Plug open connections of all lines with appropriate stop plugs.
