Fuel Pump Control Unit: Service and Repair

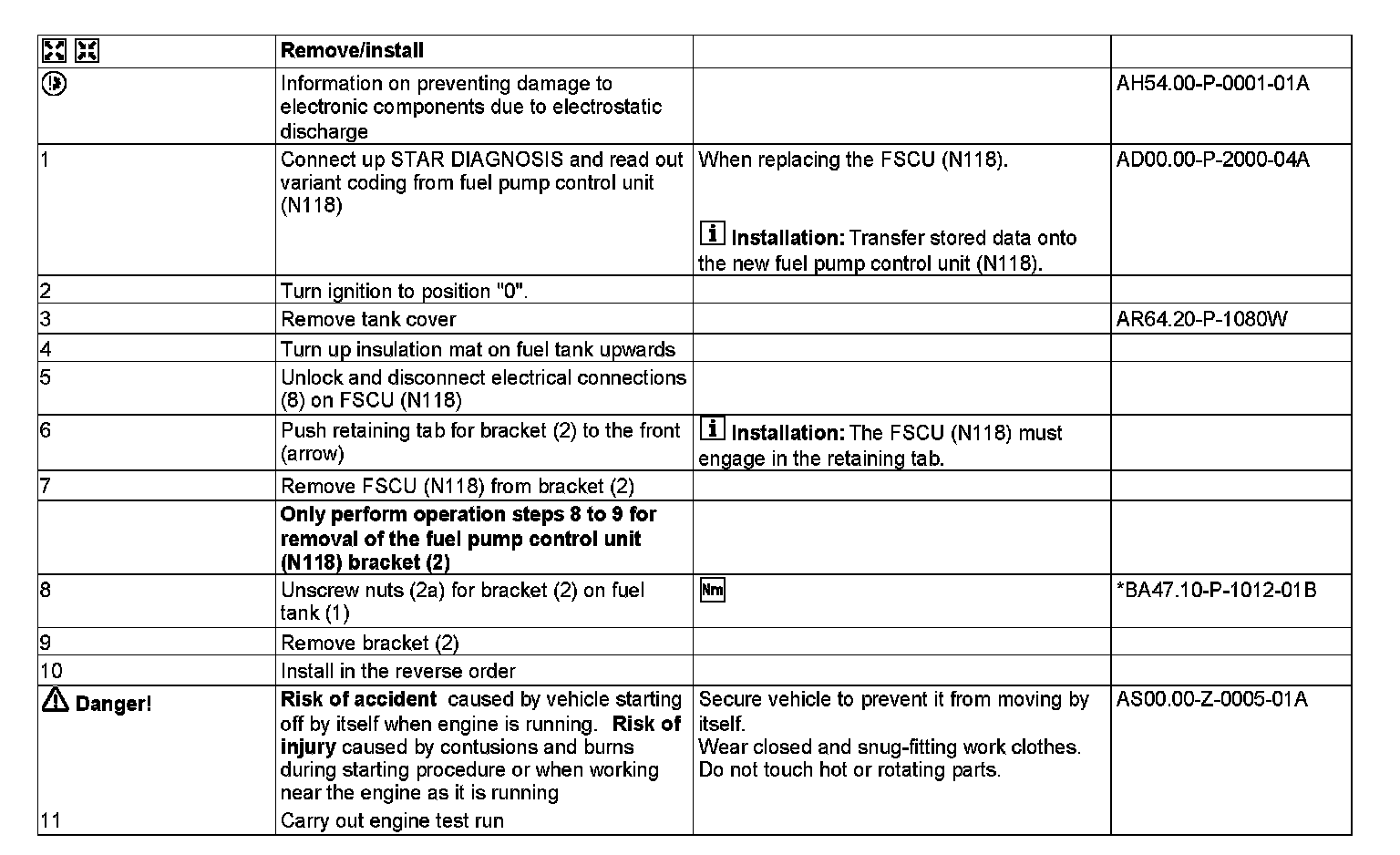

AR47.20-P-5717W Remove/Install Fuel Pump Control Unit
ENGINES 152, 271, 276, 651 in MODEL 172

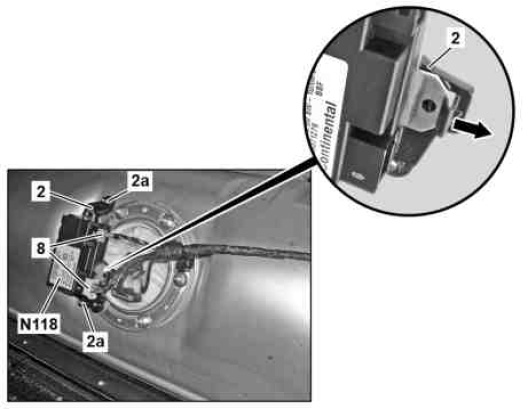

2 Bracket
2a Nut
8 Electrical connector

N118 Fuel pump control unit
