Ignition Coil: Service and Repair

Replace connector on ignition coils

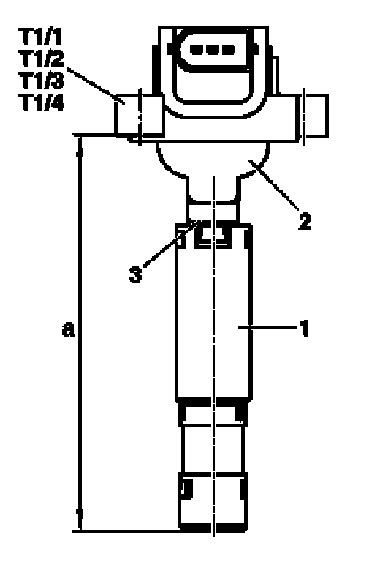

1 Detach connector (1 ) from housing (2) of ignition coil on cylinder 1 to cylinder 4 (T1/1 to T1/ 4). 2 Move connector (1 ) on housing (2) until the starting position is reached. m The starting position is reached if the chamfer (3) on housing (2) starts to become visible and dimension (a) is achieved.
