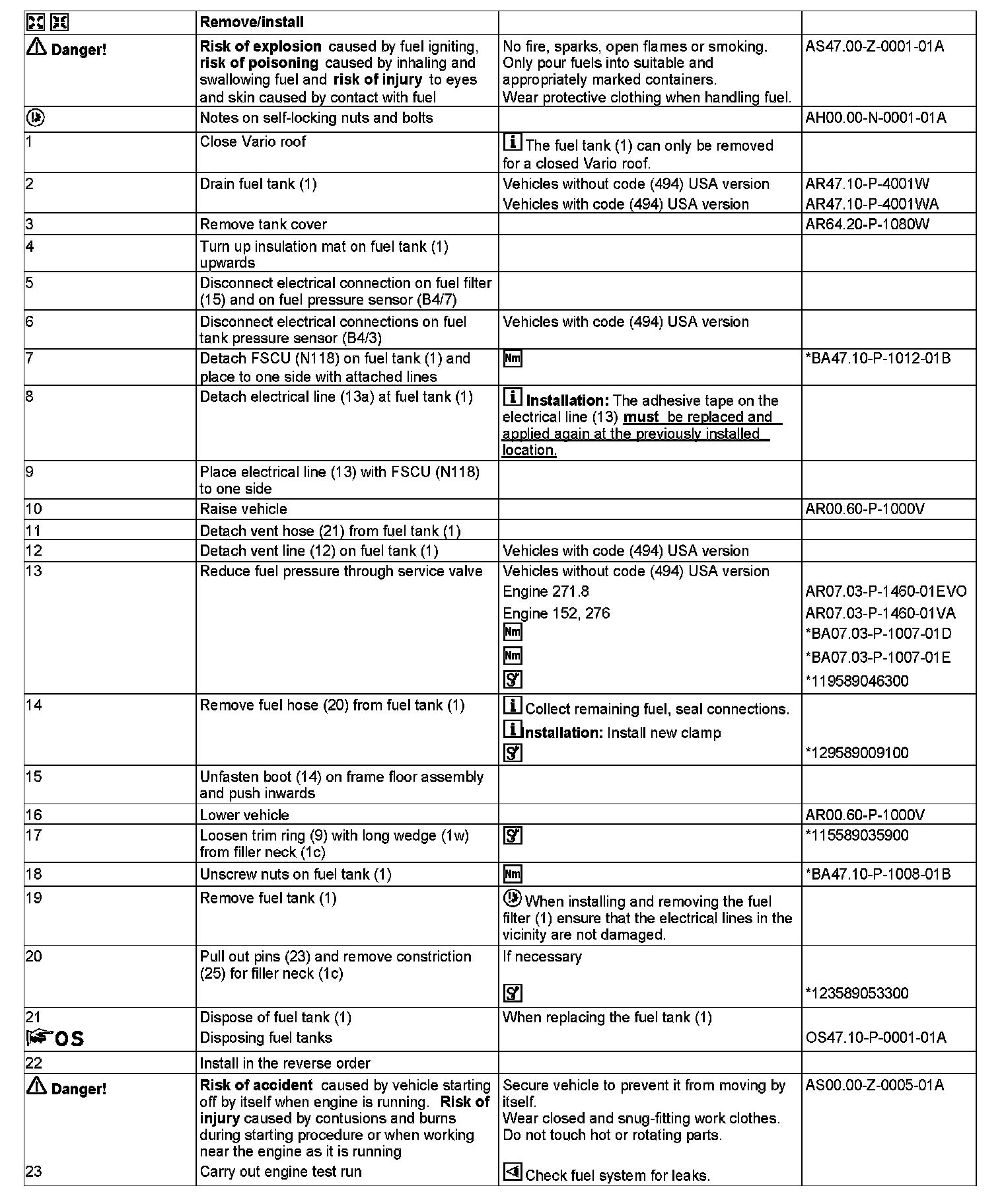

Removal and Replacement

AR47.10-P-4100W Remove/Install Fuel Tank
MODEL 172 with ENGINE 152, 271.8, 276





Vehicle without code (494) USA version

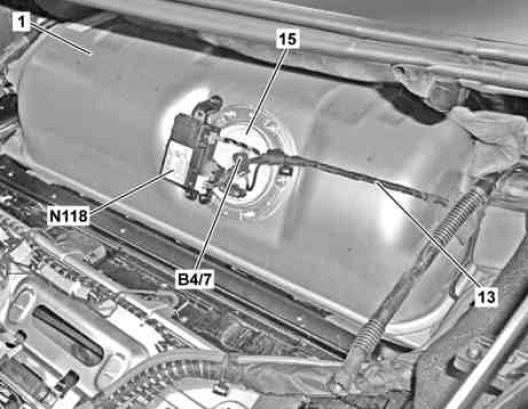

1 Fuel tank
13 Electrical line
15 Fuel filter

B4/7 Fuel pressure sensor
N118 Fuel pump control unit





Vehicle with code (494) USA version

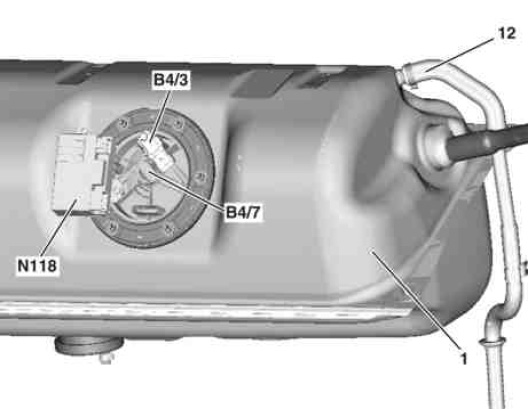

1 Fuel tank
12 Vent line

B4/3 Fuel tank pressure sensor
B4/7 Fuel pressure sensor
N118 Fuel pump control unit





1c Filler neck
1w Long wedge
9 Trim ring
14 Boot
20 Fuel hose
21 Vent hose
23 Pins
25 Constriction














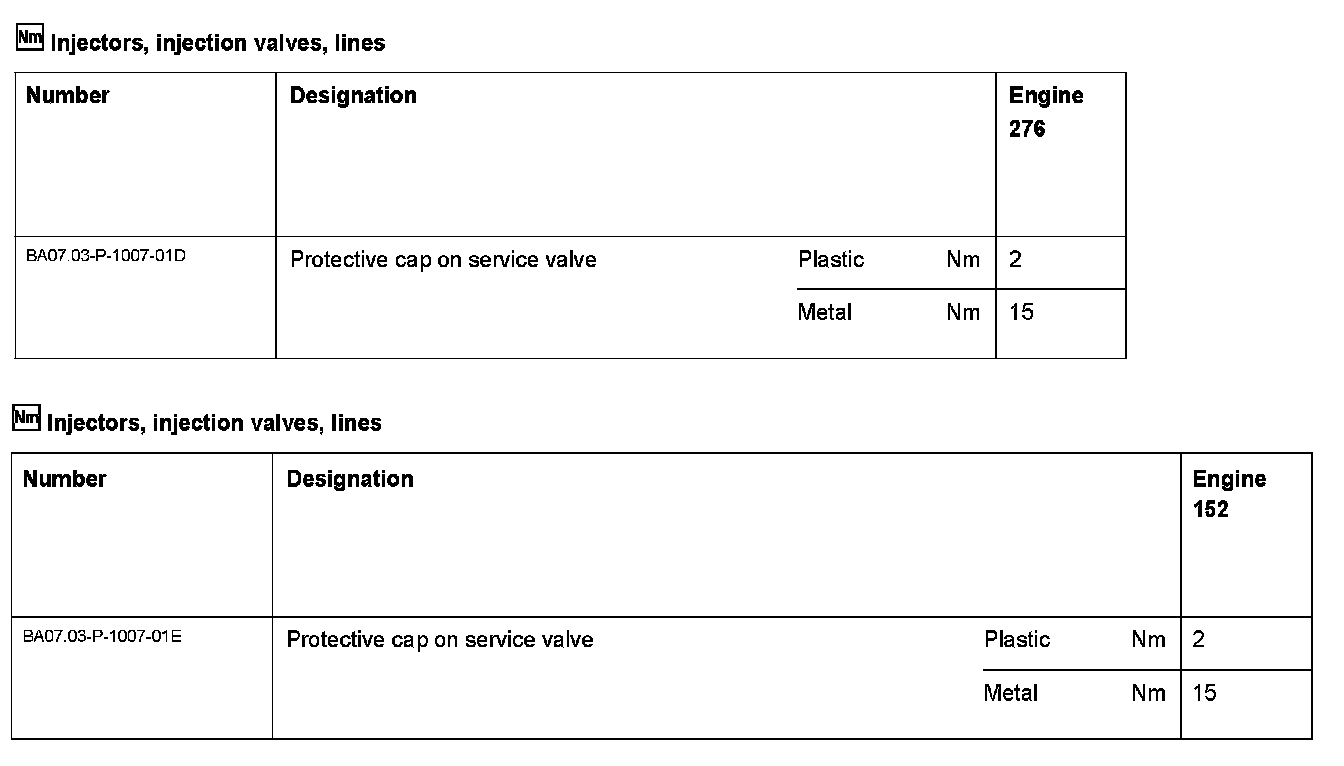

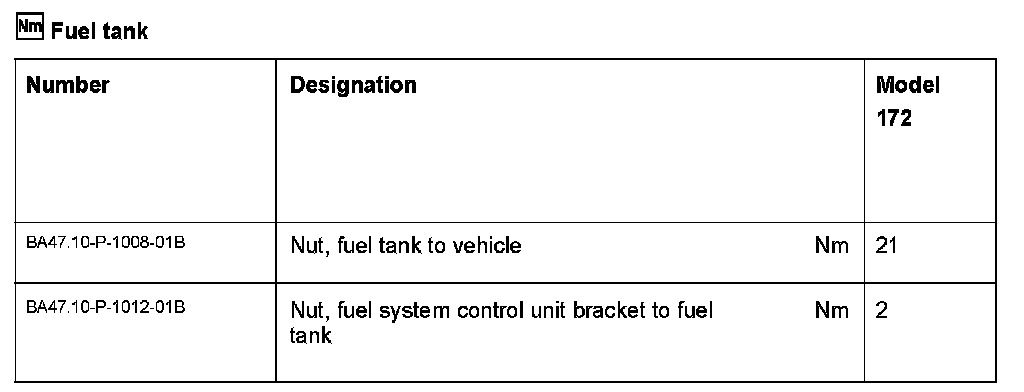

123 589 05 33 00
Puller





129 589 00 91 00
Set of stop plugs





119 589 04 63 00
Pressure hose





115 589 03 59 00
Long wedge
