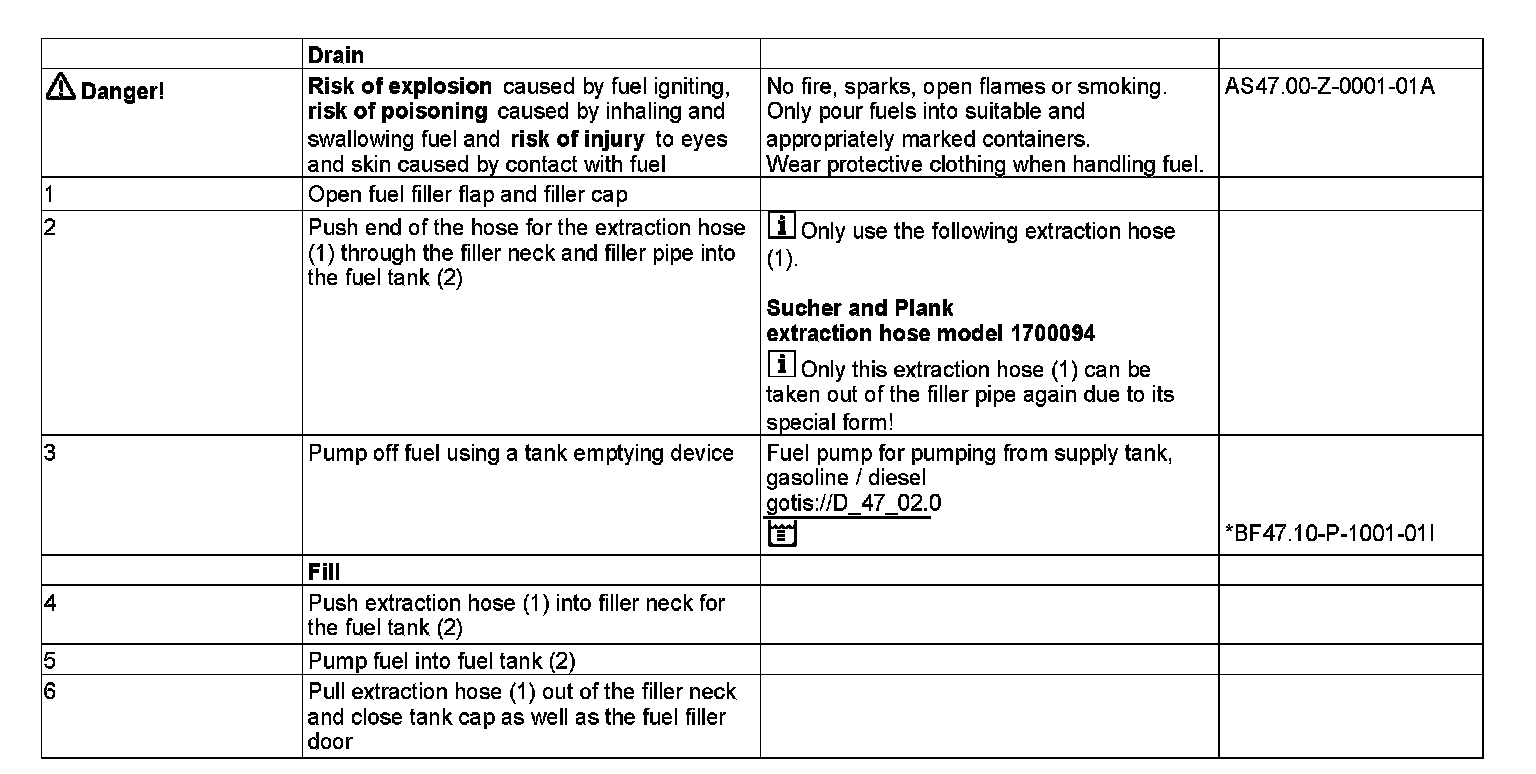

AR47.10-P-4001W Empty/Fill Fuel Tank




AR47.10-P-4001W Empty/Fill Fuel Tank
MODEL 172 with ENGINE 152, 271, 276
- except CODE (494) USA version

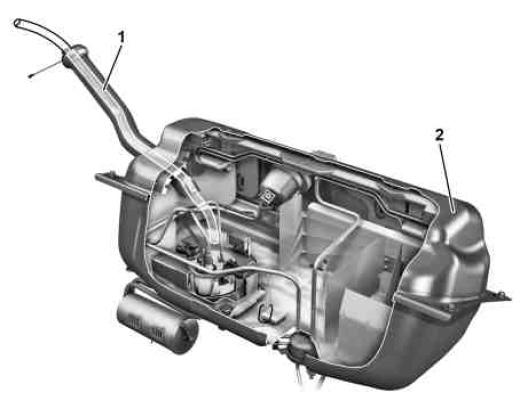

1 Suction hose
2 Fuel tank
