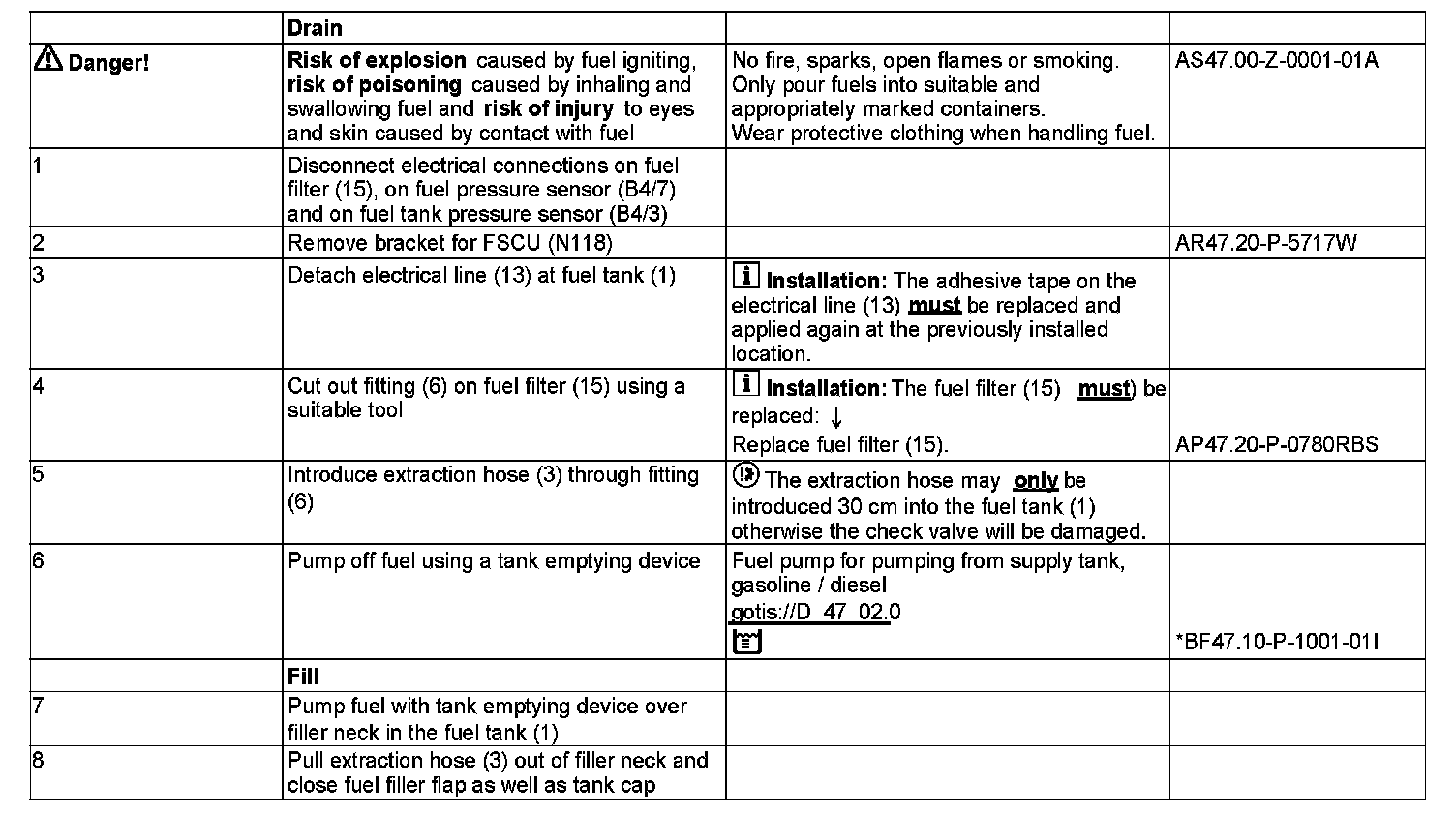

AR47.10-P-4000WA Empty Fuel Tank on Systems With Faulty Fuel Pumps

AR47.10-P-4000WA Empty Fuel Tank on Systems With Faulty Fuel Pumps
MODEL 172 with ENGINE 271.8, 276
- with CODE (494) USA version

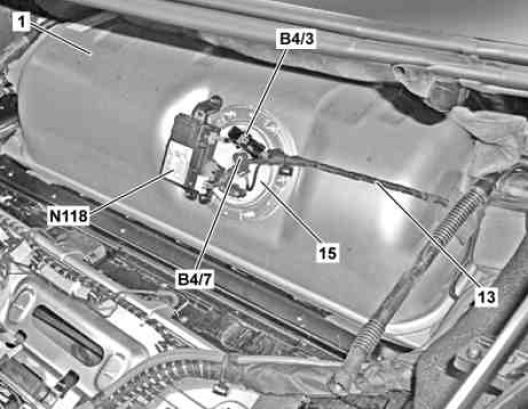

1 Fuel tank
13 Electrical line
15 Fuel filter

B4/3 Fuel tank pressure sensor
B4/7 Fuel pressure sensor
N118 Fuel pump control unit

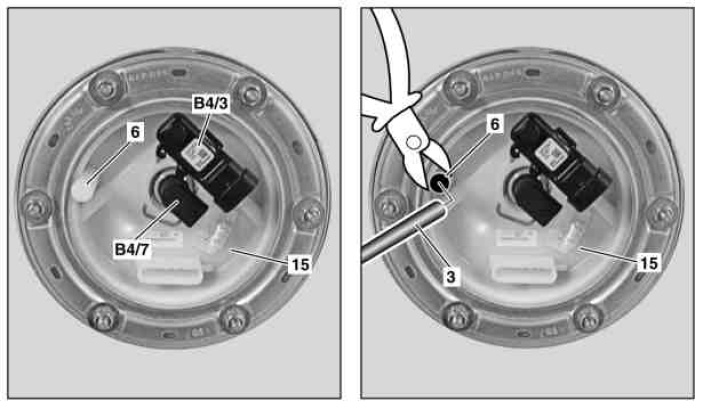

3 Suction hose
6 Fitting
15 Fuel filter

B4/3 Fuel tank pressure sensor
B4/7 Fuel pressure sensor
