Evaporative Emission Control Canister: Service and Repair

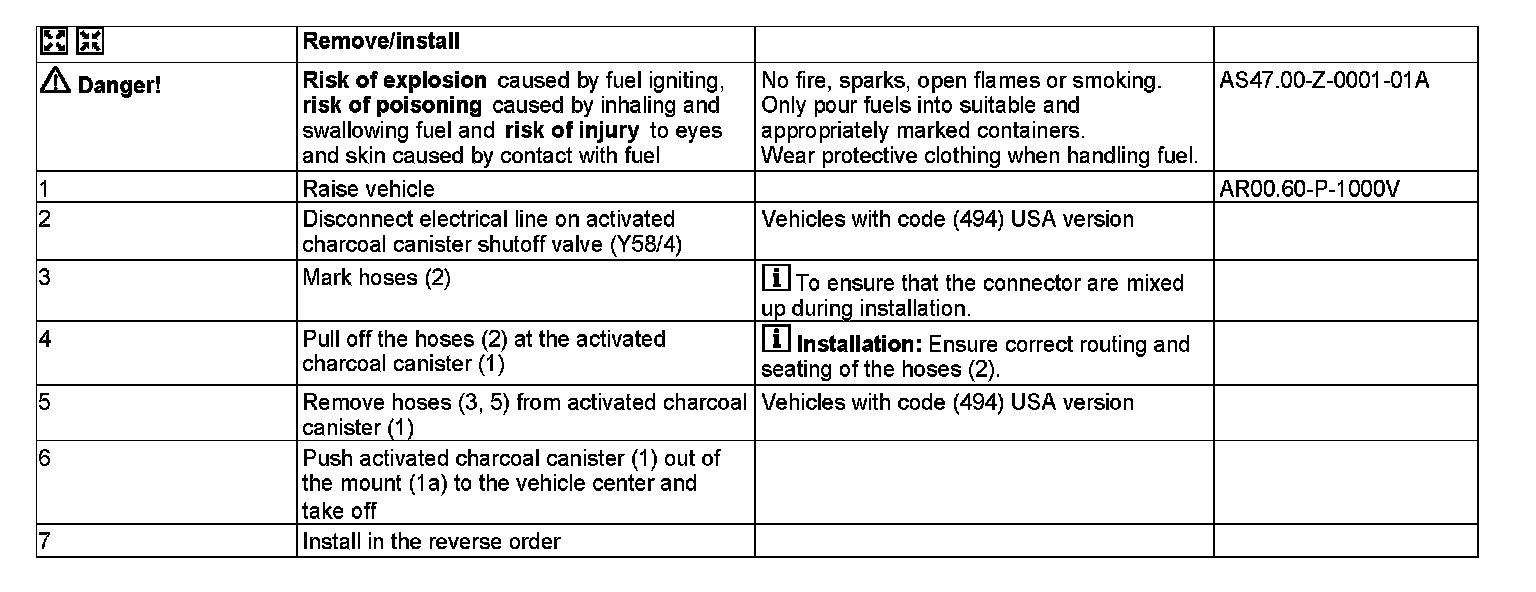

AR47.30-P-8212W Remove/ Install Activated Charcoal Canister
MODEL 172 with ENGINE 152, 271.8, 276

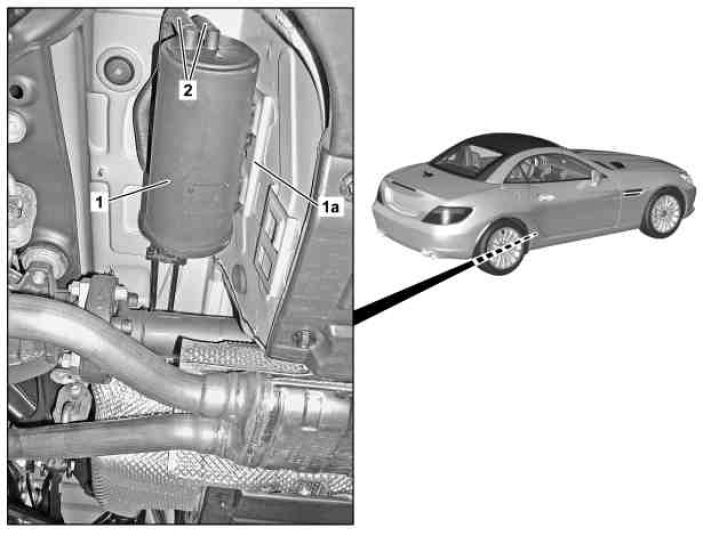

Vehicle without code (494) USA version

1 Activated charcoal canister
1a Support
2 Hoses

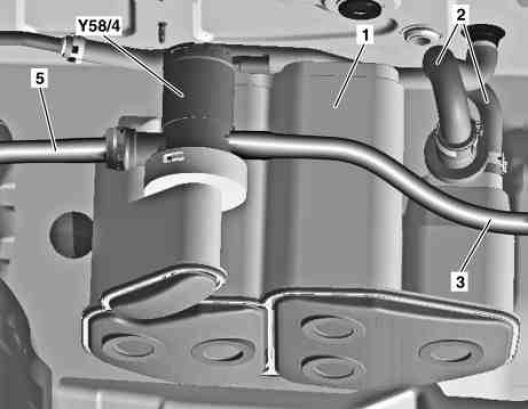

Vehicle with code (494) USA version

1 Activated charcoal canister
2 Hoses
3 Hose
5 Cable

Y58/4 Activated charcoal filter shutoff valve
