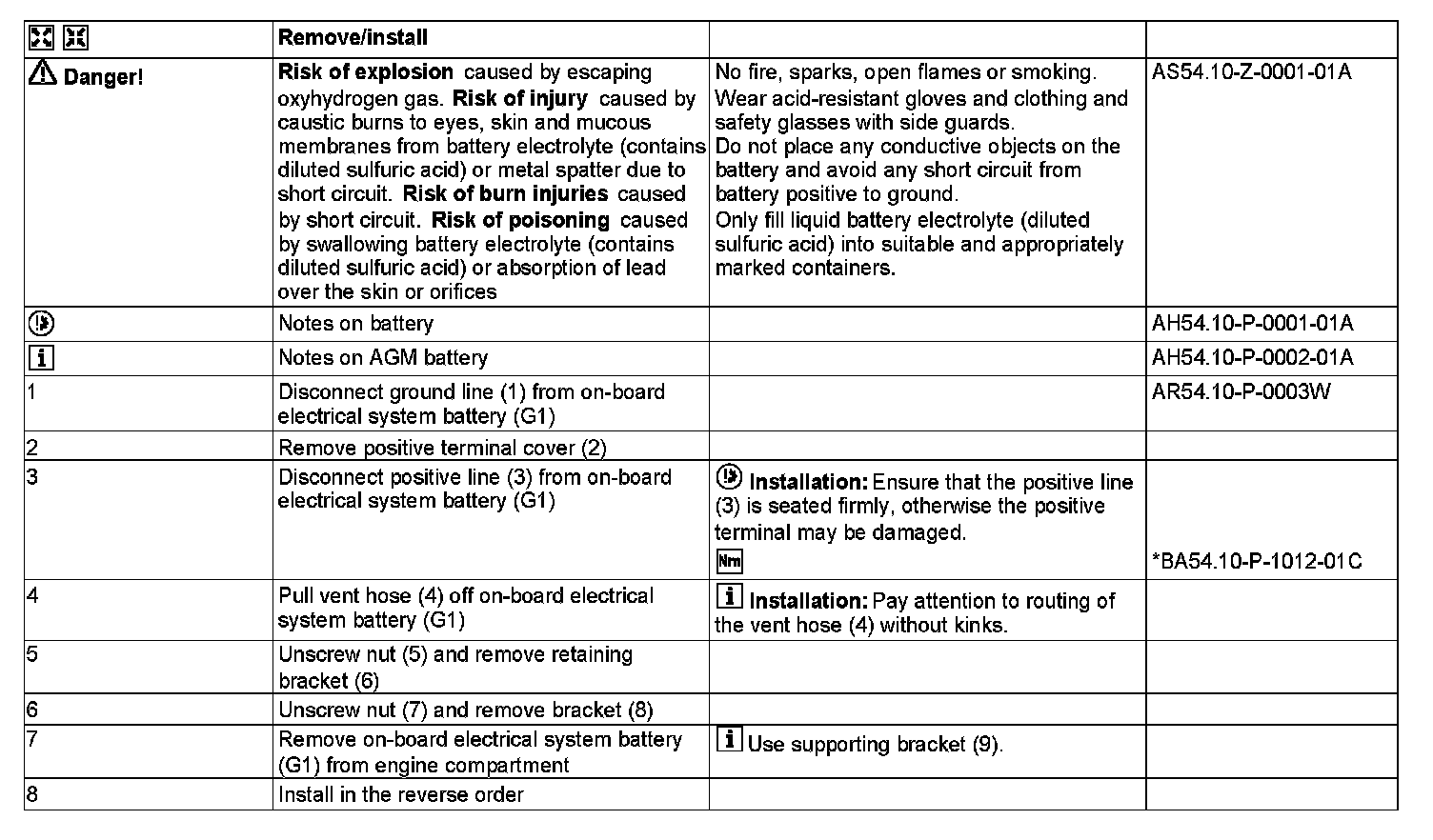

AR54.10-P-0005W Remove/Install Battery

AR54.10-P-0005W Remove/Install Battery
MODEL 172

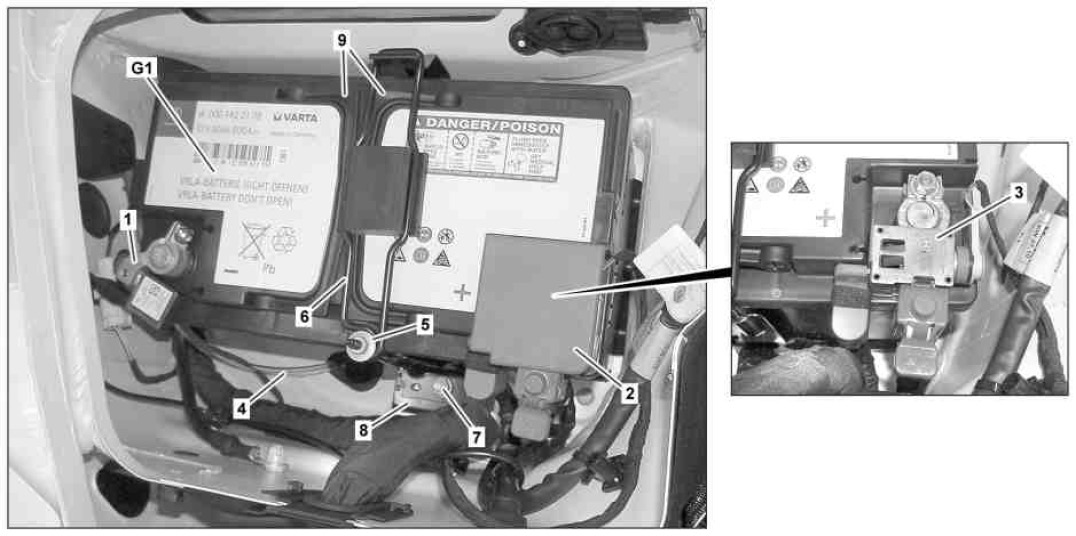

1 Ground cable
2 Cover for positive terminal
3 Positive line
4 Venting hose
5 Nut
6 Retaining clip
7 Nut
8 Bracket
9 Supporting bracket
G1 On-board electrical system battery
