AR54.15-P-1256-01W Loosen, Secure Fuse Box

AR54.15-P-1256-01W Loosen, Secure Fuse Box

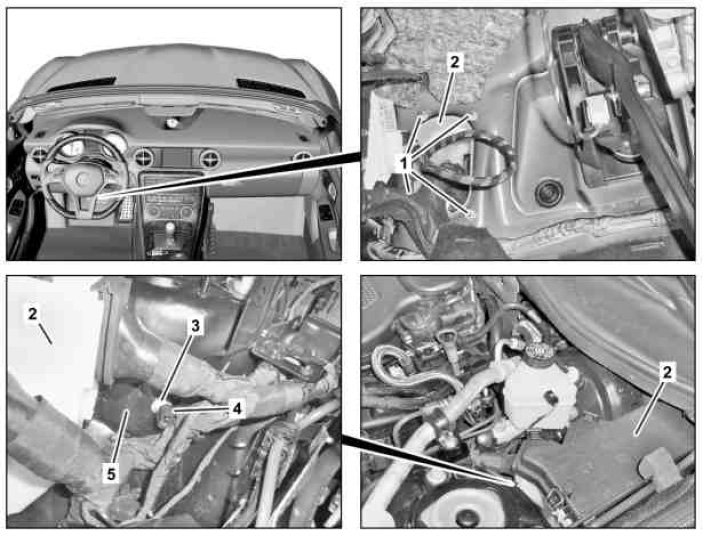

1 Unscrew nuts (1) from fuse box (2).
2 Detach bracket (5) from fuse box (2), for this purpose unclip line holder (4) and unscrew nut (3).
3 Pull fuse box (2) out of bulkhead.
4 Install in the reverse order.
