AP40.10-P-4050V Remove/install
wheels
, rotate if necessary

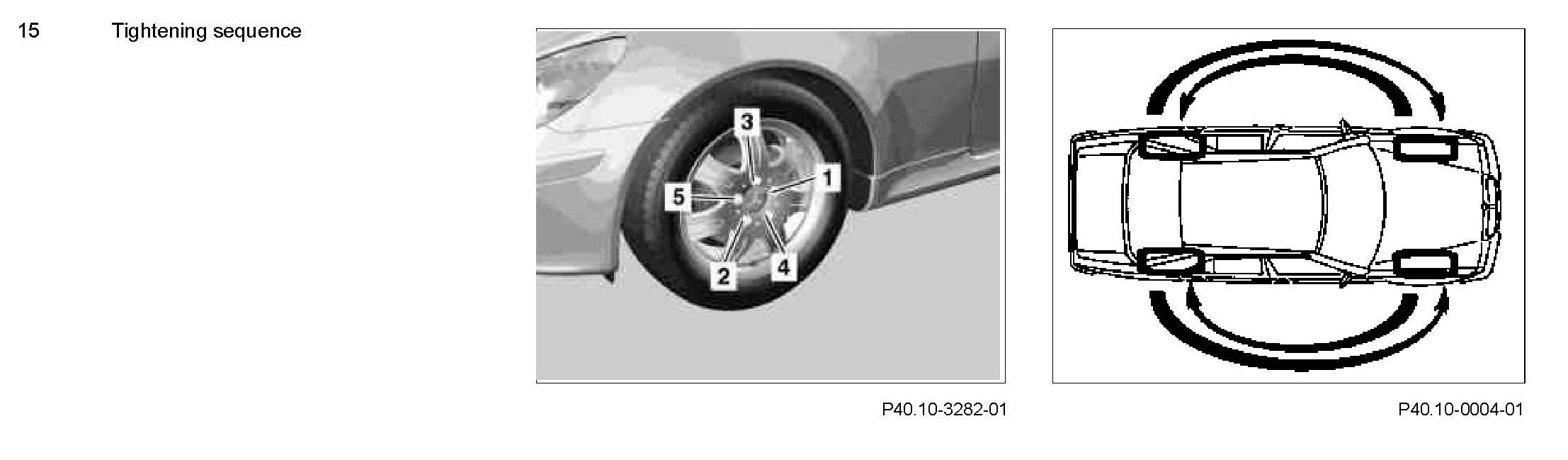

Component Identification:

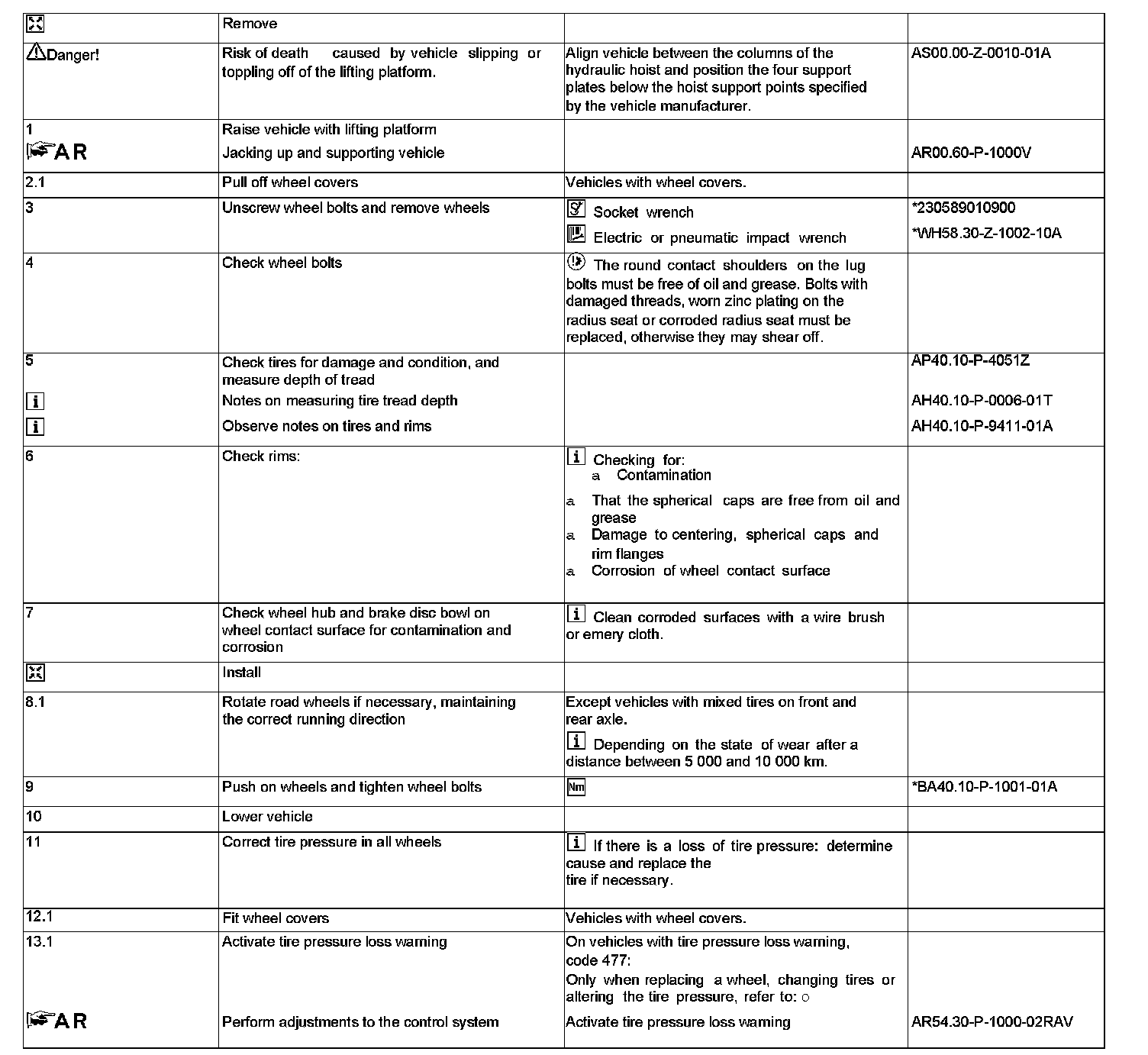

Steps 1 - 13.1:

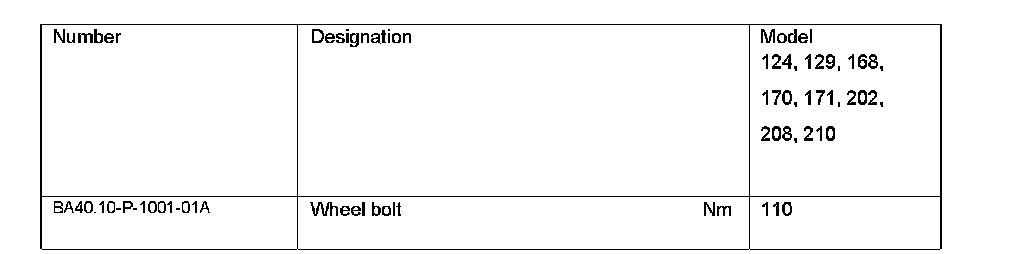

Wheel Bolt:

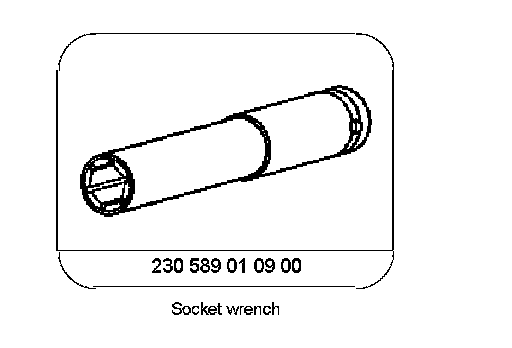

Special Tools:

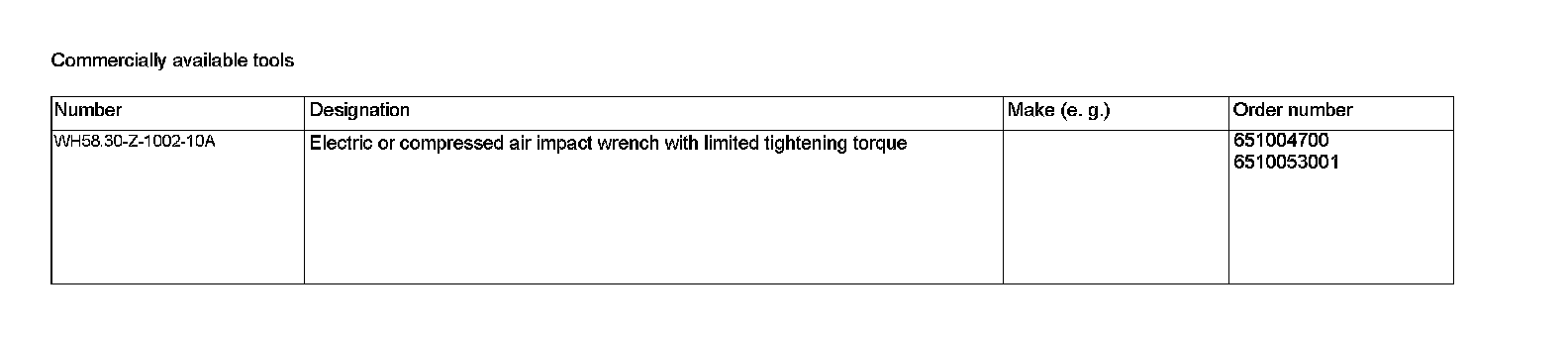

Commercially Available Tools:
