AR00.60-P-1000V Lift/Jack Up Vehicle
AR00.60-P-1000V Lift/Jack Up Vehicle
AR00.60-P-1000V Jacking up and supporting vehicle

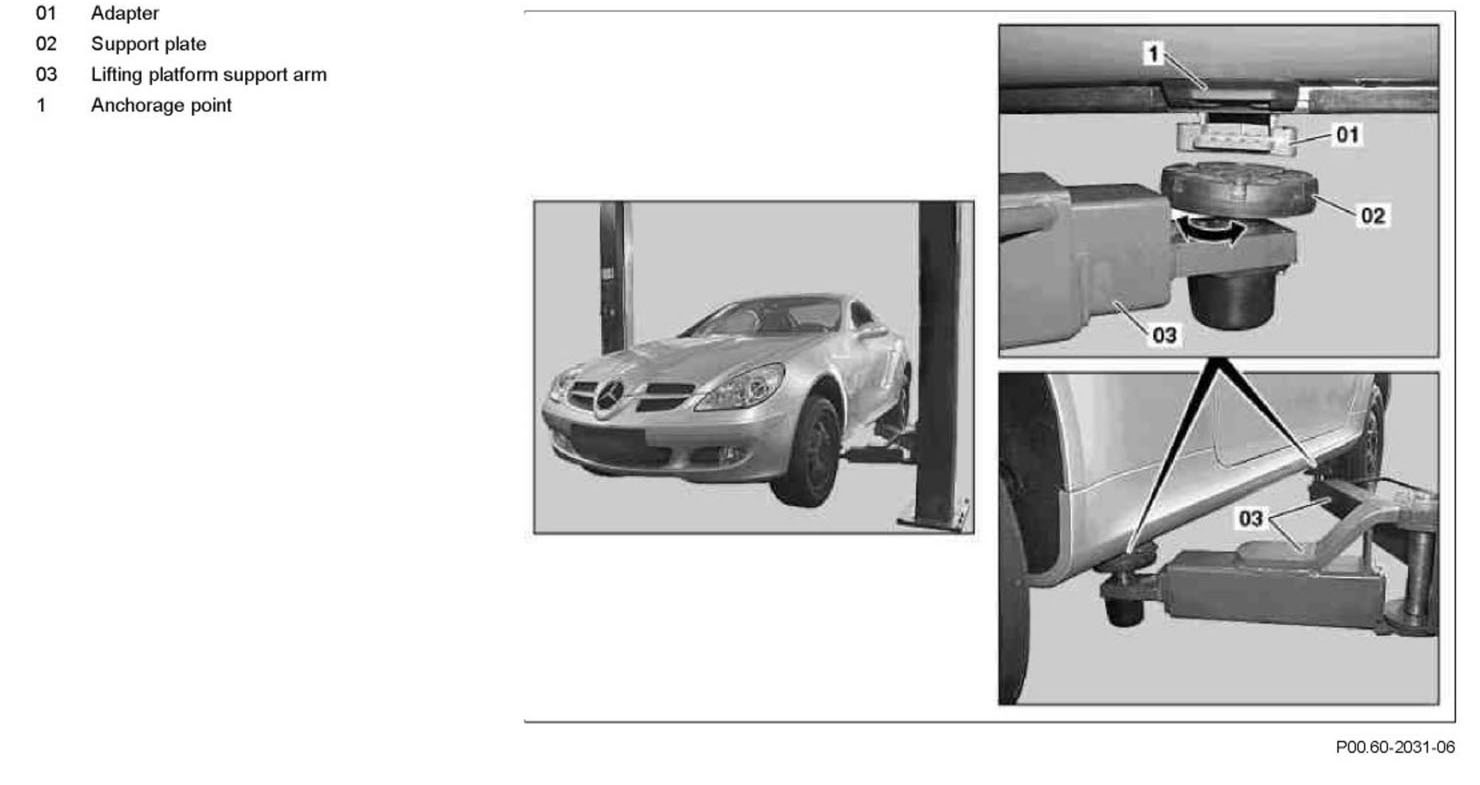

Component Identification:

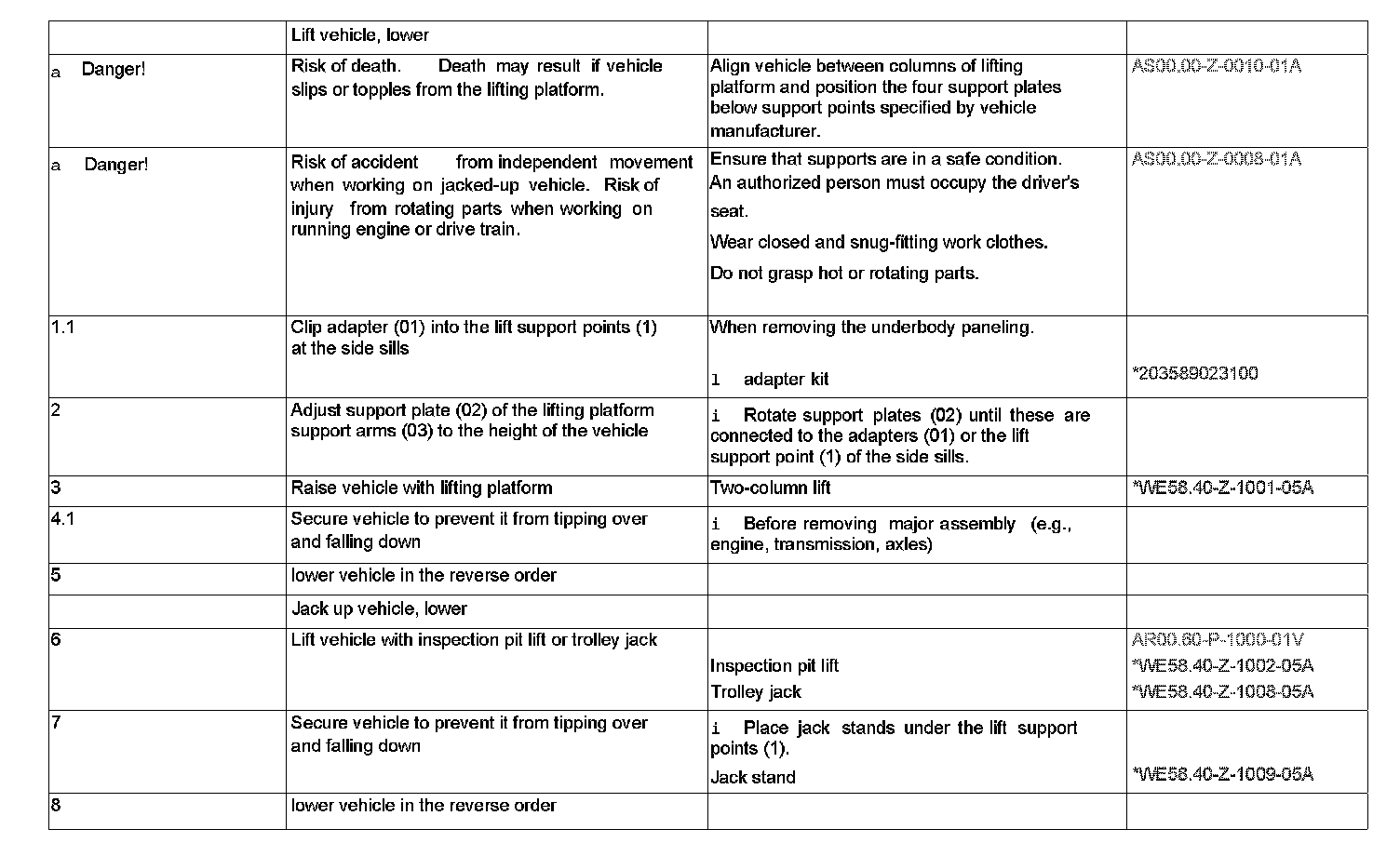

Steps 1 - 8:

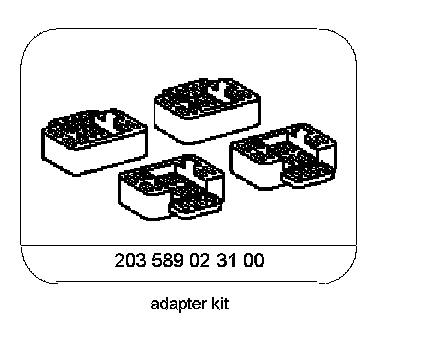

Special Tools:

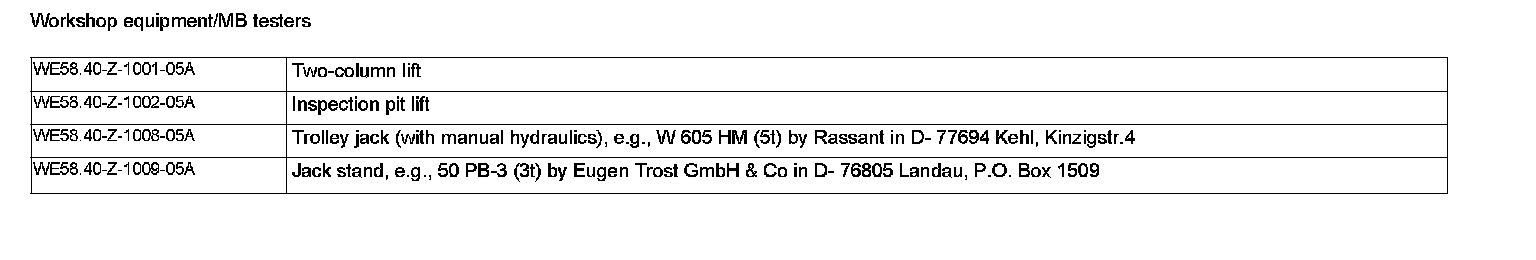

Workshop Equipment/MB Testers:
